Overview

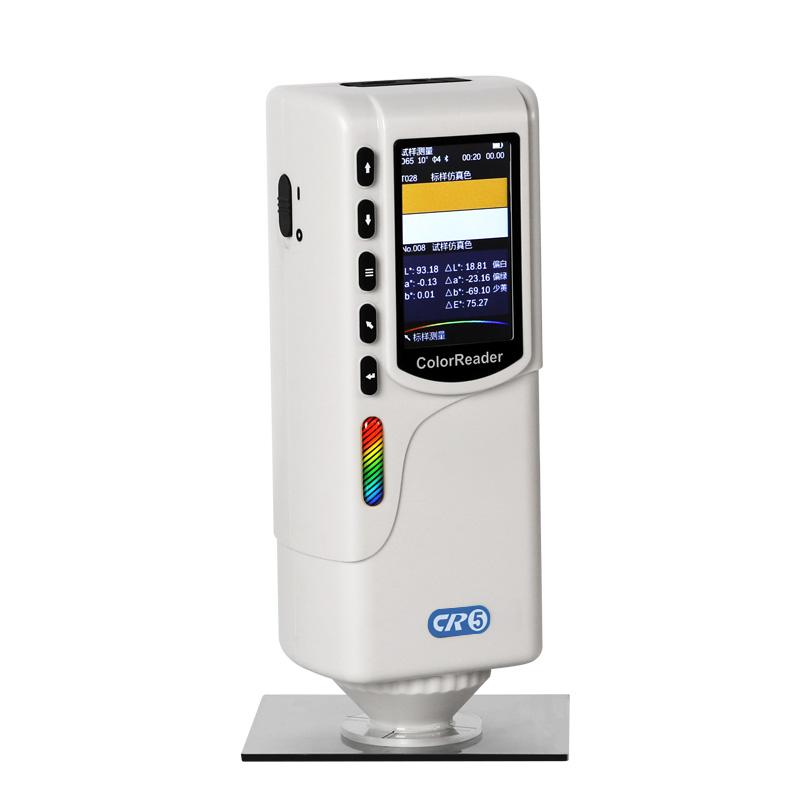

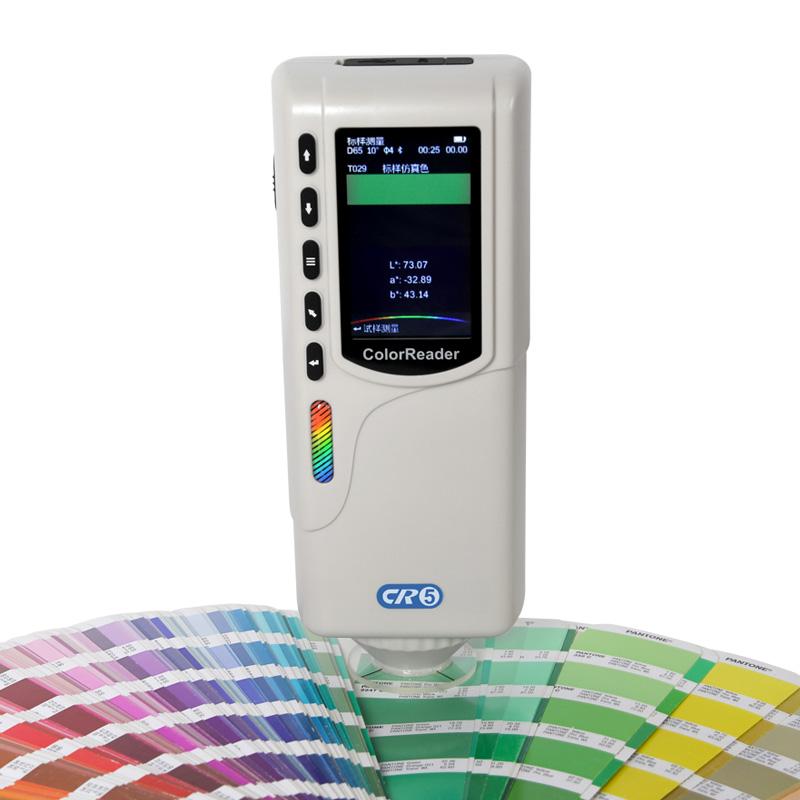

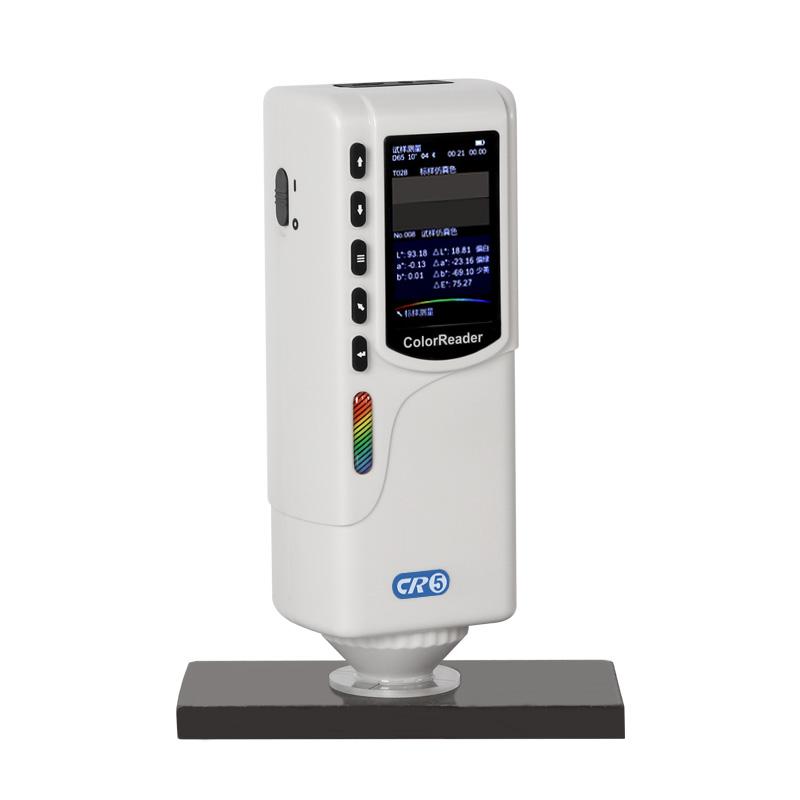

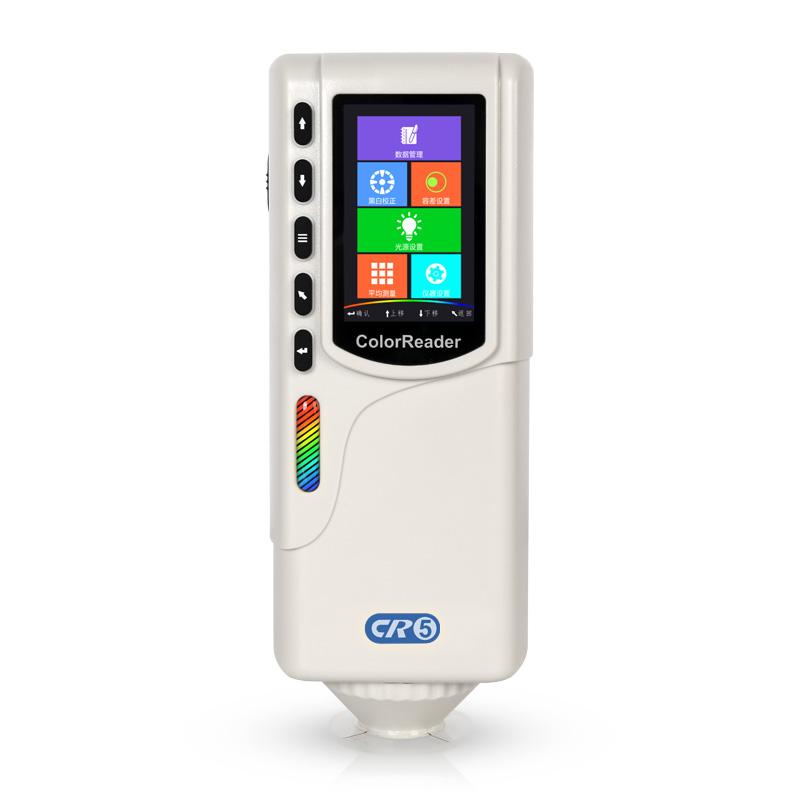

Color difference CR5 (Industrial Premium) is an innovative color measurement tool from the 3nh brand that integrates color recognition, reading, Color Chart retrieval and color difference evaluation. It is portable and seamlessly connected to mobile devices via Bluetooth, suitable for a variety of industrial scenarios, reflecting technical strength and professionalism.
Features
1. The instrument has a data search function
2. Automatic calibration, equipped with black and white manual calibration function
3. The miniature whiteboard is separated from the instrument to ensure the weathering resistance and erasability of the whiteboard
4. Equipped with Fasten Dust Cover and Environmental Encasement Bag, Portable and Easy to Use
5. Long battery life, USB charging, support thousands of measurements
6. Both the instrument and the mobile phone display screen have true color synchronous Color simulation function
7. Color measurement, support Delta E color difference display and tolerance settings
8. Create a personal color database in the cloud, no need to carry heavy Color Charts
9. Connect the mobile app to retrieve popular colors and automatically match international popular colors
10. Inter-instrument Agreement between the same series of instruments is small, and Color database sharing is supported
Principle
Color difference CR5 uses 8 °/d illumination and integrating sphere structure. It uses full Light spectrum LED Illuminant and filter spectroscopy technology to capture Light spectrum data in the 400~ 700nm Wavelength range through CMOS sensors. It measures the Color parameters of objects under different Illuminants, such as L * a * b, L * C * H, etc., and calculates color difference through built-in algorithms to realize color recognition and evaluation.
Applications
Industrial color measurement, color difference evaluation, Color Chart search, popular color search
Standards
CIE No.15、GB/T 3978
Steps
1. Automatic calibration or manual calibration
2. Connect the mobile app via Bluetooth
3. Measurement mode and parameter selection
4. Measured objects and measurements
5. View chromatic values, color difference results and pass/fail cues
6. Data storage, retrieval and sharing using APP
Notice
It is recommended to perform manual calibration from time to time to ensure the accuracy of the instrument
• Avoid operating in condensation or Humidity environments
• Keep the environment drying during storage to prevent whiteboard contamination
• Use the original charging device for battery charging
• Ensure accurate positioning of light spots during measurement
