Overview
ColorReader color difference treasure CR3 is developed by 3nh using a professional color Sensor combined with a performance-rich APP application. It is specially set up with multi-function "smart buttons" and professional non-contact automatic whiteboard verification to realize the two-in-one combination of miniature color difference meter and mobile phone color difference treasure. It is often used in color difference quality control in plastic electronics, paints coatings, Spinning & weaving clothing printing and dyeing, ceramics and other industries. Color difference treasure CR3 is small in size and easy to carry. After being wirelessly connected to mobile devices, in addition to Color measurement and Color Chart recognition search, it can also carry out a variety of function expansion. You can use it anytime, anywhere to capture color inspiration.
Features
1. Instant and accurate color measurement: Repeatability is less than or equal to 0.05, display accuracy is 0.01, just one click can provide accurate color measurement.
2. Non-contact Automatic calibration: Adopt professional non-contact automatic black and white board calibration technology to avoid the dirt in the measurement process being directly transferred to the whiteboard and ensure the long-term accuracy of the whiteboard.
3. Multifunctional "smart button": The instrument comes with its own "smart button", which can independently complete measurement function settings or test data review without connecting mobile phones and computers.
4. Specialized integrating sphere dual optical path design: Advanced integrating sphere coatings, dual optical path sensors and full Light spectrum Illuminants are used to ensure the Stability and accuracy of measurement results.
5. Lightweight and portable: easily fit in your pocket and carry it around.
6. Rechargeable lithium battery: Type-c interface, which can be continuously tested 12,000 times on a single charge.
7. Higher quality: With industrial-grade real-time processing MCU, Bluetooth interface 5.0 transmission is more stable and reliable.
8. Diversified data display modes: With the APP, the sample chromatic value, color difference value/graph, qualified/unqualified results, Color simulation, Color bias, reflectance and other data can be visually displayed.
9. Portable massive Color Chart database: APP synchronizes mass storage, can quickly check color data, analyze and compare, and can establish a private color database in the cloud.
Principle
Color difference treasure CR3 adopts 8 °/d illumination mode, integrating sphere size φ 20mm, Full Light spectrum LED Illuminant, filter splitter, CMOS dual optical path sensor, measurement Wavelength range 400~ 700nm, light-containing mode SCI, Stability and accuracy of measurement results are ensured through professional integrating sphere dual optical path design.
Applications
Plastic electronics, paints, Spinning & weaving garment printing and dyeing, ceramics
Standards
CIE No.15、GB/T 3978
Steps
1. Connect mobile app or computer software.
2. Use the "smart button" that comes with the instrument to set the measurement function or check the test data.
3. Accurate color measurement can be made with one click.

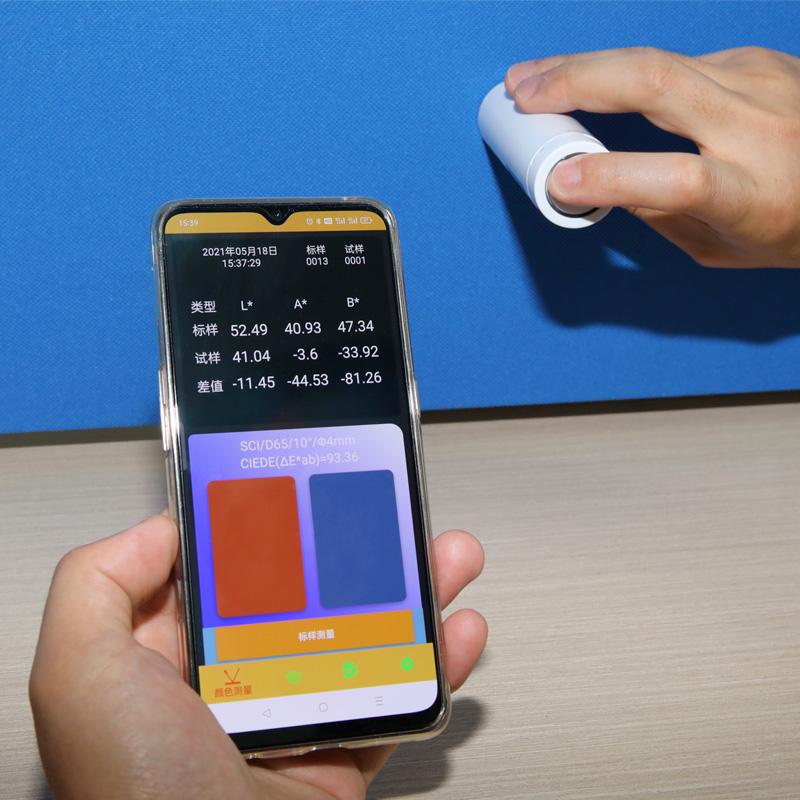

4. View sample chromatic value, color difference value/graph, qualified/unqualified results, Color simulation, Color bias, reflectance and other data through the APP.
5. Use the portable massive Color Chart database to quickly search, analyze and compare color data.
Notice
• Operating environment: 0~ 40 ℃, 0~ 85% RH (no condensation).
Storage environment: -20~ 50 ℃, 0~ 85% RH (no condensation).
• Altitude: less than 2000m.
• Whiteboard calibration adopts non-contact automatic calibration to avoid the transmission of dirt.
• Repeatability correction before measurement.
• Charge with Type C USB port to ensure sufficient power supply.
