Overview

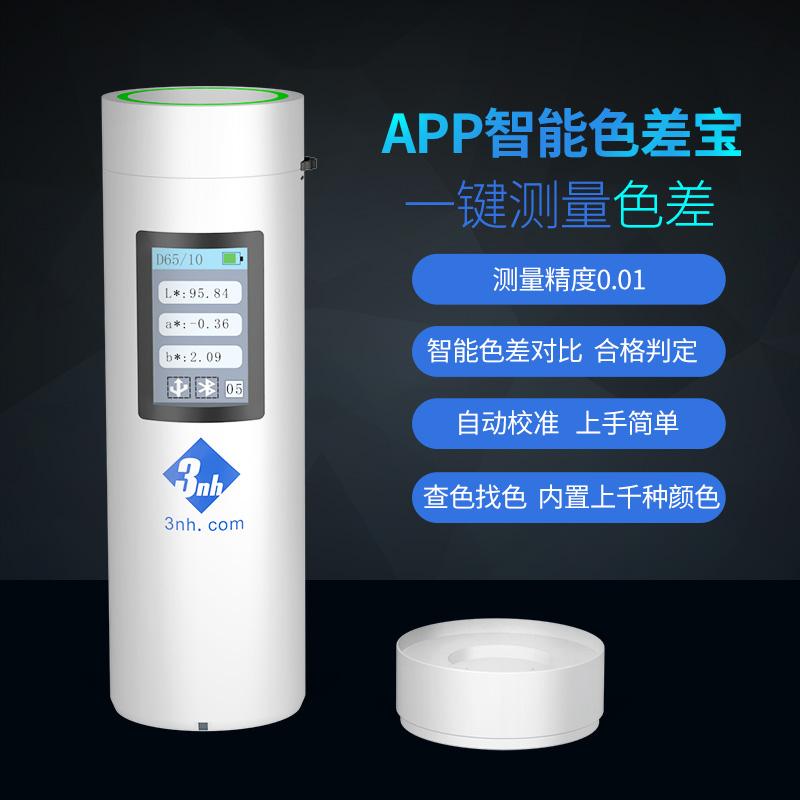

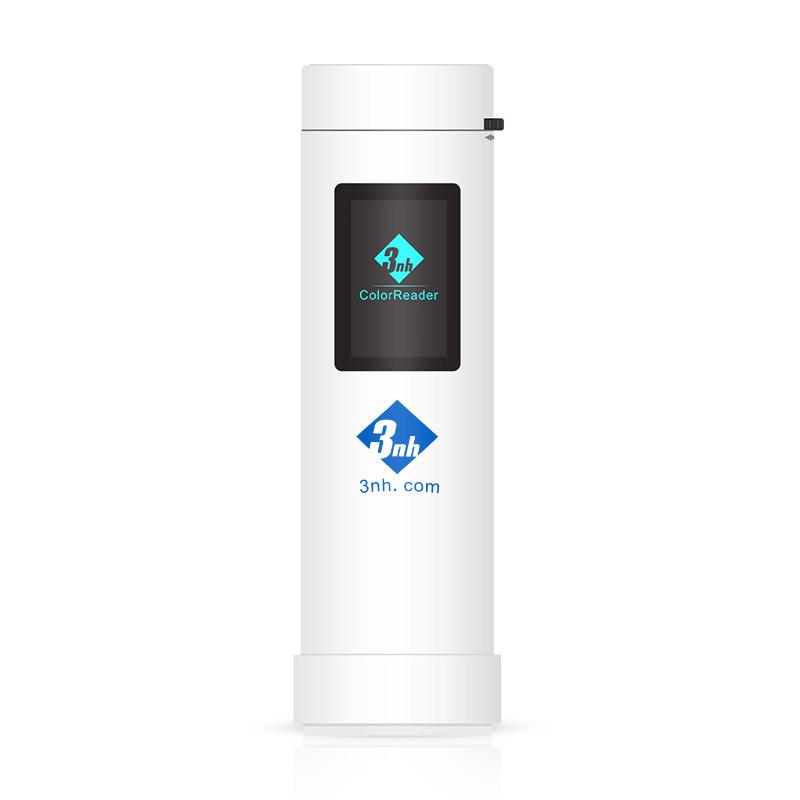

ColorReader color difference treasure CR2 is a product developed by 3nh using a combination of professional color Sensor and rich performance APP applications. It is specially set up with multi-function "smart buttons" and professional non-contact automatic whiteboard verification, which realizes the two-in-one combination of miniature color difference meter and mobile phone color difference treasure. It is often used in color difference quality control in plastic electronics, paints coatings, Spinning & weaving clothing printing and dyeing, ceramics and other industries. Color difference treasure CR2 is small in size and easy to carry. After being wirelessly connected to mobile devices, in addition to Color measurement and Color Chart recognition search, it can also carry out a variety of function expansion. Users can use it anytime, anywhere to capture color inspiration.
Features
1. Instant and accurate color measurement: Repeatability is less than or equal to 0.08, display accuracy is 0.01, just one click can provide accurate color measurement.
2. Non-contact Automatic calibration: Adopt professional non-contact automatic black and white board calibration technology to avoid the dirt in the measurement process being directly transferred to the whiteboard and ensure the long-term accuracy of the whiteboard.

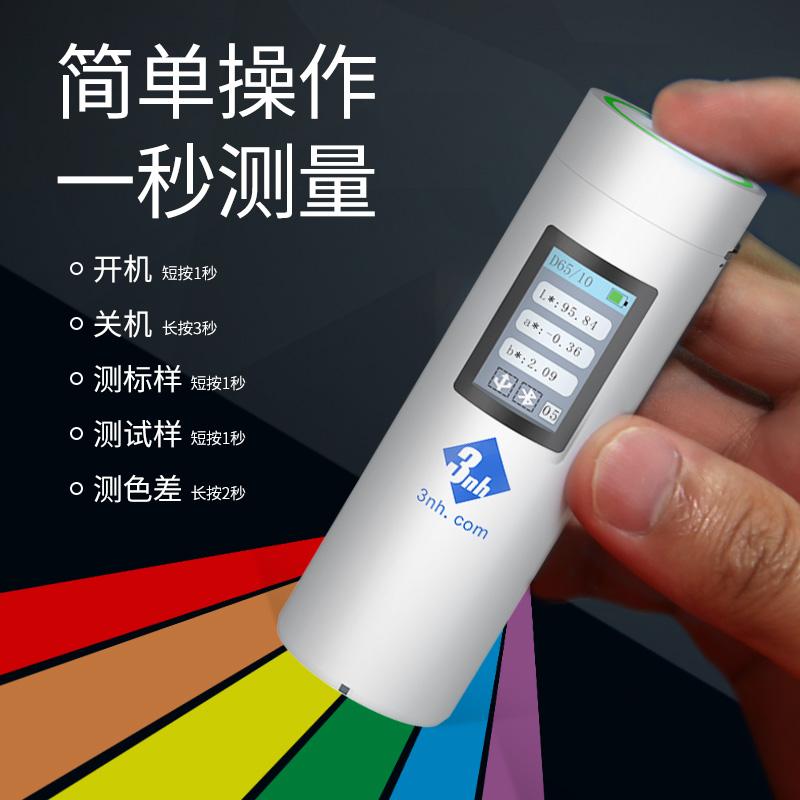

3. Multifunctional "smart button": The "smart button" that comes with the instrument can independently complete the measurement function setting or test data review. There is no need to connect mobile phones and computers, and a single machine can realize all the functions of the color difference meter.
4. Specialized integrating sphere dual optical path design: Professional advanced integrating sphere coatings, dual optical path sensors and full Light spectrum Illuminants ensure the Stability and accuracy of measurement results.

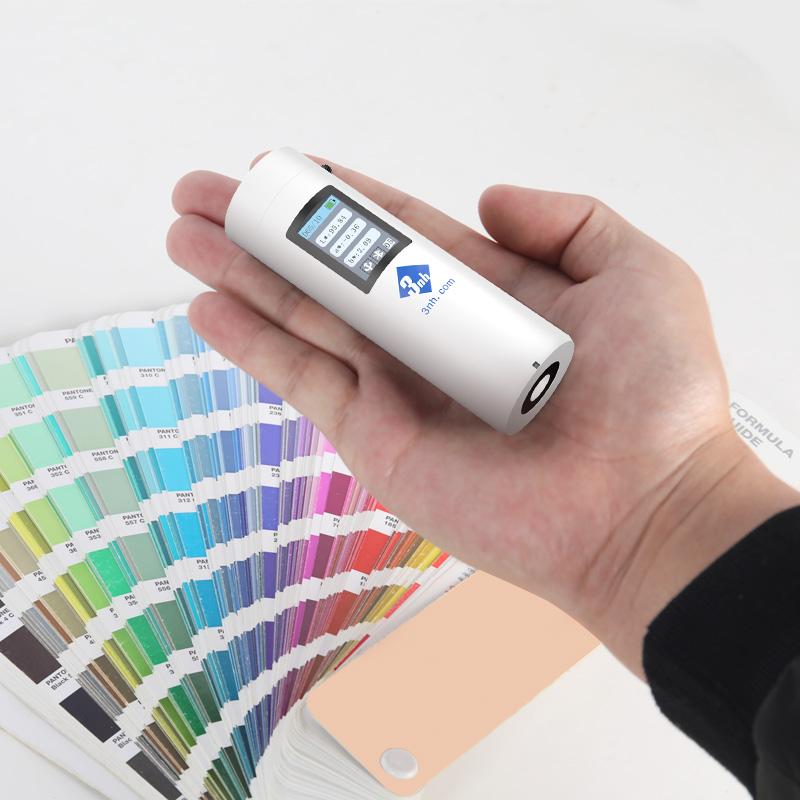

5. Lightweight and portable: easy to put into the pocket, carry with you, worry-free measurement.
6. Rechargeable lithium battery: Type-c interface, which can be continuously tested 12,000 times on a single charge.
7. Higher quality: With industrial-grade real-time processing MCU, Bluetooth interface 5.0 transmission is more stable and reliable.

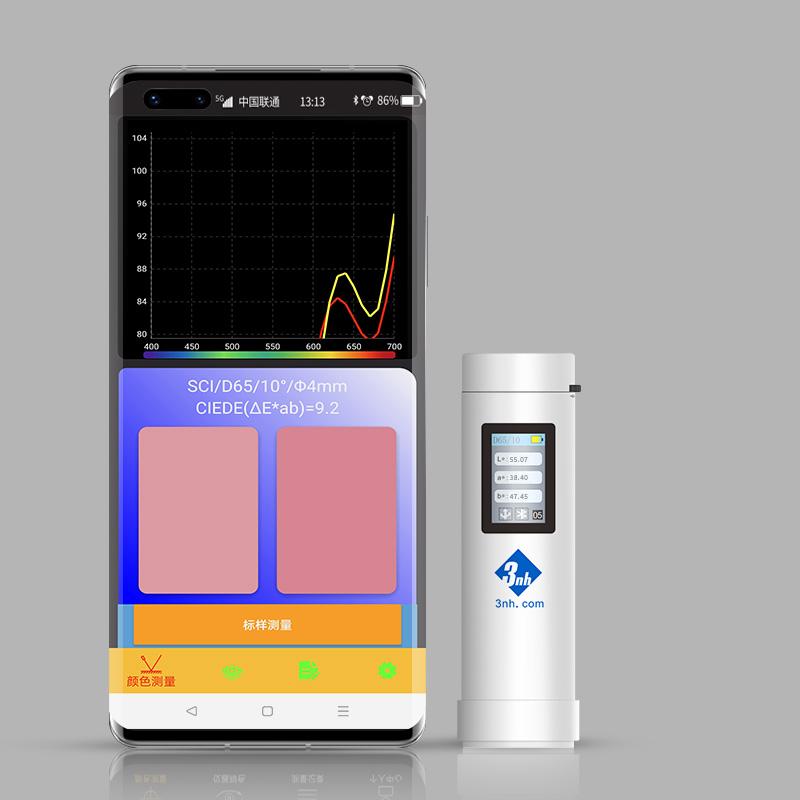

8. Diversified data display modes: With the APP, the sample chromatic value, color difference value/graph, qualified/unqualified results, Color simulation, Color bias, reflectance and other data can be visually displayed.
9. Portable massive Color Chart database: APP synchronizes mass storage, which can quickly search, analyze and compare color data, and establish a private color database in the cloud.
Principle
Color difference CR2 uses a professional color Sensor combined with APP applications to perform spectroscopic measurement in the 400~ 700nm Wavelength range through integrating sphere dual light path design, full Light spectrum LED Illuminant and CMOS dual light path sensor. The instrument uses non-contact automatic whiteboard calibration technology to ensure the accuracy of measurement benchmarks, and cooperates with mobile apps to realize various Color space and Color difference formula calculations to complete accurate color data collection and analysis.
Applications
Plastic electronics, paints, Spinning & weaving garment printing and dyeing, ceramics
Standards
National Measurement
Steps
1. Independently complete the measurement function setting or test data review through the instrument's own "smart button".
2. Connect the mobile app or computer software for Color measurement, Color Chart recognition and search and various function expansions.
3. Use non-contact automatic whiteboard calibration to ensure measurement accuracy.
4. View sample chromatic value, color difference value/graph, qualified/unqualified results, Color simulation, Color bias, reflectance and other data through the APP.
5. Utilize the cloud-based private color database for color data review, analysis and comparison.
Notice
Operating environment: 0~ 40 ℃, 0~ 85% RH (no condensation), altitude below 2000m.
Storage environment: -20~ 50 ℃, 0~ 85% RH (no condensation).
• Illuminant life is 5 years greater than 3 million measurements.
• The measurement diameter is φ 8mm.
• Make sure the battery is fully charged before use, and it can be tested 12,000 times continuously on a single charge.
