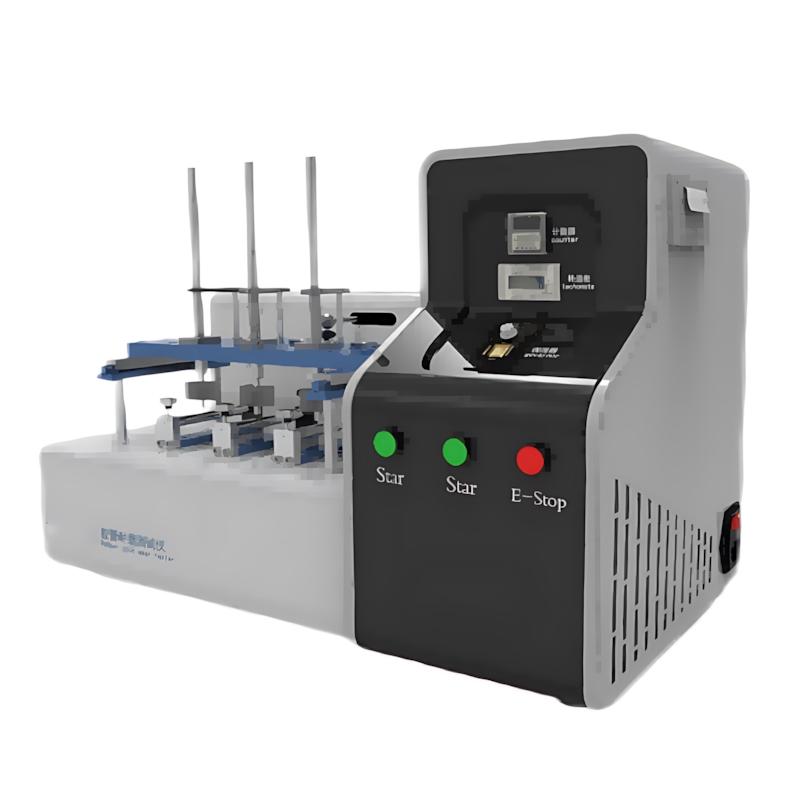

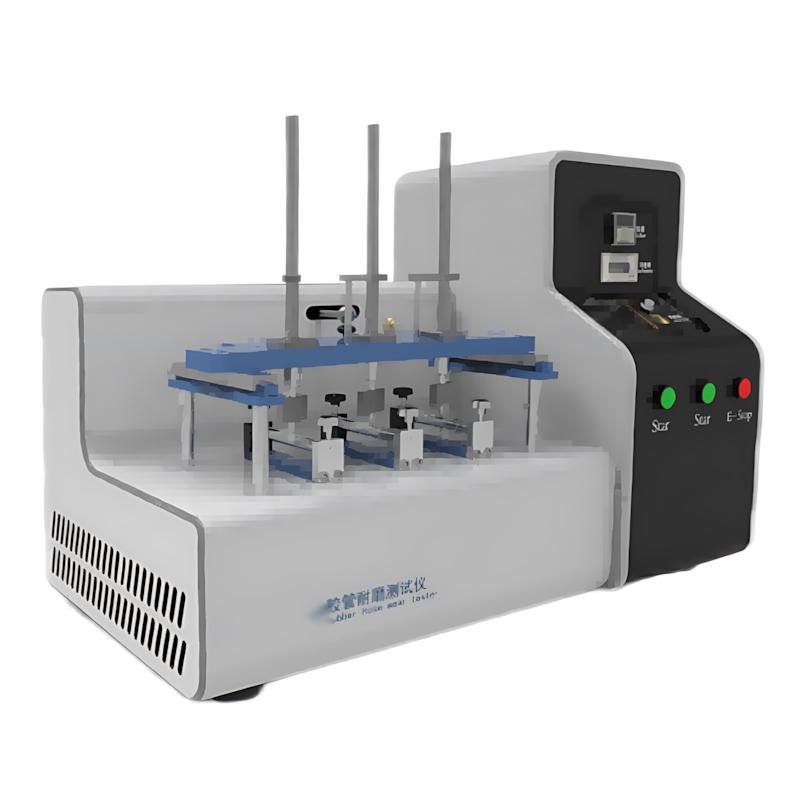

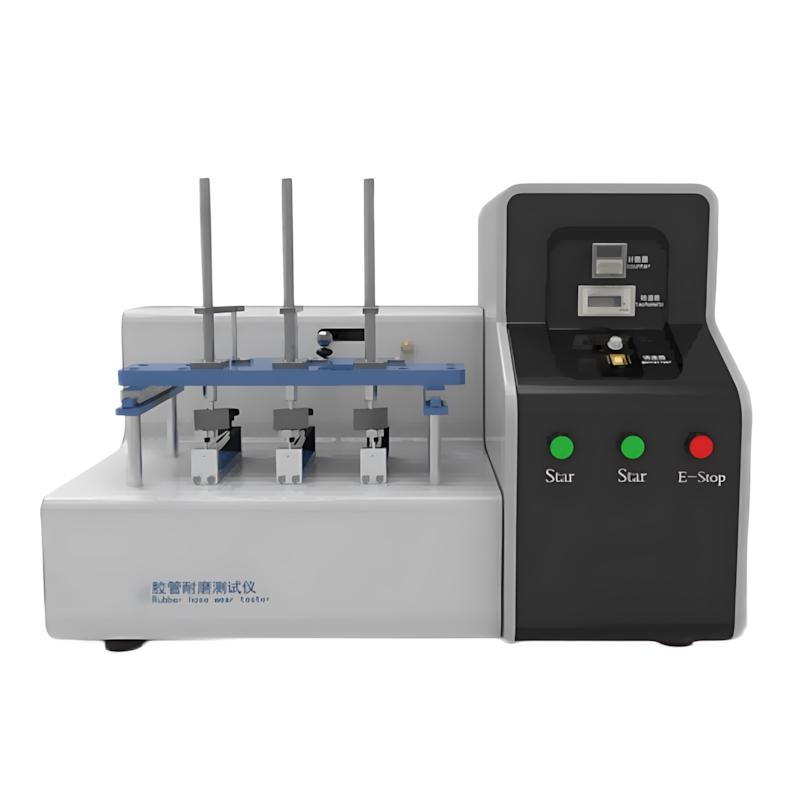

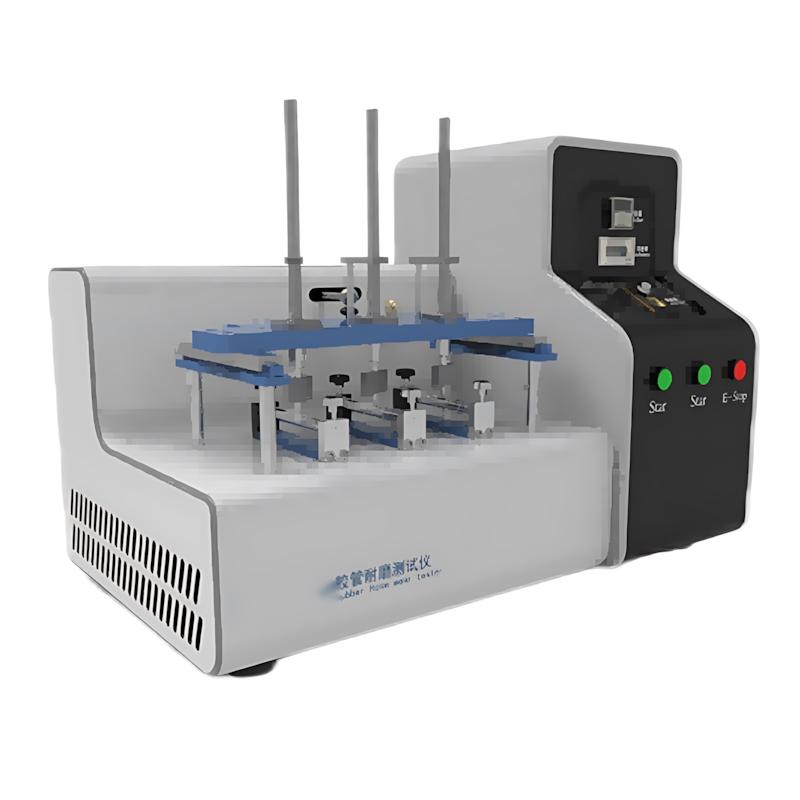

HUITAO CSI-J00 hose wear resistance testing device

Name: HUITAO CSI-J00 hose wear resistance testing device
Brand: huitao
SKU: NB035887

Please contact customer service

Three sets of tests can be carried out at the same time, applying 50-100 bovine static pressure, and supporting up to 999999 cycles of testing. It is suitable for the determination of wear resistance performance of various pipes and plates and meets the requirements of international standards.

Model

CSI-J00

Get Quote

Category : Abrasion Tester

Brand : huitao

SKU : NB035887

Service :The delivery and service By NBCLab.Com

Overview

HUITAO CSI-J00 hose wear resistance testing device is mainly used for the measurement of wear resistance performance of hydraulic hoses with fabric or steel wire reinforcement, smooth and flat surface and other similar hoses. The equipment meets the requirements of relevant national standards and is an important testing instrument for rubber hose Manufacturers, R & D institutions and Quality control units.

Features

1. Suitable for a variety of hose wear performance testing; 2. Support three groups or a group of tests at the same time; 3. Can be set up to 999999 cycles; 4. Provide two kinds of static pressure selection of 50 cattle and 100 cattle; 5. Compatible with a variety of inner diameter specimens.

Principle

The device applies a set static pressure (50 Nm or 100 Nm) to the surface of the specimen and performs a friction test under a specific number of cycles to determine the wear resistance performance of the outer coating of the hose.

Applications

Manufacturers, R & D institutions, Quality control units

Standards

GB/T12721-2007, ISO6945:1991, Determination of wear resistance performance of rubber hoses/outer coatings

Steps

1. Prepare specimens with an inner diameter of 5 to 51 mm and a length of 150 mm; 2. Select to apply static pressure (50 or 100 Nm); 3. Set the number of cycles (up to 999999); 4. Start the equipment for testing; 5. Record the test results.

Notice

* Power supply voltage is AC 220 volts; * Specimen specifications must meet requirements; * Check Equipment Stability before operation; * Regular maintenance to ensure Test accuracy; * Follow relevant safety operating procedures.

Dimension
900*520*680mm
weight
About 150 kilograms
Equipped with power supply
AC 220 volts, 5 amps
Number of test groups
Three groups or groups
Specimen specification
Inner diameter 5, 8, 10, 13, 16, 19, 22, 25, 32, 38, 45, 51mm, length 150mm
applied static pressure
50 cattle, 100 cattle
Cycle count setting
Up to 999999 times
