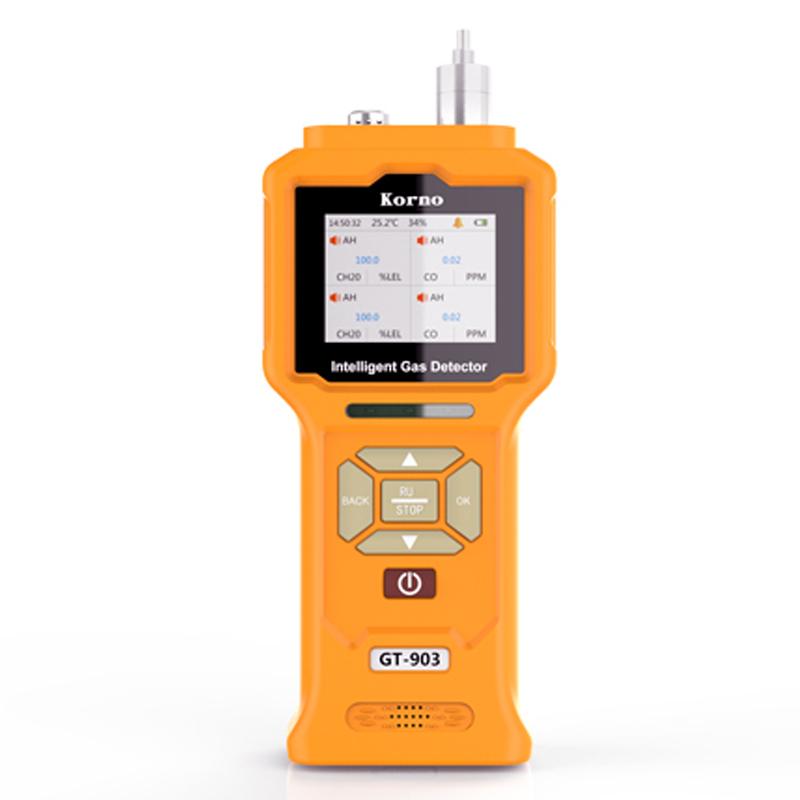

KORNO GT903-Butanone C4H8O (MEK) -Y TVOC Detector, Pump Suction PID Photoion Sensor

Name: KORNO GT903-Butanone C4H8O (MEK) -Y TVOC Detector, Pump Suction PID Photoion Sensor
Brand: KORNO
SKU: NB036151
Price: 1513.0 USD
Availability: InStock

$ 1513.00Ex works

Pump-suction sampling and PID photoion technology, detection accuracy of +/- 3%, Response Time ≤ 20 seconds, IP65 Protection Rating and explosion-proof certification, support for multi-Sensor expansion and Data storage functions.

Model

GT903-Butanone C4H8O (MEK) -Y

Get Quote

Category : Gas Detector

Brand : KORNO

SKU : NB036151

Service :The delivery and service By NBCLab.Com

Overview

GT-903 Pump Suction Butanone C4H8O (MEK) Gas detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported PID Photoion Gas Sensor and microcontroller technology. It has the characteristics of fast Response Speed, High Measurement Accuracy, Good Stability and Repeatability, and the performance of the whole machine ranks at the domestic professional level. The instrument is dustproof design, equipped with dust Filter, which can be used in various harsh situations.

Features

1. Imported PID Light Ion Gas Sensor and Microcontroller Technology 2. Fast Response, High Measurement accuracy, Stability and Repeatability 3. The performance of the whole machine ranks at the domestic professional level 4. Each parameter can be customized by the user, and the operation is simple 5. Instrument dust design, with dust Filter 6. Supports 1-5 Sensor Extensions 7. Built-in micro air pump, pump suction sampling 8. 120,000 groups of data can be stored, supporting real-time storage and timed storage 9. Historical data can be viewed on the screen 10. Protection Rating IP65, Explosion Proof Mark CNEx16.0537

Principle

Imported PID Photonic Ion Gas Sensor technology is used to perform pump-suction sampling through built-in miniature air pump to detect gas concentration. The sensor response time is ≤ 20s (T90), with High Accuracy and Good Repeatability.

Applications

Various industrial environments, special environments

Standards

GB3836.1-2010 "Explosive environment - Part 1: Equipment - General requirements", GB3836.4-2010 "Explosive environment - Part 4: Equipment protected by intrinsically safe type" i "

Steps

Step 1 Start the instrument 2. Set various parameters as required 3. Select the storage mode (real-time storage or timed storage) 4. Carry out gas concentration detection 5. View real-time or historical data on the screen

Notice

• Ambient Temperature: -30~ 60 ℃ • Environmental humidity: ≤ 95% RH, no condensation • Operating Pressure: -30Kpa~ 100Kpa Powered by a 4000mA rechargeable polymer battery • Instrument Protection Rating is IP65, suitable for harsh situations • Regularly check Sensor performance and calibrated status

Detect gas
Butanone C4H8O (MEK)
Range
0~2ppm
resolution
0.001ppm
Response Time
≤20s(T90)
Linearity
≤±1%
accuracy
≤ +/- 3% (depending on the Sensor)
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤ 20 seconds
Repeatability
≤±1%
gas expansion
Supports 1-5 Sensors
Explosion-proof sign
CNEx16.0537
Protection Rating
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity measurement
Optional accessories, temperature detection Range: -40~ 120℃, Humidity detection Range: 0-100% RH
Sampling method
Pump suction, built-in micro air pump
detection mode
Real-time detection, timing detection can be set
storage mode
Real-time storage and timed storage can be set; 120,000 groups of data can be stored, and historical data can be viewed on the screen
Operating temperature
-30~60℃
relative humidity
≤ 95% RH, non-condensing
Operating Pressure
-30Kpa~100Kpa
Power Supply
4000mA rechargeable polymer battery
Dimension
212*85*70mm
weight
0.45Kg (Net weight of instrument)
execution standard
GB3836.1-2010 "Explosive environment - Part 1: General requirements for equipment", GB3836.4-2010 "Explosive environment - Part 4: Intrinsically safe Type
optional Range
0-2、10、50、100、200、500、1000、2000、5000、6000、10000ppm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
