Overview

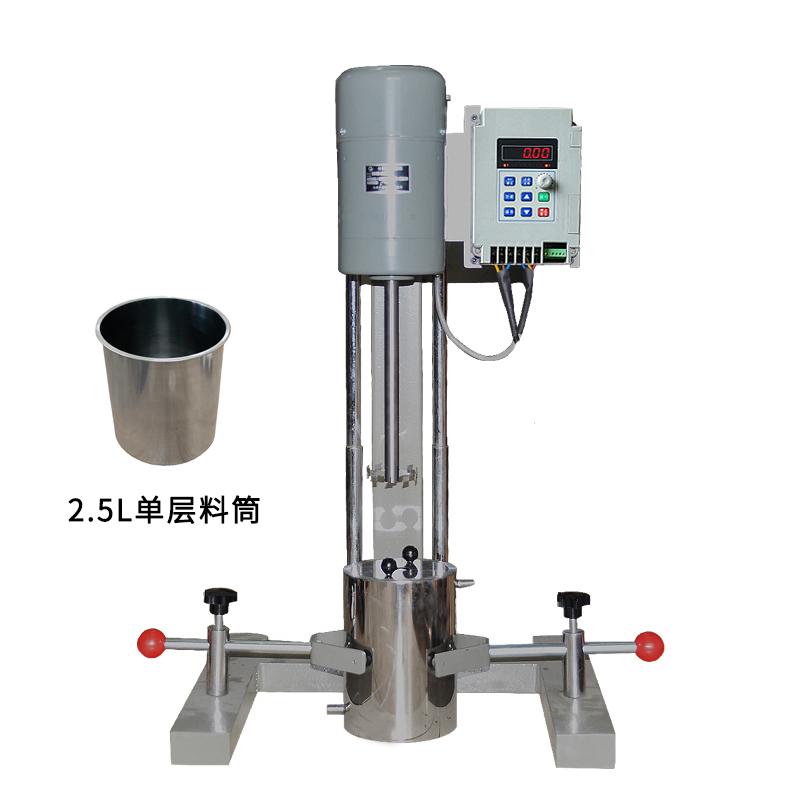

QIWEI GFJ-0.5/2 Disperser (high-speed frequency conversion) adopts frequency conversion controller control, Rotation speed is stable and low noise. The equipment integrates dispersion, grind and stirring functions. It is suitable for paints, inks, coatings and other industries. It can experiment three functions at the same time, save costs and improve experimental efficiency.
Features
1. Adopt frequency conversion controller, Rotation speed is stable, low noise
2. Set dispersion, grinding, mixing function in one
3. With timing function
4. Spring lift, round tube bracket design
5. Optional 5-liter double-decked Mixing Tank
Principle
The dispersion head of GFJ-0.5/2 (high-speed frequency conversion) generates swirl/spin tangential high linear speed under the high-speed drive of the motor, and the material produces strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve efficient mixing, dispersion and homogenization.
Applications
Paints, inks, paints
Steps
1. Install the appropriate impeller or grinding disc
2. Put the material into the Mixing Tank
3. Set the desired Rotation speed and timing time
4. Start the equipment for dispersion, grinding or mixing operations
5. Turn off the equipment and clean it after the operation is completed
Notice
• The maximum processing viscosity shall not exceed 100000mPa.s
The speed range should be controlled between 60 and 8000rpm
• Make sure the equipment is firmly installed before use
• Pay attention to safety protection during operation
• Regularly check the operating status of the equipment
