Overview

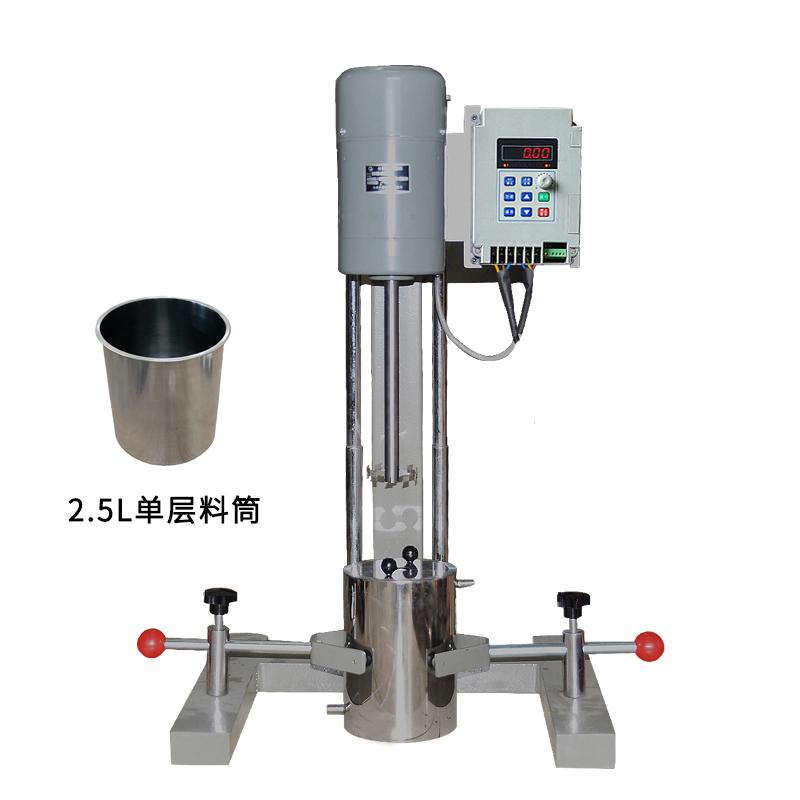

QIWEI GFJ- 0.7/2 Disperser is a high-speed frequency conversion dispersion Grinder, which integrates three functions of stirring, dispersing and grinding, and is suitable for laboratory experiment requirements. The motor power of this equipment is 750W, the viscosity of paint inks is below 10000cp, and the structure is simple. It is composed of a host, a material tank container and a smart motor speed control instrument. It has the characteristics of energy saving and environmental protection, sufficient stirring and low noise.
Features
1. Set stirring, dispersing, grinding three functions in one
2. High-speed frequency conversion design, energy saving and environmental protection
3 smart motor speed controller
4. Stir well and have low noise
5. With timing function
6. Optional 5-liter double-decked Mixing Tank
Principle
Driven by the motor at high speed, the dispersion head generates a swirl/spin tangential high linear velocity, and the material generates strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, thus achieving the effect of efficient mixing, dispersion and homogenization.
Applications
Paints, paints, inks
Steps
1. Connect the power supply 220V 50HZ
2. Select Mixing Tank (1.5L or 2.5L) as required
3. Rotation speed (60~ 8000rpm) set by frequency conversion control instrument
4. Set the timing function
5. Start the device for decentralized operations
6. Use the spring lifting mechanism to adjust the height (Travel 250mm)
Notice
• Applicable paint inks viscosity should be below 10000cp
• Maximum processing viscosity is 100000mPa.s
• Device weight is about 40KG, pay attention to safety when handling
• This equipment has no explosion-proof function and is not suitable for flammable and explosive environments
• Power supply voltage 220V 50HZ before use
