Overview

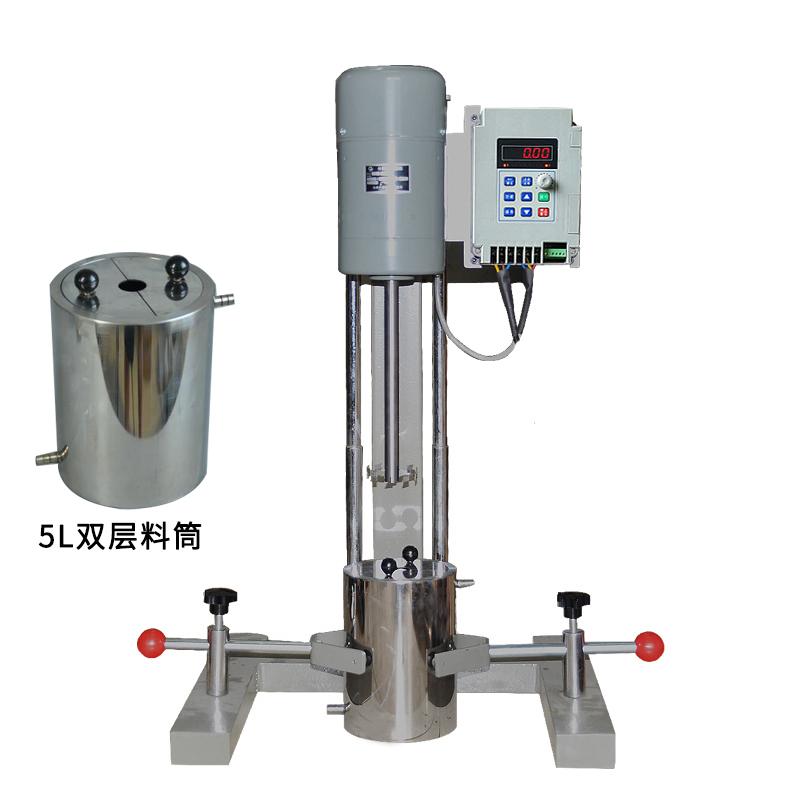

QIWEI GFJ - 0.7/5 L Disperser is a high-speed variable frequency dispersion Grinder, which integrates stirring, dispersing and grinding functions, and is suitable for laboratory experimental requirements. The motor power of this equipment is 750W, which is suitable for paint inks with a viscosity below 10000cp. The structure is simple. It is composed of a host, a material tank container and a smart motor speed control instrument. It has the characteristics of energy saving and environmental protection, sufficient stirring and low noise.
Features
1. Set stirring, dispersion, grinding three functions in one; 2. Motor Power 750W, energy saving and environmental protection; 3. Simple structure, convenient operation; 4. Smart motor speed control instrument, wide speed range; 5. Full mixing, low noise; 6. With timing function; 7. Optional 2.5 liter single layer Mixing Tank.
Principle
Driven by the motor at high speed, the dispersion head generates a swirl/spin tangential high linear velocity, and the material generates strong hydraulic shearing and high-frequency mechanical effects under the action of centrifugal force, withstanding thousands of shears per minute to achieve efficient mixing, dispersion and homogenization.
Applications
Paints, paints, inks
Steps
1. Connect the power supply to ensure that the voltage is 220V 50HZ; 2. Put the material into the Mixing Tank to ensure that the viscosity does not exceed 10000cp; 3. Use the smart motor speed control instrument to set the Rotation speed, the range is 60~ 8000rpm; 4. Start the equipment for stirring, dispersing or grinding operation; 5. Use the timing function to control the running time; 6. Turn off the power after the operation is completed and clean the equipment.
Notice
• Ensure that the viscosity of the material does not exceed 10000cp; • Check whether the Power supply voltage conforms to 220V 50HZ before use; • Pay attention to safety during operation and avoid contact with swirl/spinning parts; • Regularly clean and maintain the equipment; • Optional 2.5 liter single-layer Mixing Tank needs to confirm compatibility; • Equipment has no explosion-proof function and avoids use in flammable environments.
