Overview

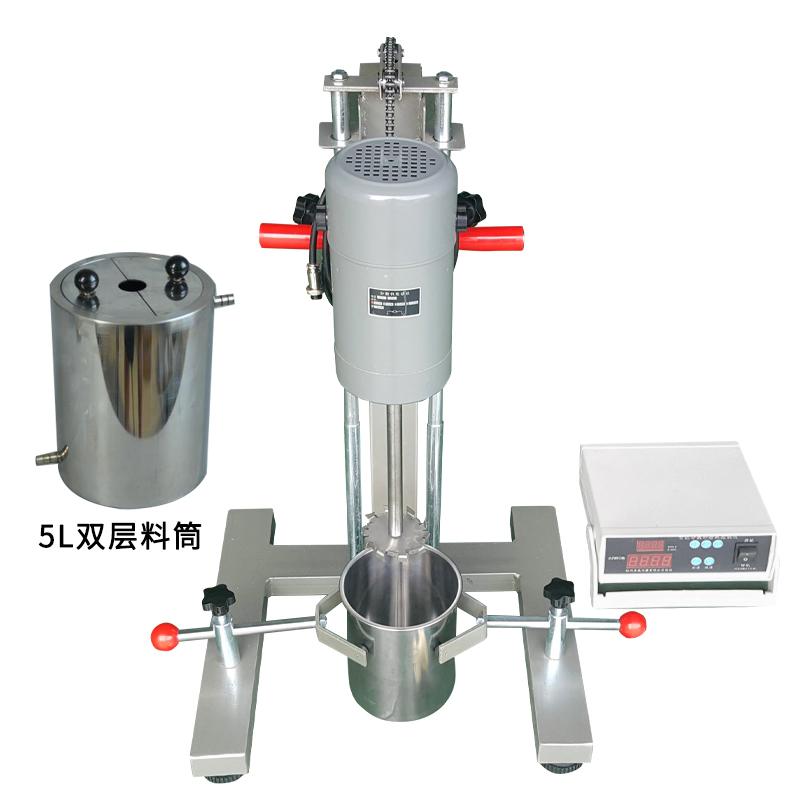

The FS-400D high-speed laboratory Disperser is a new type of high-performance dispersion equipment that integrates the functions of dispersion and mixing, and completes the dispersion and homogenization process through machines and containers. The equipment has high efficiency, good mixing effect, convenient cleaning, and simple manual lifting. It is widely used in the dispersion and mixing of liquids in factories, research institutes, Universities & colleges, and institutions.
Features
1. Electronic constant force speed control line, digital direct display of shaft Rotation speed
2. Equipped with dispersed impellers and grinding discs to adapt to different experimental requirements
3. Motor Power 400W, Processing capacity 2~ 5kg
4. Speed range 100~ 8000rpm, maximum processing viscosity 100000mPa.s
5. Electric lifting mode, dual-axis constant force lifting
6. Optional 5-liter double-decked Mixing Tank
Principle
The device uses an electronic constant force speed line, and the number directly displays the rotating shaft Rotation speed, which can directly calculate the linear speed and material viscosity of the stirring, dispersing, grinding disc according to the display speed of the swirl/spin axis. Driven by the high-speed operation of the motor, the dispersing head generates a high-speed tangential straight line. Under the action of huge centrifugal force, the material produces strong hydraulic shear and high-frequency mechanical effects, so that the fluid material can withstand thousands of shear and high-frequency mechanical effects per minute, so as to achieve effective mixing, dispersion and homogenization effects.
Applications
Factories, Research Institutes, Universities & colleges
Steps
1. Prepare the device and connect the power supply
2. Select the appropriate impeller or mill according to the experimental requirements
3. Rotation speed parameters required
4. Start the equipment for dispersion mixing operation
5. Turn off the power after the operation is completed
6. Cleaning equipment components
Notice
• Please check whether the Power supply voltage is 220V 50HZ before use
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Select the appropriate processing parameters according to the viscosity of the material
• Regularly clean equipment for optimal performance
• Do not exceed maximum processing viscosity and Processing capacity limits
