Overview

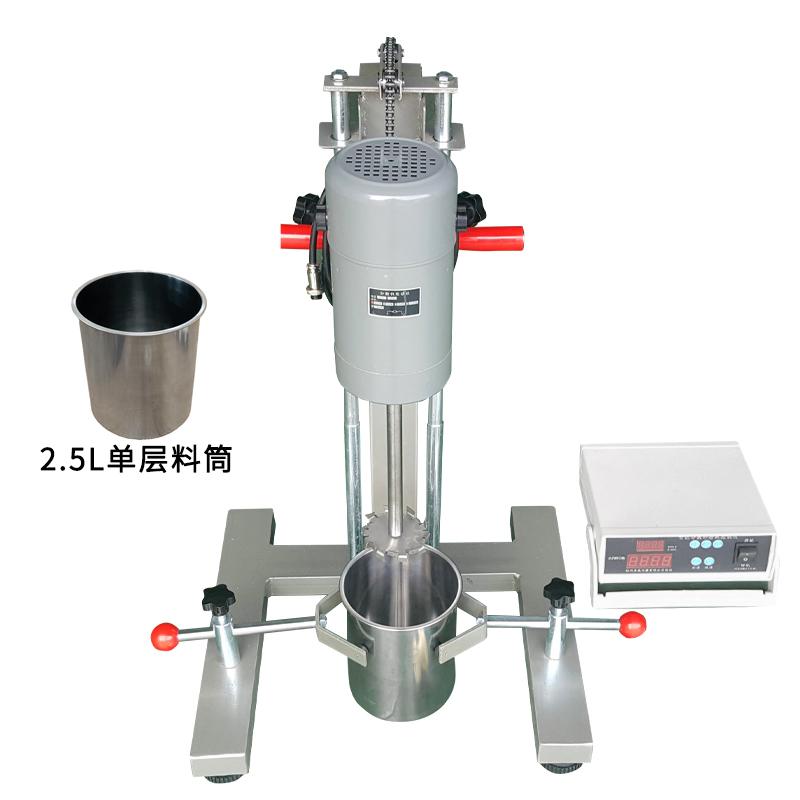

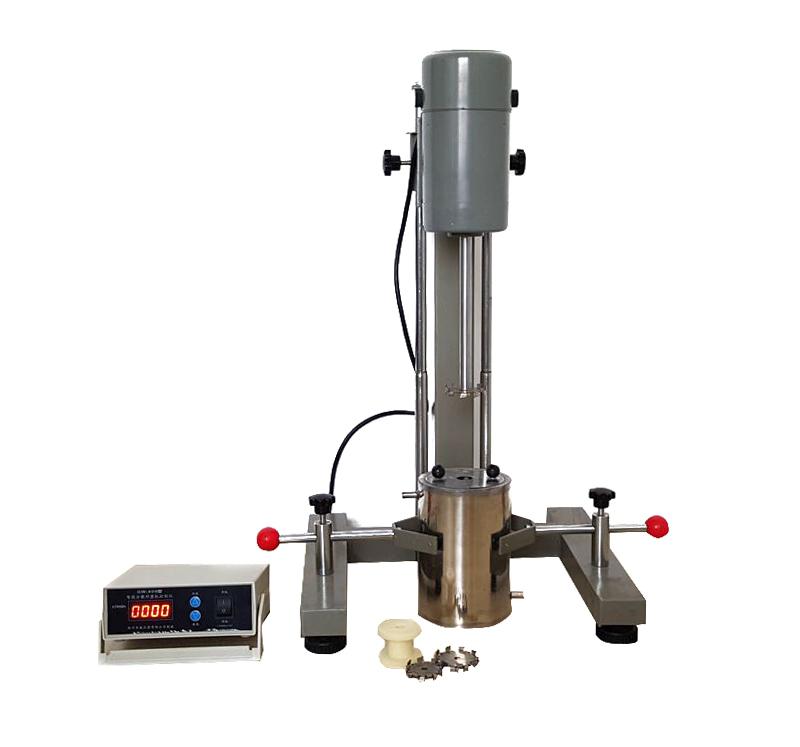

FS-1100D laboratory high speed dissolver is a high-performance product developed by QIWEI brand according to the development trend of international professional dispersion equipment. It integrates dispersion function and mixing function, and completes the two processes of dispersion and homogenization by one machine and one container. The equipment has high efficiency, good mixing effect, easy cleaning, simple and convenient manual lifting, and is widely used in the dispersion and mixing of materials in liquids such as factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Integrating dispersion and mixing functions, one machine completes two processes of dispersion and homogenization
2. High efficiency, good mixing effect, easy to clean
3. Manual lifting is simple and convenient
4. Electric lifting mode, dual-axis constant force lifting
5. Wide speed range, 100~ 8000rpm
6. Maximum processing viscosity up to 100000mPa.s
7. Optional 5-liter double-decked Mixing Tank
Principle
The Disperser drives the impeller through a motor to swirl/spin at high speed, generating strong shear force and turbulence in the liquid to achieve dispersion and mixing of materials. The electric lift system precisely controls the position of the impeller in the container to ensure uniform dispersion.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Put the material to be processed into the Mixing Tank
2. Choose the right impeller according to the material characteristics
3. Turn on the power and adjust the Rotation speed to the desired value
4. Adjust the impeller position through the electric lift system
Step 5 Start dispersing operations
6. Turn off the power after the job is completed and clean the equipment
Notice
• Before use, please check whether the Power supply voltage meets the requirements of 220V 50HZ
• Do not exceed the maximum Processing capacity 2~ 5kg during operation
• Rotation speed according to material viscosity, not more than 8000rpm
• Pay attention to safety during lifting operation to avoid pinching
• Regularly check whether all parts of the equipment are normal
• Please cut off the power supply when cleaning to ensure safety
