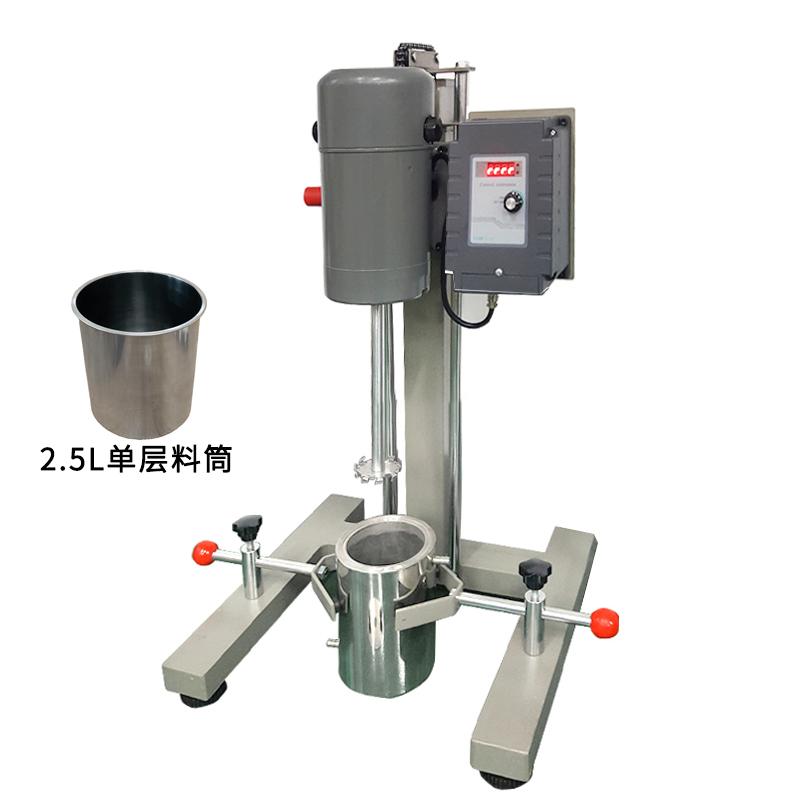

QIWEI SDF - 450/2.5 L Vertical Knob Type Disperser Laboratory High Speed Dispersion Mixing Homogenization

Name: QIWEI SDF - 450/2.5 L Vertical Knob Type Disperser Laboratory High Speed Dispersion Mixing Homogenization
Brand: QiWei
SKU: NB036175
Price: 364.0 USD
Availability: InStock

$ 364.00Ex works

Set dispersion and stirring functions in one, Speed range 100-8000rpm, manual lift Travel 250mm, suitable for fluid material experiments, high efficiency and easy cleaning.

Model

SDF-450/2.5L

Get Quote

Category : Disperser

Brand : QiWei

SKU : NB036175

Service :The delivery and service By NBCLab.Com

Overview

SDF-400 laboratory high speed dissolver is a high-performance product developed according to the development trend of international professional dispersion equipment. It integrates dispersion function and stirring function. The two processes of dispersion and homogenization are completed by one machine and one container. The equipment has high efficiency, good mixing effect, easy cleaning, simple and convenient manual lifting, and is suitable for fluid material experiments in containers.

Features

1. Integrated dispersion and stirring functions 2. The integration of decentralized and homogeneous processes is completed 3. High efficiency and good mixing effect 4. Easy to clean design 5. Manual lifting operation is simple and convenient 6. Equipped with timing function

Principle

The device drives the impeller and grinding disc through a motor to swirl/spin at high speed to disperse and homogenize the fluid material in the container to achieve full mixing of the material.

Applications

Factories, Research Institutions, Universities & colleges, Medical Units

Steps

1. Put the material into the container 2. Adjust the lifting position of the equipment 3. Rotation speed parameter 4. Start the device for decentralized processing 5. Turn off the power after processing 6. Cleaning equipment

Notice

• This machine is suitable for fluid material testing • Maximum processing viscosity does not exceed 0000mPa.s • Processing capacity range of 2~ 5kg • Speed regulation range is 100~ 8000rpm • Equipment without explosion-proof function • Power supply voltage match before use

Motor Power
400W
Processing capacity
2~ 5Kg (with water as medium)
Maximum processing viscosity
Below 10000cp
Speed Range
100~8000rpm
Impeller diameter
Φ50/60mm
Sanding disc diameter
Φ60mm
Net weight
35kg
Timing function
Standard
Lifting method
Manual lift
Lift Travel
250mm
Dimension
460*420*750mm
Mixing Tank
1.5L+2.5L
Power supply Voltage
About 35kg
Optional
5L double-decked Mixing Tank
Explosion-proof function
without
