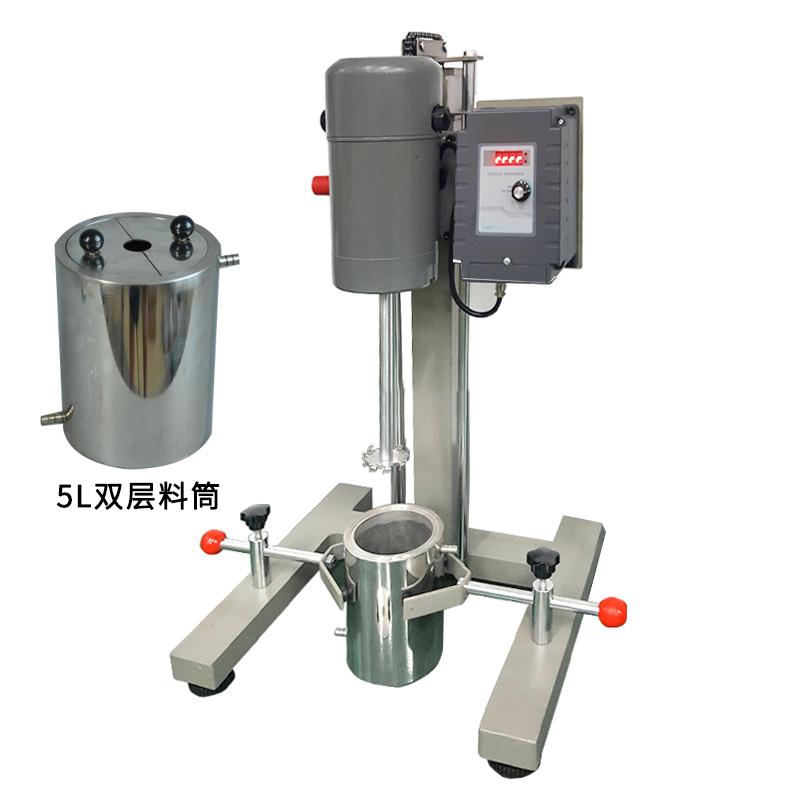

QIWEI SDF-450/5L Vertical Knob Disperser Lab high speed dissolver

Name: QIWEI SDF-450/5L Vertical Knob Disperser Lab high speed dissolver
Brand: QiWei
SKU: NB036176
Price: 431.0 USD
Availability: InStock

$ 431.00Ex works

It integrates dispersion and stirring functions, with a processing viscosity of up to 10000mPa.s, a speed range of 100-8000rpm, easy manual lifting operation, high efficiency and uniform mixing.

Model

SDF-450/5L

Get Quote

Category : Disperser

Brand : QiWei

SKU : NB036176

Service :The delivery and service By NBCLab.Com

Overview

SDF-400 laboratory high speed dissolver is a high-performance product developed according to the development trend of international professional dispersion equipment. It integrates dispersion and stirring functions and can complete both dispersion and homogenization processes in one container. The equipment has high efficiency, good mixing effect, easy cleaning, simple and convenient manual lifting, and is suitable for fluid material experiments in containers.

Features

1. Integrate dispersion function and mixing function 2. The two processes of dispersion and homogenization are completed by one machine and one container 3. High efficiency and good mixing effect 4. Easy to clean 5. Manual lifting is simple and convenient

Principle

The device drives the impeller or grinding disc through the motor to swirl/spin at high speed, and disperses and mixes the fluid material in the container to achieve uniform dispersion and homogenization of the material.

Applications

Factories, Research Institutions, Universities & colleges, Medical Units

Steps

1. Put the material into the container 2. Adjust the equipment height according to requirements 3. Set the appropriate Rotation speed parameters 4. Start the device for decentralized processing 5. Turn off the device after processing is complete 6. Cleaning equipment

Notice

This machine is suitable for conducting fluid material experiments in containers • The maximum processing viscosity should be less than 10000mPa.s • Please use the equipment according to the specifications and parameters • Equipment should be cleaned in time after use

Motor Power
400W
Processing capacity
2~ 5Kg (with water as medium)
Maximum processing viscosity
<10000mPa.s
Speed Range
100~8000rpm
Impeller diameter
Φ50/60mm
Sanding disc diameter
Φ60mm
Net weight
35kg
Timing function
Standard
Lifting method
Manual lift
Lift Travel
250mm
Dimension
460*420*750mm
Mixing Tank
5L
Power supply Voltage
About 35kg
Optional
1.5L double-decked Mixing Tank, 2.5L single-layer Mixing Tank
Explosion-proof function
without

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
