Overview

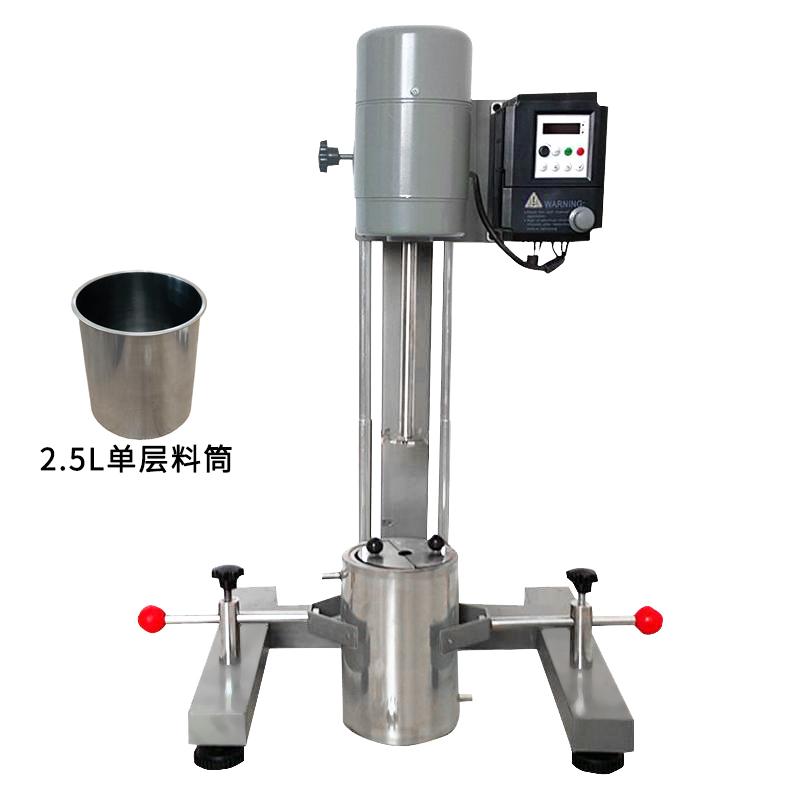

QIWEI JFS - 550/2.5 L electric lift Disperser is a high-speed frequency conversion equipment, which integrates stirring, sand grinding and dispersion, and meets the different experimental needs of the laboratory. The equipment adopts frequency conversion motor, which has the advantages of small size, low noise, no commutation interference, no carbon brush mechanical abrasion, etc. The number directly displays the rotating shaft Rotation speed, and is equipped with a dispersion impeller and a sand grinding disc.
Features
1. Adopt dual-axis constant force lifting system, easy to lift
2. Adopt a new type of variable frequency motor and realize stepless speed regulation through smart variable frequency controller
3. Application of digital PID technology, high control accuracy, 4 digital tube directly display spindle Rotation speed
4. Disperse impeller and sand grinding blades are directly connected to the shaft with screws
5. The barrel is fixed by the left and right grippers, and the cylinder body adopts the jacket structure, which can be cooled down by water
6. With timing function
7. Optional 5-liter double-decked Mixing Tank
Principle
JFS-550 high-speed frequency conversion Disperser implements stepless speed regulation of the frequency conversion motor through smart frequency conversion controller, and applies digital PID technology to implement High Accuracy control. The equipment stirres, grinds and disperses materials through dispersed impellers or sand grinding blades to meet different experimental needs.
Applications
Laboratory material handling, mixing, sanding, dispersion
Standards
Power supply voltage: 220V 50HZ
Steps
1. Plug in the power supply, and the display on the meter is normal.
2. Turn the potentiometer knob left to the bottom
3. Press the "RUN" button on the panel and the motor is ready to run
4. Adjust the potentiometer knob until the desired Rotation speed (you can also press the "▲" or "▲" key until the desired Rotation speed)
5. Press the "STOP" button to stop the motor from running
Notice
• Rotation speed greater than 4000r/min should not drive empty
• Fix the selected sanding blade disc or dispersed impeller with the rotating shaft before use
• After adjusting the high and low positions of the rotating shaft and the container, clamp the motor seat and the container
• Put in the material and cover the container before turning on the power supply.
• After turning on the power switch, wait for the controller initialization to end
