Overview

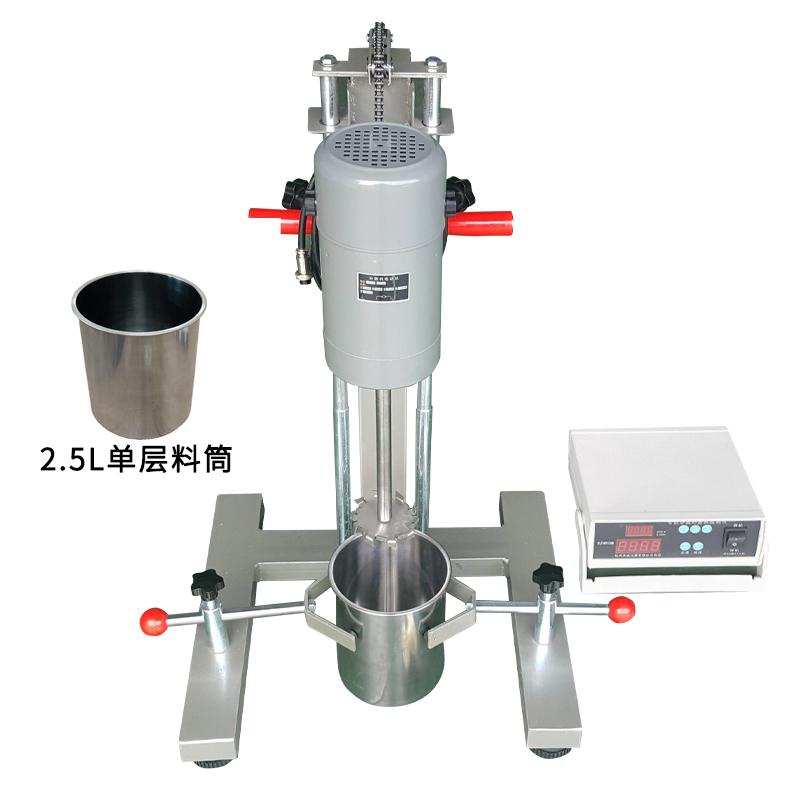

The FS-1000D high-speed laboratory Disperser is a new type of high-performance dispersion equipment that integrates the functions of dispersion and mixing, and completes the dispersion and homogenization process through machines and containers. The equipment has high efficiency, good mixing effect, convenient cleaning, and simple manual lifting. It is widely used in the dispersion and mixing of liquids in factories, scientific research institutes, Universities & colleges, and institutions.
Features
1. Comprehensive dispersion and mixing functions
2. High efficiency and good mixing effect
3. Easy to clean
4. Manual lifting is simple and convenient
5. Electronic constant force speed control line, digital direct display Rotation speed
6. Can adapt to different laboratory test requirements
7. Optional timing control instrument and double-decked Mixing Tank
Principle
The equipment adopts electronic constant force speed line, digital direct display shaft Rotation speed, and is equipped with dispersion impeller and grinding disc. Driven by the high-speed operation of the motor, the dispersion head produces a high-speed tangential straight line. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material bears thousands of shearing and high-frequency mechanical effects per minute, so as to achieve effective mixing, dispersion and homogenization effect. The linear velocity and material viscosity of the stirring, dispersion and grinding disc can be directly calculated according to the display speed of the swirl/spin axis. The relationship between the chemical reaction rate and the chemical reaction rate provides the correct process data for large-scale production.
Applications
Dispersion and mixing of liquids in factories, research institutes, Universities & colleges, institutions, etc
Steps
1. Preparation of Materials and Mixing Tanks
2. Select dispersed impeller or mill according to test requirements
3. Set the required Rotation speed (100~ 8000rpm range)
Start the equipment to disperse and stir
5. Rotation speed observed digitally
6. Turn off the device after finishing processing
7. Cleaning equipment components
Notice
• Do not exceed the maximum processing viscosity of 15000mPa.s
• Processing capacity is controlled within the range of 2~ 5kg
• Pay attention to safety protection during operation
• Regularly clean and maintain equipment
• Appropriate Mixing Tank Specifications
• Note that the motor Power is 1100W, make sure the power supply matches
