Overview

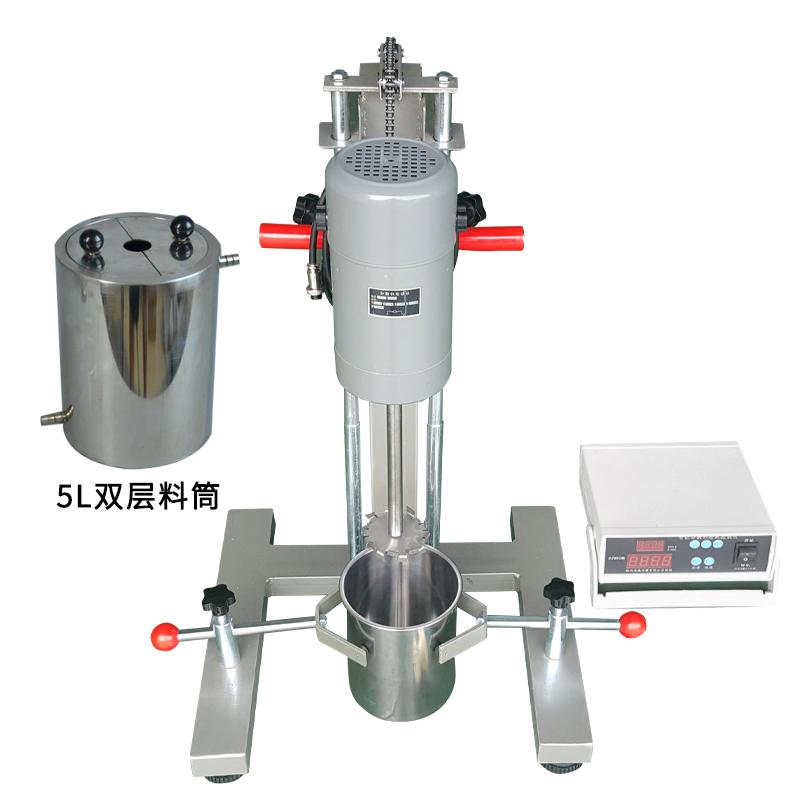

The FS-1000D high-speed laboratory Disperser is a new type of high-performance product that integrates the functions of dispersion and mixing, and completes the dispersion and homogenization process through machines and containers. The equipment has high efficiency, good mixing effect, convenient cleaning, and simple manual lifting. It is widely used in the dispersion and mixing of liquids in factories, research institutes, Universities & colleges, and institutions.
Features
1. Comprehensive dispersion and mixing functions
2. High efficiency and good mixing effect
3. Easy to clean
4. Manual lifting is simple and convenient
5. Digital direct display of shaft Rotation speed
6. Optional timing control instrument
Principle
The device adopts an electronic constant force speed line, which directly displays the rotating shaft Rotation speed digitally, and is equipped with a dispersion impeller and a grinding disc. Driven by the high-speed operation of the motor, the dispersion head produces a high-speed tangential straight line, and the material produces strong hydraulic shearing and high-frequency mechanical effects under the action of centrifugal force, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve effective mixing, dispersion and homogenization effects.
Applications
Dispersion and mixing of liquids in factories, research institutes, Universities & colleges, institutions, etc
Steps
1. Select dispersed impeller or mill according to experimental requirements
2. Set the required Rotation speed (100~ 8000rpm range)
3. Start the equipment for dispersion mixing operation
4. Turn off the device after the operation is completed
5. Perform cleaning and maintenance
Notice
• Do not exceed the maximum processing viscosity of 15000mPa.s
• Processing capacity is controlled within the range of 2~ 5kg
• Make sure the equipment is firmly installed before use
• Pay attention to safety protection during operation
• Regular equipment maintenance
