Overview

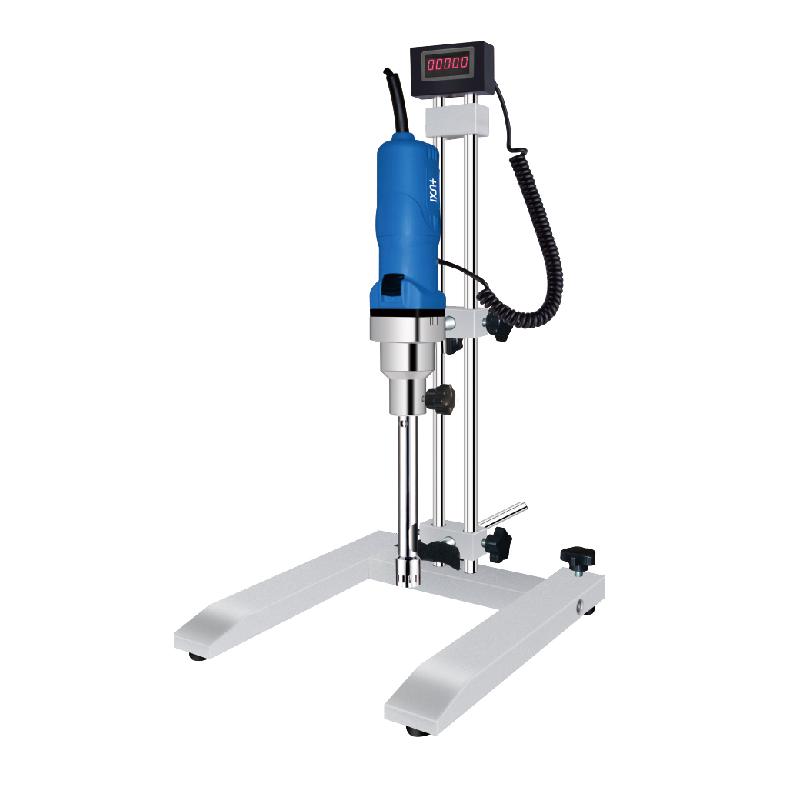

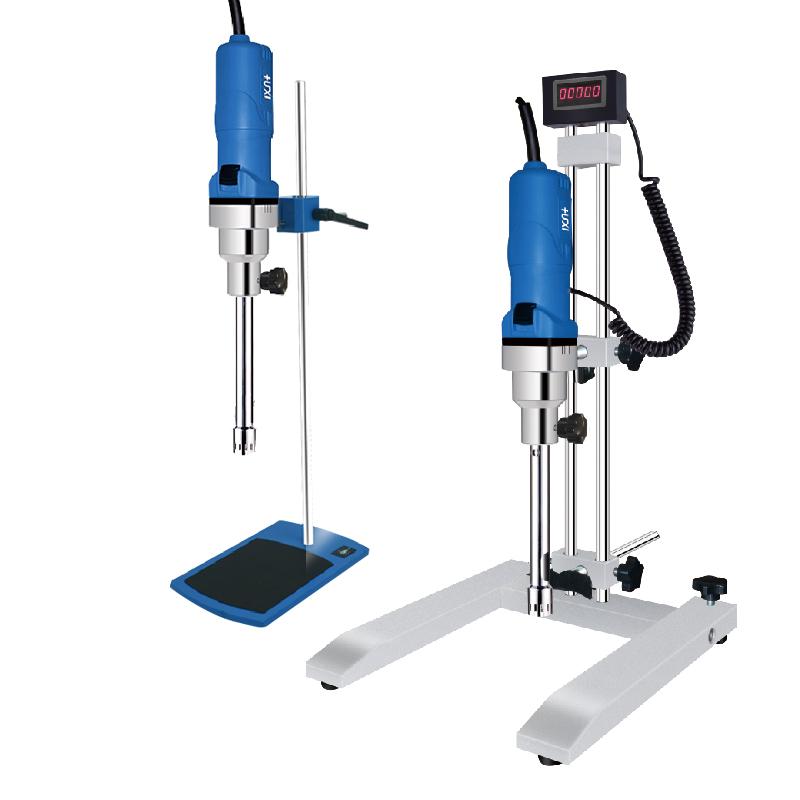

HUXI HR-500/10G High Shear Dispersion Mulser can effectively, quickly and uniformly distribute one or more phases into another continuous phase, while under normal circumstances each phase is insoluble with each other. Through the high circumferential velocity and high frequency mechanical effect generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, and realizes the instantaneous uniform fine dispersion emulsification of insoluble solid phase, liquid phase and gas phase.
Features
1. Processing capacity range 10-150ml
2. Speed range 8000-28000rpm
3. Maximum processing viscosity 200cp
4. The maximum linear speed of the rotor is 10m/s
5. Stator diameter φ 10mm
6. Working head material SS316L
7. Temperature resistance 120 ℃
8. Input Power 500W, Output Power 320W
Principle
The strong kinetic energy brought by the high circumferential speed and high-frequency mechanical effect generated by the high-speed swirl/spin of the rotor makes the material subject to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, so that the immiscible solid phase, liquid phase and gas phase can be dispersed and emulsified uniformly and finely in an instant under the combined action of the corresponding mature process and appropriate additives. After high-frequency cycles, stable high-quality products are finally obtained.

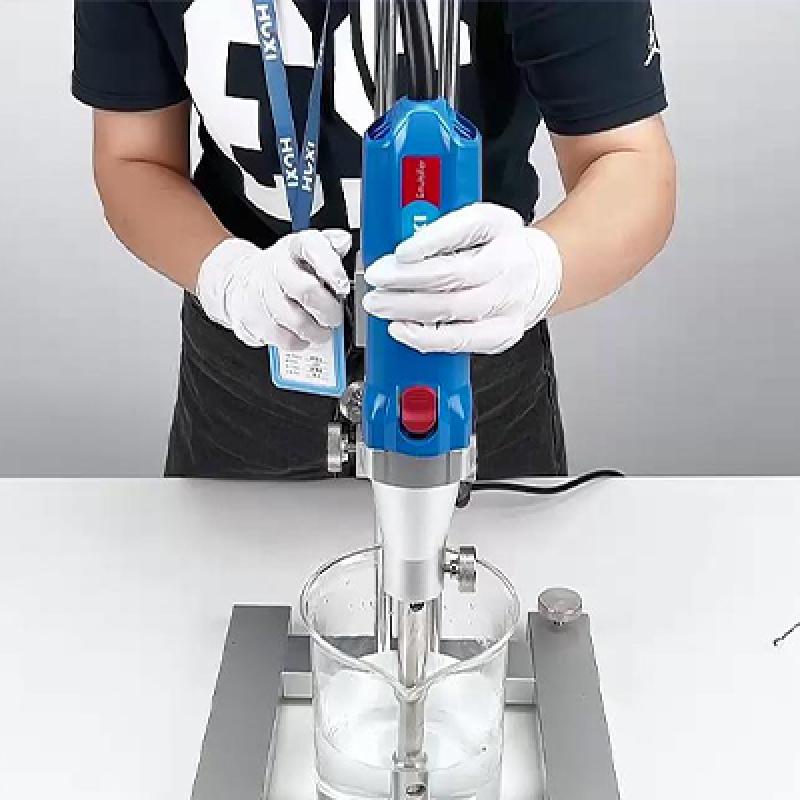

Steps
1. Select the appropriate gear according to the processing needs (A-G file corresponds to different Rotation speeds)
2. Put the material into the processing container
3. Start the device and adjust the Rotation speed through the scale display
4. Decentralized emulsification
5. Turn off the device after processing is complete
Notice
• The maximum processing viscosity of the equipment is 200cp
• Operating temperature must not exceed 120 ℃
• Processing capacity range is 10-150ml
• Please check whether the connection of each part is firm before use
• Do not exceed the maximum Rotation speed 28000rpm
• Note that the power supply specification is 220V/50/60HZ
