Overview

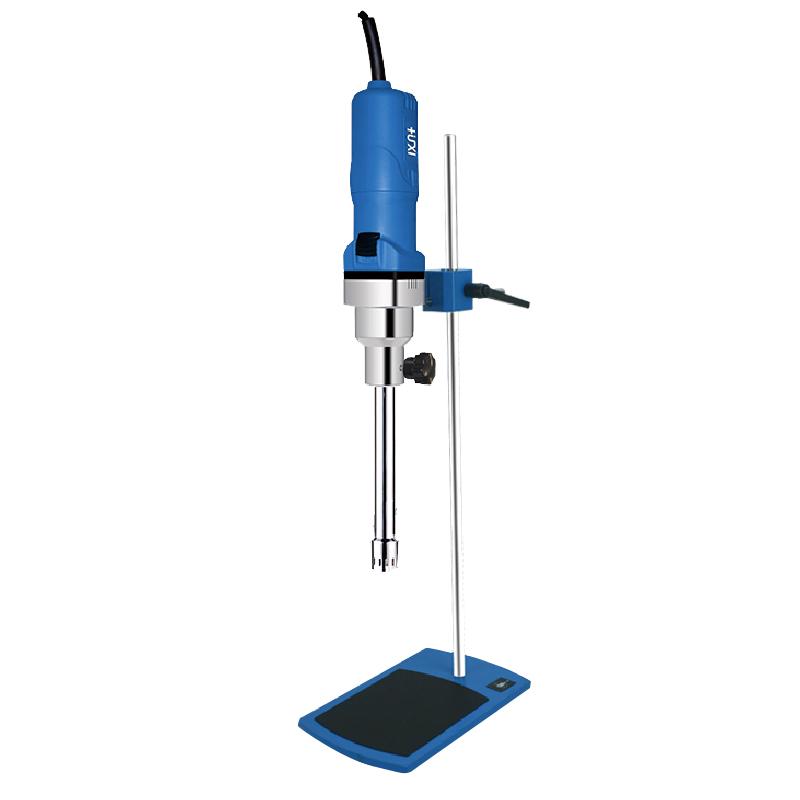

The HUXI HR-500/20DG High Shear Dispersion Mulser is an efficient device that distributes immiscible phases into continuous phases quickly and uniformly. The high linear speed and mechanical effects generated by high-speed swirl/spin enable materials to be subjected to a combination of shearing, extrusion, and friction in narrow gaps, achieving instantaneous fine dispersion emulsification, and ultimately achieving stable and high-quality products.
Features
1. Efficient and fast dispersion emulsification, Processing capacity 50-3000ml
2. Speed range 8000-28000rpm, rotor maximum linear speed 22m/s
3. Power input 500W, output 320W
4. High temperature resistant working head material, temperature up to 180 ° C
5. Rotation speed displayed on scale, intuitive and convenient operation
6. Suitable for high viscosity materials, with a maximum processing viscosity of 3000cp
Principle
High shear dispersion Mulser produces high circumferential velocity and high-frequency mechanical effects through high-speed swirl/spin of the rotor, so that the material is subjected to mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tear and turbulence in the narrow gap of the stator and rotor. With the cooperation of technology and additives, the insoluble solid phase, liquid phase and gas phase are uniformly dispersed and emulsified in an instant, and stable products are obtained through high-frequency cycles.
Applications
Chemical, pharmaceutical, food, cosmetics, biotechnology
Steps
1. Select the appropriate gear according to the material characteristics (A-G file corresponds to 8000-28000rpm)
2. Install the cutter head and connect the motor
3. Add the material to the container and ensure that the Processing capacity is within the range of 50-3000ml
4. Turn on the device and monitor Rotation speed through scale display
5. Run until the material reaches the desired dispersion emulsification effect
6. Turn off the equipment and clean the work head
Notice
• Processing capacity within the range of 50-3000ml
• The working head material is SS316L, graphite ceramic, FKM, which needs to be selected according to the material characteristics
• Maximum processing viscosity does not exceed 3000cp
• Pay attention to high temperature during operation, Operating temperature can reach 180 ℃
• Regularly check whether the structural parts of the equipment such as rubber pads, screws, etc. are in good condition
• Clean in time after use to avoid material residues affecting performance
