Overview

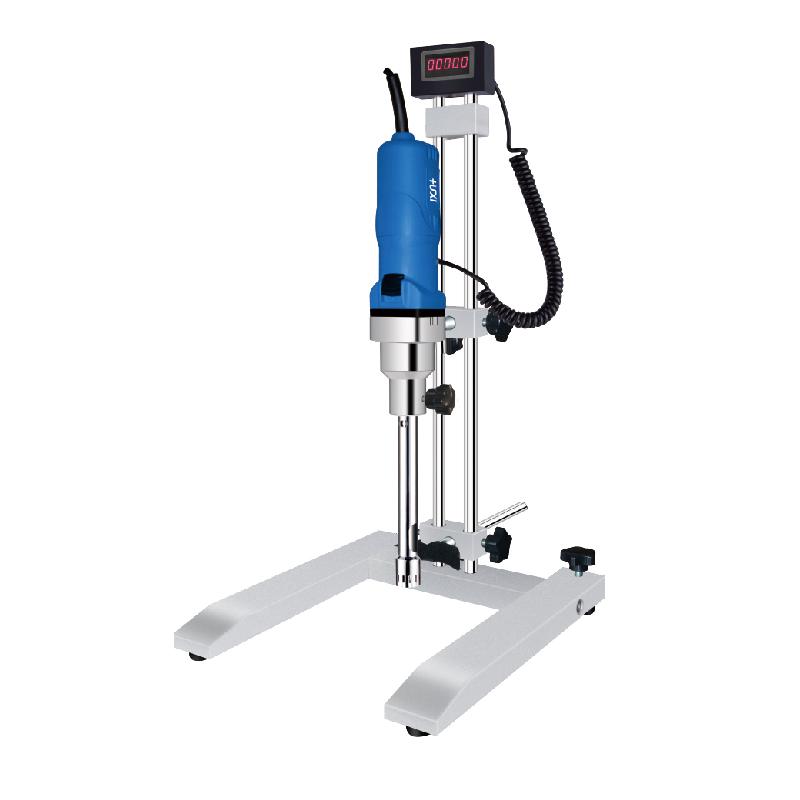

The HUXI HR-500D/8G High Shear Dispersion Mulser is an efficient device that distributes immiscible phases into continuous phases quickly and uniformly. The high circumferential velocity and high-frequency mechanical effects generated by the high-speed swirl/spin of the rotor make the material subject to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in narrow gaps, so as to achieve instant uniform and fine dispersion emulsification, and finally obtain a stable and high-quality product.
Features
1. Efficient and fast uniform emulsification of immiscible phases
2. Rotor high speed swirling/spinning produces high circumferential speed and high frequency mechanical effects
3. Materials are subjected to multiple comprehensive effects in narrow gaps
4. Rotation speed of digital LED display
5. The working head material is SS316L, with high temperature resistance up to 120 ° C
6. Processing capacity range 1-60ml, suitable for a variety of viscosity materials
Principle
Through the high circumferential speed and high-frequency mechanical effect generated by the high-speed swirl/spin of the rotor, the high-shear dispersion Mulser makes the material subject to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap between the stator and the rotor. Under the combined action of the corresponding mature process and appropriate additives, the insoluble solid phase, liquid phase and gas phase are uniformly and finely dispersed and emulsified instantaneously. After high-frequency cycle, a stable high-quality product is finally obtained.
Applications
Dispersion, emulsification, mixing, homogenization
Standards
Power standard: 220V/50/60HZ
Steps
1. Connect power 220V/50/60HZ
2. Select the appropriate gear according to the processing requirements (A-G file corresponds to 8000-28000rpm Rotation speed)
3. Start the device and monitor Rotation speed through LED display
4. Add the material to the processing container for dispersal emulsification
5. Turn off the power after processing is completed
Notice
• Maximum processing viscosity does not exceed 100cp
• Operating temperature does not exceed 120 ℃
• Standard Processing capacity range is 1-60ml
• Ensure that the power supply meets the 220V/50/60HZ standard when using
• Pay attention to safety during operation and avoid direct contact with high-speed swirling/spinning parts
