Overview

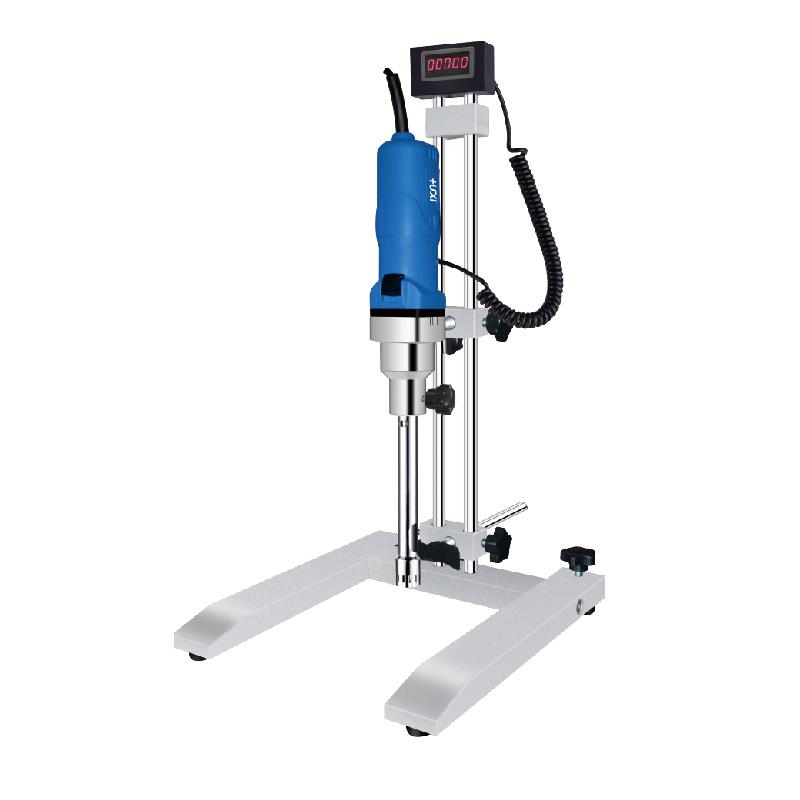

The HUXI HR-500D/10G High Shear Dispersion Mulser is a highly efficient device that can quickly and uniformly distribute one or more incompatible phases into another continuous phase. Through the high circumferential velocity and high-frequency mechanical effects generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, so as to achieve instant uniform and fine dispersion emulsification, and finally obtain stable high-quality products.
Features
1. Efficient and fast dispersion emulsification, Processing capacity 10-150ml;
2. Speed range 8000-28000rpm, digital display;
3. Strong Power, Input Power 500W, Output Power 320W;
4. High rotor line speed up to 10m/s, suitable viscosity up to 200cp;
5. The working head material is SS316L, with high temperature resistance of 120 ° C;
6. Compact structure, including rubber pad, cutter head, motor and other components.
Principle
High shear dispersion Mulser produces high circumferential velocity and high-frequency mechanical effects through the high-speed swirl/spin of the rotor, so that the material is subjected to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor. Under the combined action of the corresponding process and additives, the insoluble solid phase, liquid phase and gas phase are uniformly dispersed and emulsified instantaneously, and the high-frequency cycle is repeated, and the final stable product is obtained.
Applications
Dispersion, emulsification, mixing
