Overview

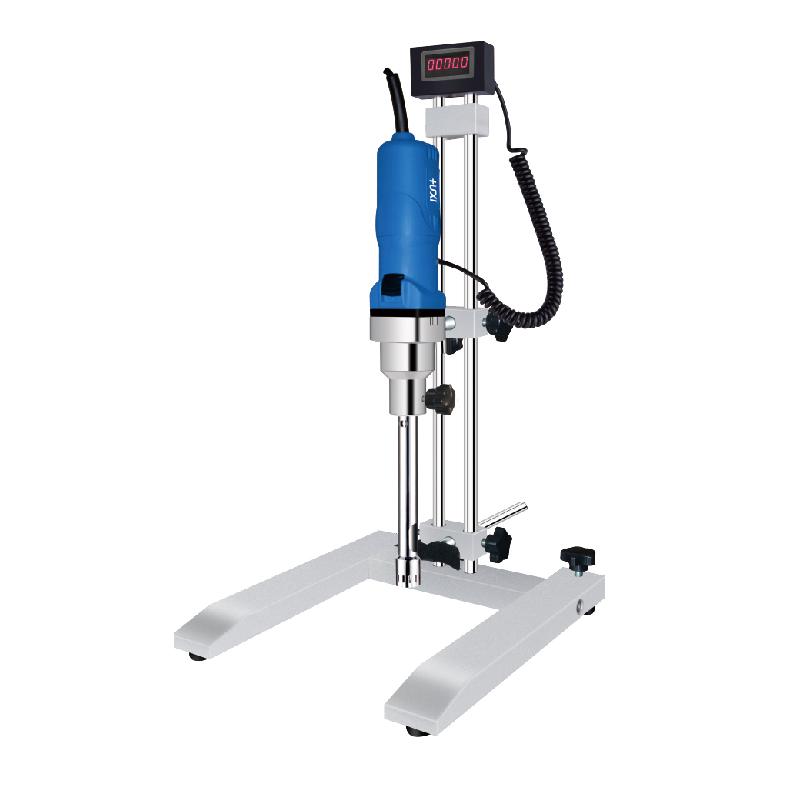

HUXI HR-500D/20G High Shear Dispersion Mulser can effectively, quickly and uniformly distribute one or more phases into another continuous phase, while under normal circumstances each phase is incompatible with each other. Through the high circumferential speed and high frequency mechanical effect generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, so as to achieve the instantaneous uniform and fine dispersion emulsification of the insoluble solid phase, liquid phase and gas phase under the action of process and additives.
Features
1. Speed range 8000-28000rpm, digital display Rotation speed
2. Input Power 500W, Output Power 320W
3. Standard Processing capacity 50-1500ml
4. Maximum processing viscosity 3000cp
5. The maximum linear speed of the rotor is 20m/s
6. Stator diameter φ 20mm
7. Working head material SS316L
8. Temperature resistance 120 ℃
Principle
High shear dispersion Mulser through the rotor high-speed swirl/spin generated by the high circumference speed and high-frequency mechanical effects of the strong kinetic energy, so that the material in the stator, rotor narrow gap by strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence and other comprehensive effects, so that the insoluble solid phase, liquid phase, gas phase in the corresponding mature process and the appropriate amount of additives under the joint action of instant uniform fine dispersion emulsification, after high-frequency cycle, and finally obtain a stable high-quality product.
Applications
Solid phase, liquid phase, gas phase dispersion emulsification
Standards
LED display, 220V/50/60HZ power supply
Steps
1. Choose the appropriate model according to the Processing capacity
2. Rotation speed setting
3. Start the device for decentralized emulsification
4. Rotation speed monitor to ensure normal operation
Notice
• Ensure that the viscosity of the material does not exceed 3000cp
• Operating temperature must not exceed 120 ℃
• Processing capacity according to select the appropriate model
• Speed range 8000-28000rpm
• Check the connection of each part of the equipment before use
