Overview

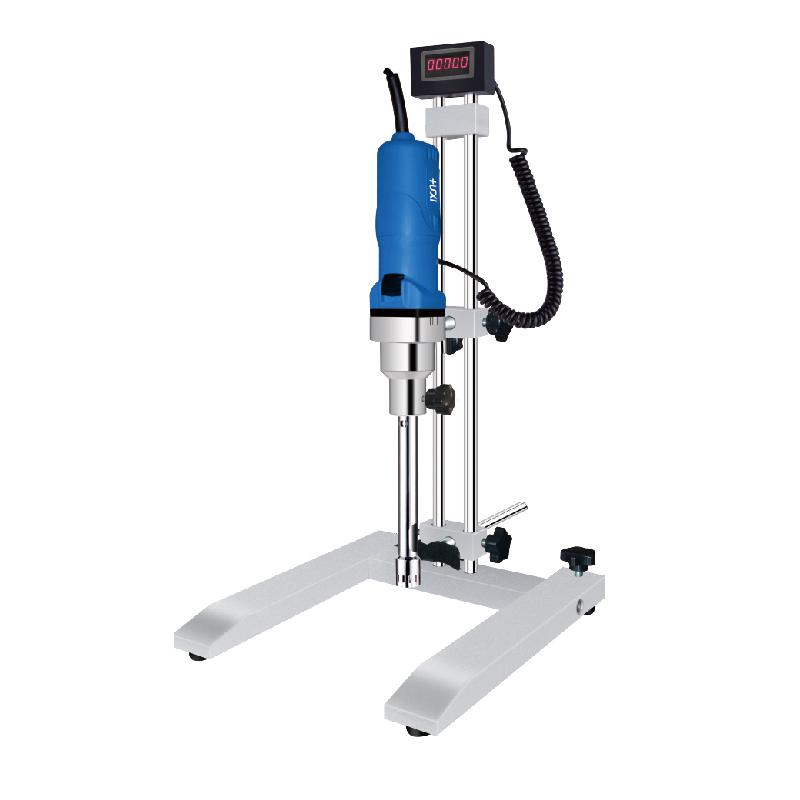

The HUXI HR-500D/20F High Shear Dispersion Mulser is an efficient device that quickly and uniformly distributes one or more incompatible phases into another continuous phase. It exerts a variety of comprehensive forces on the material in the narrow gap between the stator and rotor through the high circumferential velocity and high-frequency mechanical effects generated by high-speed swirl/spin, achieving instantaneous uniform and fine dispersion emulsification, and finally obtaining a stable high-quality product.
Features
1. Efficient and fast uniform emulsification of immiscible phases
2. Rotor high speed swirling/spinning produces high circumferential speed and high frequency mechanical effects
3. Materials are subjected to a combination of mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing, and turbulence in narrow gaps
4. Digital LED Rotation speed display
5. The working head is made of SS316L PTFE, with high temperature resistance up to 120 ° C
Principle
The high shear dispersion Mulser brings strong kinetic energy through the high circumferential speed and high-frequency mechanical effect generated by the high-speed swirl/spin of the rotor, so that the material is subjected to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tear and turbulence in the narrow gap of the stator and rotor. Under the combined action of the corresponding mature process and appropriate amount of additives, the insoluble solid phase, liquid phase and gas phase are uniformly and finely dispersed in an instant. After high-frequency cycle, stable high-quality products are finally obtained.
Applications
Solid phase, liquid phase, gas phase dispersion emulsification
Standards
Power standard: 220V/50/60HZ
Steps
1. Select the appropriate type of equipment according to the Processing capacity
2. Connect power 220V/50/60HZ
3. Rotation speed adjustment through LED digital display, range 8000-28000rpm
4. Put the material into the handling container
5. Start the device for decentralized emulsification
6. Turn off the power after processing is completed
Notice
• Maximum processing viscosity does not exceed 3000cp
• Processing capacity range is 50~ 1500ml
• Operating temperature does not exceed 120 ℃
• Make sure the power supply meets the 220V/50/60HZ standard before use
• Note that the maximum linear speed of the rotor is 19m/s
• Regularly check the integrity of all parts of the equipment
