Overview

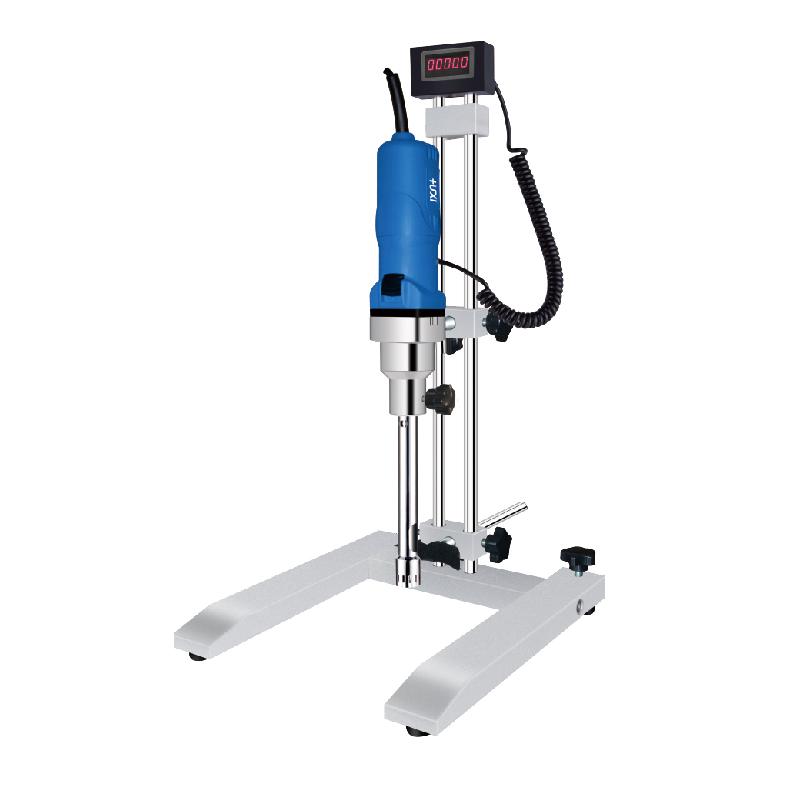

HUXI HR-500D/20DG High Shear Dispersion Mulser can effectively, quickly and uniformly distribute one or more phases into another continuous phase, and is especially suitable for materials that are incompatible with each other. Through the high circumferential speed and high frequency mechanical effect generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, so as to achieve instantaneous uniform and fine dispersion emulsification.
Features
1. High shear dispersion emulsification efficiency, fast and uniform processing
2. Speed range up to 8000-28000rpm
3. Digital LED display Rotation speed, intuitive operation
4. High-quality working head materials, including SS316L, graphite ceramics, FKM
5. High temperature resistant design, maximum temperature up to 180 ° C
6. Wide range of processing viscosity, up to 3000cp
7. Standard Processing capacity 50-3000ml, suitable for various sizes
Principle
The equipment generates high circumferential speed and high-frequency mechanical effects through the high-speed swirl/spin of the rotor, so that the material is subjected to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor. Under the combined action of the corresponding mature process and appropriate amount of additives, the insoluble solid phase, liquid phase and gas phase can be uniformly dispersed and emulsified in an instant, and through high-frequency cycles, stable high-quality products are finally obtained.
Steps
1. Select the appropriate gear according to the characteristics of the processed material
2. Put the material into the container and ensure that the Processing capacity is within the range of 50-3000ml
3. Connect the power supply and turn on the device.
4. Rotation speed observed through the LED display, adjust the gear as needed
5. Run equipment for decentralized emulsification
6. Turn off the power after processing and clean the equipment
Notice
• Power supply voltage meets 220V requirement before use
• The viscosity of the treated material should not exceed 3000cp
• Processing capacity should be controlled within the range of 50-3000ml
• Operating temperature must not exceed 180 ° C
• Regularly check whether all parts of the equipment are in good condition
• Pay attention to safety when cleaning to avoid water entering the motor part
• Use a suitable container to ensure stable operation
