Overview

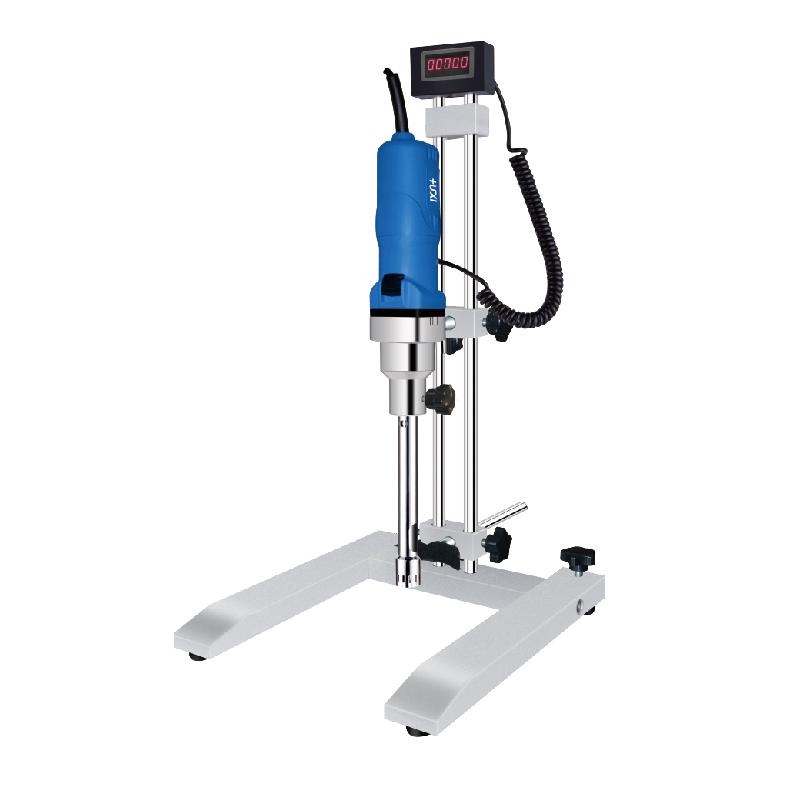

The HUXI HR-500D/25G High Shear Dispersion Mulser is an efficient device that distributes immiscible phases into continuous phases quickly and uniformly. High linear velocities and high-frequency mechanical effects are generated by high-speed swirl/spin, so that the material is subjected to a combination of strong shear, extrusion, friction, impact and turbulence in narrow gaps, achieving instantaneous fine dispersion emulsification, and finally obtaining a stable and high-quality product.
Features
1. Efficient and fast dispersion emulsification, Processing capacity range 100-5000ml
2. High Speed range 8000-28000rpm, Digital display Rotation speed
3. Maximum processing viscosity up to 5000cp, rotor maximum linear speed 27m/s
4. The working head material is SS316L and PTFE, with high temperature resistance of 120 ° C
5. Input Power 500W, Output Power 320W, Energy Saving and Efficient
Principle
The equipment generates high circumferential speed and high-frequency mechanical effects through the high-speed swirl/spin of the rotor, so that the material is subjected to mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor. With the cooperation of technology and additives, the insoluble solid phase, liquid phase and gas phase are uniformly dispersed and emulsified in an instant, and stable products are obtained through high-frequency cycles.
Applications
Chemical, pharmaceutical, food, cosmetics, coatings, inks, nanomaterials, biotechnology
Steps
1. Processing capacity and viscosity according to select the appropriate model and stator
2. Connect the power supply to ensure that the voltage is 220V/50/60HZ
3. Set the desired Rotation speed through the LED display, refer to the Rotation speed table to select the gear
4. Start the device for decentralized emulsification
5. Turn off the power after processing and clean the work head.
Notice
• Ensure that the viscosity of the material does not exceed 5000cp and the temperature does not exceed 120 ° C
• Power supply voltage check before use
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Regularly clean and maintain equipment to ensure stable performance
• Processing capacity selection to avoid overload operation
