Overview

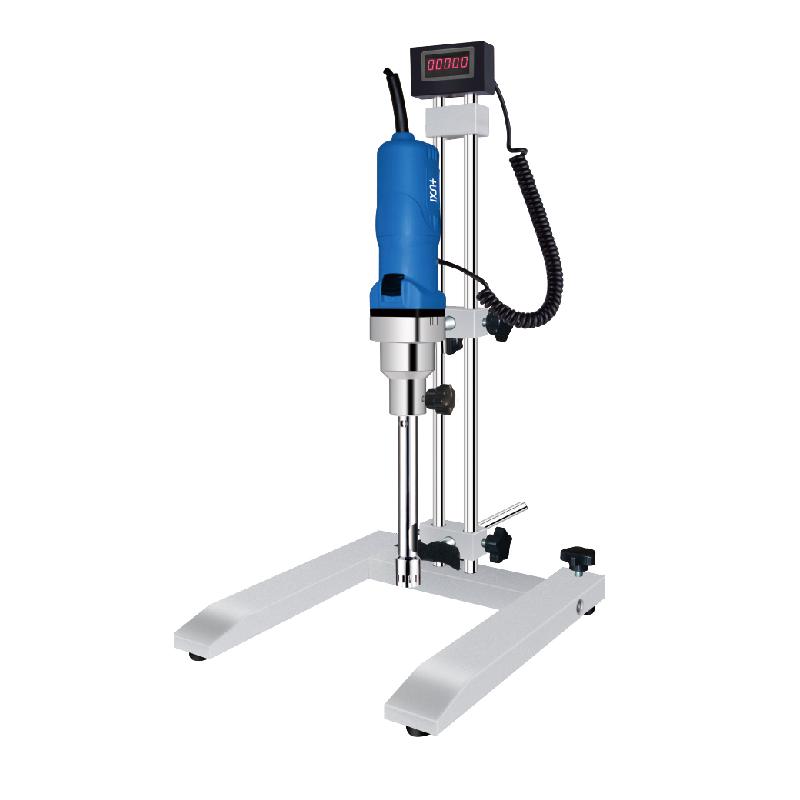

HUXI HR-500D/25F High Shear Dispersion Mulser is a highly efficient device that can quickly and uniformly distribute incompatible phases into continuous phases. The high circumferential velocity and high-frequency mechanical effects generated by the high-speed swirl/spin of the rotor make the material subject to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, so as to achieve instant uniform and fine dispersion emulsification, and finally obtain stable and high-quality products.
Features
1. Efficient and fast uniform emulsification of immiscible phases
2. Rotor high speed swirling/spinning produces high circumferential speed and high frequency mechanical effects
3. Materials are subjected to a variety of comprehensive forces in narrow gaps
4. Rotation speed of digital LED display
5. The working head is made of SS316L PTFE, with high temperature resistance up to 120 ° C
6. Speed range up to 8000-28000rpm
7. Standard Processing capacity covers 100-5000ml
Principle
High shear dispersion Mulser produces high circumferential velocity and high-frequency mechanical effects through the high-speed swirl/spin of the rotor, so that the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor. Under the combined action of the corresponding mature process and appropriate amount of additives, the insoluble solid phase, liquid phase and gas phase are uniformly dispersed and emulsified instantaneously and finely. After high-frequency cycle, the final product is stable and high-quality.
Steps
1. Select the appropriate model and parameters according to the processing requirements
2. Installation equipment components include cutter heads, motor connectors, etc
3. Set the required Rotation speed gear (A-G corresponds to 8000-28000rpm)
4. Start the device for decentralized emulsification
5. Monitor the digital LED display to ensure normal operation
6. Turn off the equipment and perform cleaning and maintenance after processing
Notice
• Ensure that the material viscosity does not exceed the maximum processing viscosity of 3500cp
• During operation, pay attention that the temperature does not exceed the 120 ° C limit
• Regularly check whether the equipment components such as cutter heads and connectors are in good condition
• Follow the Speed range 8000-28000rpm to avoid running beyond the limit
• Clean the work head after use to maintain performance
• Power supply needs to match 220V/50/60HZ requirements
