Overview

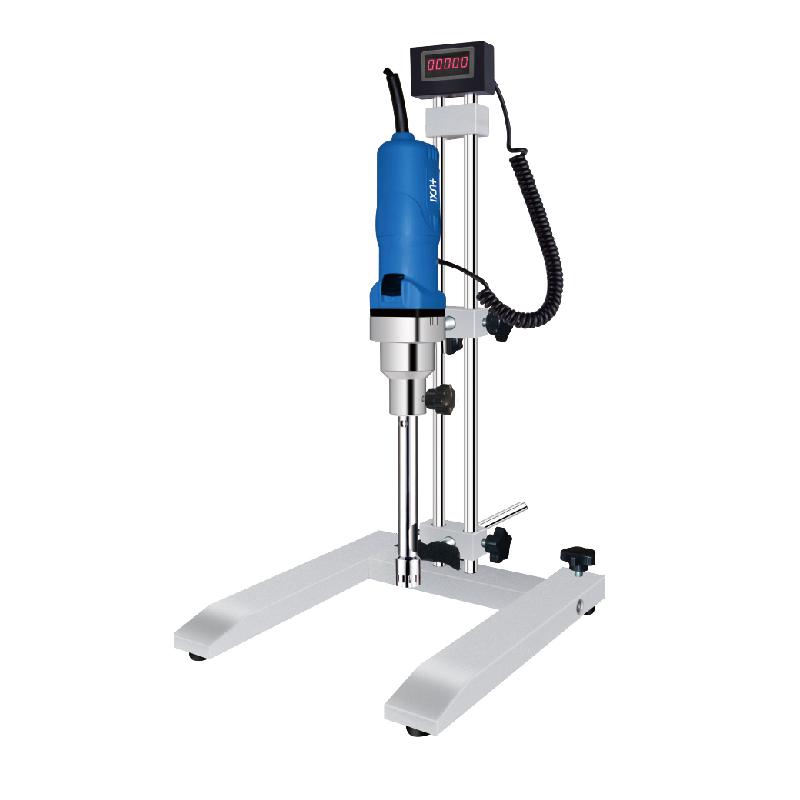

The HUXI HR-500D/25DF High Shear Dispersion Mulser is an efficient device that distributes immiscible phases into continuous phases quickly and uniformly. It generates strong kinetic energy through high-speed swirl/spin, so that the material is subjected to a variety of comprehensive actions in narrow gaps, achieving instantaneous fine dispersion emulsification, and finally obtaining a stable and high-quality product.
Features
1. Efficient and fast uniform emulsification of immiscible phases
2. Rotor high speed swirling/spinning produces high circumferential speed and high frequency mechanical effects
3. The material is subjected to a combination of strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap between the stator and rotor
4. Standard Processing capacity range 100-5000ml, suitable for a variety of application needs
5. Speed range 8000-28000rpm, digital display, intuitive operation
6. The working head material is SS316L, graphite ceramic, FKM, with high temperature resistance up to 180 ° C
Principle
High shear dispersion Mulser produces high circumferential velocity and high-frequency mechanical effects through the high-speed swirl/spin of the rotor, so that the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor. Under the combined action of mature technology and appropriate additives, the insoluble solid phase, liquid phase and gas phase are uniformly dispersed and emulsified instantaneously, and through high-frequency cycles, stable and high-quality products are finally obtained.
Applications
Suitable for industrial fields that require efficient decentralized emulsification, such as chemical, pharmaceutical, food, cosmetics, etc
Standards
Power standard: 220V/50/60HZ
Steps
1. Select the appropriate type of equipment according to the Processing capacity
2. Connect power 220V/50/60HZ
3. Rotation speed setting through LED display, range 8000-28000rpm
4. Start the device for decentralized emulsification
5. Monitor the processing process to ensure uniform dispersion of materials
Notice
Make sure the power supply meets 220V/50/60HZ standards
* Processing capacity should be in the range of 100-5000ml
* Maximum processing viscosity does not exceed 5000cp
* Operating temperature does not exceed 180 ℃
Periodic inspection of equipment structural components such as cutter heads, motor connectors, etc
* Speed range to avoid speeding
