Overview

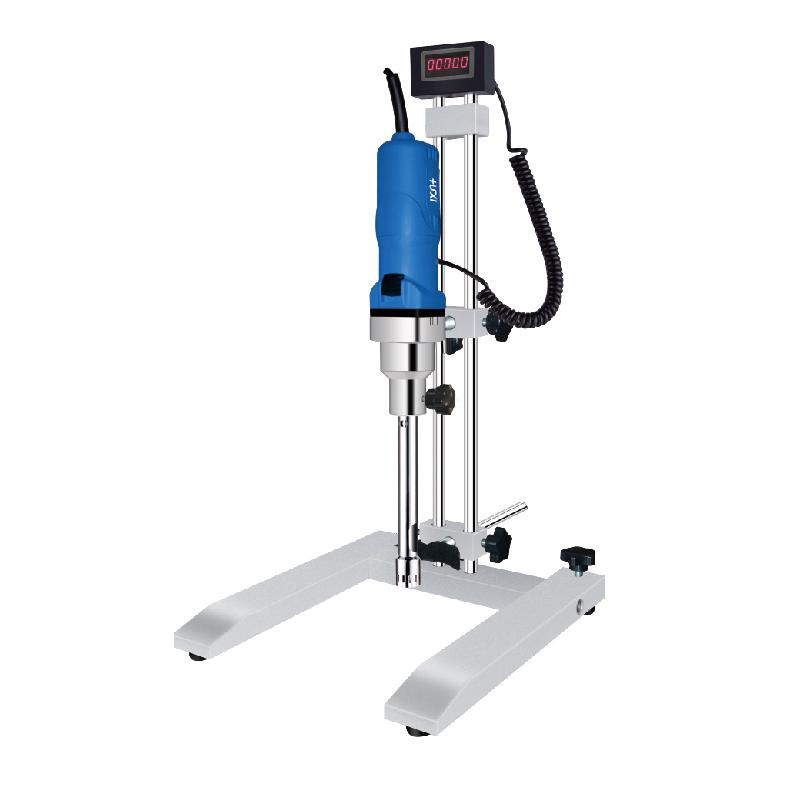

The HUXI HR-500D/25T5 High Shear Dispersion Mulser is a highly efficient device that quickly and uniformly distributes incompatible phases into continuous phases. It generates strong kinetic energy through high-speed swirl/spin, enabling materials to undergo a combination of shearing, extrusion, and friction in narrow gaps, achieving fine dispersion emulsification and ultimately achieving stable and high-quality products.
Features
1. Efficient and fast uniform emulsification of immiscible phases
2. Rotor high speed swirling/spinning produces high circumferential speed and high frequency mechanical effects
3. The material is subjected to a variety of forces in the narrow gap between the stator and rotor
4. Digital LED display Rotation speed, intuitive operation
5. The working head material is SS316L and PTFE, corrosion resistance and high temperature resistance
6. Speed range, up to 8000-28000rpm, adapt to different processing needs
Principle
High shear dispersion Mulser produces high circumferential velocity and high-frequency mechanical effects through high-speed swirl/spin of the rotor, so that the material is subjected to mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tear and turbulence in the narrow gap between the stator and the rotor. With the cooperation of technology and additives, the insoluble solid phase, liquid phase and gas phase are uniformly dispersed and emulsified in an instant, and stable products are obtained through high-frequency circulation.
Applications
Chemical, pharmaceutical, food, cosmetics, laboratory research
Standards
Power standard: 220V/50/60HZ
Steps
1. Select the appropriate model according to the Processing capacity, such as HR500D-25T5 processing 50-5000ml
2. Connect the power supply and ensure that the voltage is 220V.
3. Rotation speed is set through LED display, reference gear A-G corresponds to 8000-28000rpm
4. Start the equipment so that the material is dispersed and emulsified at the cutter head
5. Monitor the processing process to ensure maximum viscosity of 5000 cp and temperature of 120 ° C
6. Turn off the power after completion and clean the work head
Notice
• Power supply voltage 220V to avoid overload
• Processing viscosity does not exceed 5000cp to prevent equipment damage
• Operating temperature limit of 120 ℃, avoid overtemperature operation
• Check whether the material of the cutter head and working head is applicable before use
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Regularly clean and maintain equipment to extend service life
