Overview

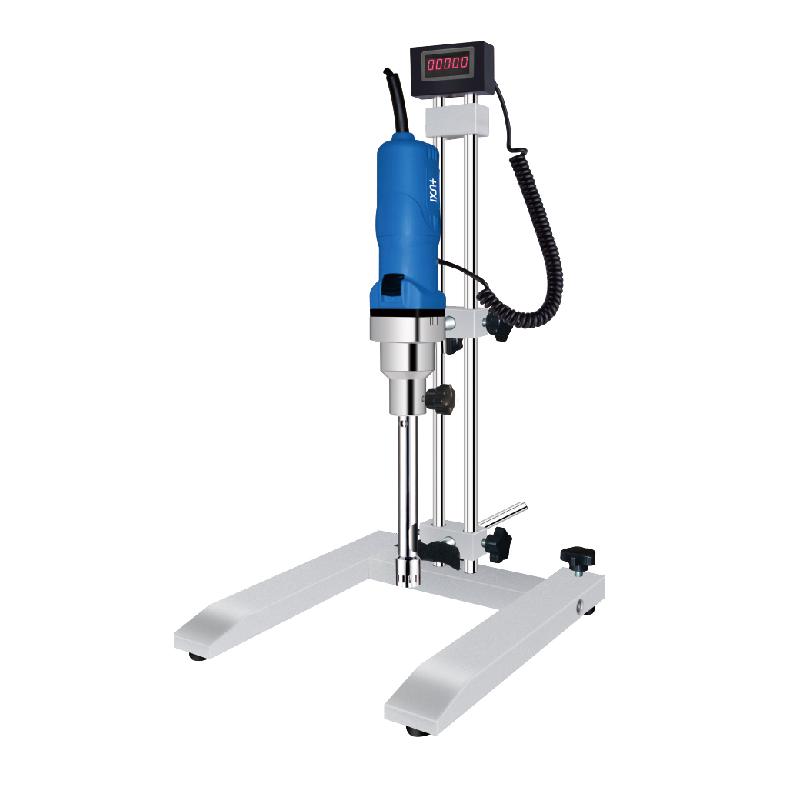

The high shear dispersion Mulser HR-500D/25T3 is a HUXI brand product that can effectively, quickly and uniformly distribute one or more incompatible phases into another continuous phase. Through the high circumferential velocity and high frequency mechanical effects generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, resulting in instant uniform and fine dispersion emulsification.
Features
1. Efficient and fast uniform emulsification
2. Rotor high speed swirling/spinning produces high circumferential speed
3. High-frequency mechanical effects bring strong kinetic energy
4. Multiple comprehensive effects: mechanical shearing, hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tearing, and turbulence
5. Instant uniform fine dispersion emulsification
6. Obtain stable and high-quality products through high-frequency cycles
Principle
High shear dispersion Mulser through the rotor high speed swirl/spin generated by the high circumference speed and high frequency mechanical effect of the strong kinetic energy, so that the material in the stator, rotor narrow gap by strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence and other comprehensive effects. So that the insoluble solid phase, liquid phase, gas phase in the corresponding mature process and the appropriate amount of additives under the joint action of instant uniform fine dispersion emulsification, after high frequency cycle, and finally get a stable high quality product.
Applications
Solid phase, liquid phase, gas phase dispersion emulsification
Standards
Power standard: 220V/50/60HZ
Steps
1. Select the appropriate Processing capacity, viscosity and line speed according to the model
2. Connect power 220V/50/60HZ
3. Speed range 8000-28000rpm set by LED display
4. Select the appropriate gear: A gear 8000rpm, B gear 12000rpm, C gear 16000rpm, D gear 19000rpm, E gear 22000rpm, F gear 25000rpm, G gear 28000rpm
5. Start the device for decentralized emulsification
Notice
• Maximum processing viscosity does not exceed 5000cp
• Operating temperature does not exceed 120 ℃
• Processing capacity range is 100~ 3000ml
• Make sure the power supply meets the 220V/50/60HZ standard before use
• Note that the maximum linear speed of the rotor is 27m/s
• The working head material is SS316L PTFE, pay attention to the material applicability
