Overview

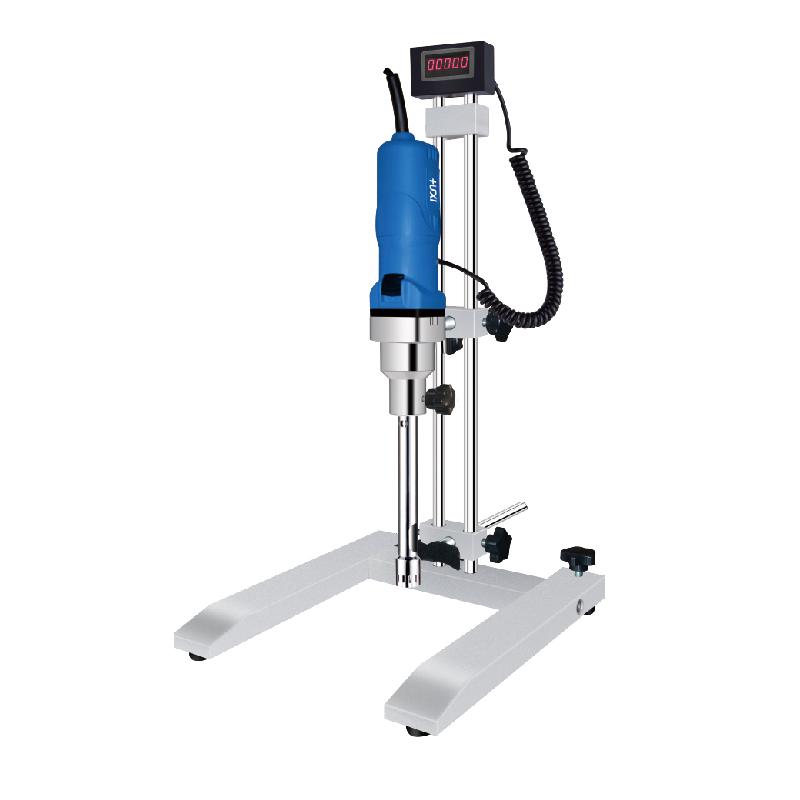

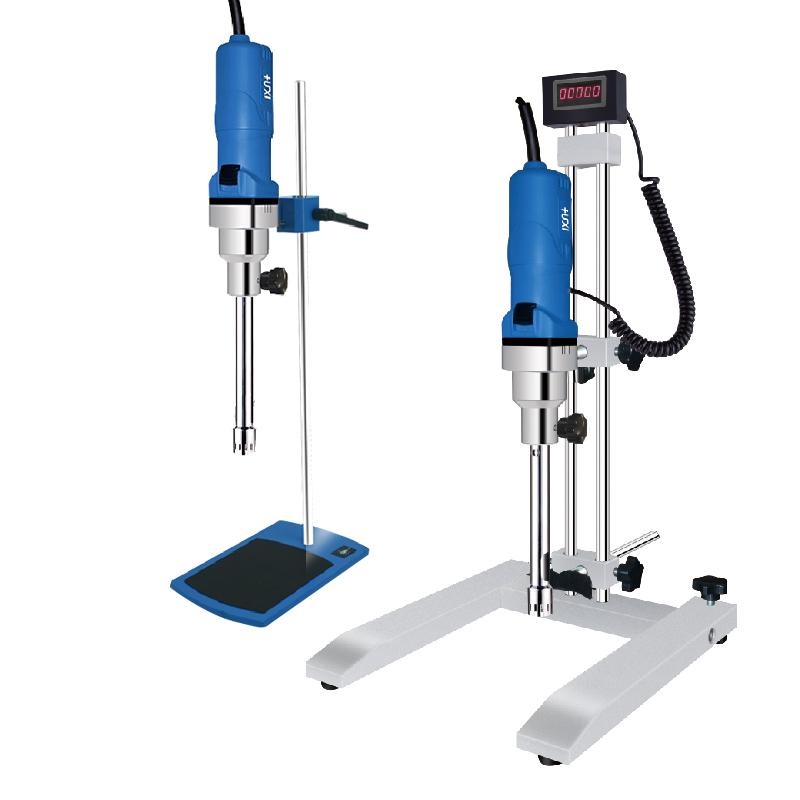

The high-shear dispersion Mulser HR-500D/25T1 is a HUXI brand product that can effectively, quickly and uniformly distribute one or more phases into another continuous phase, while under normal circumstances each phase is incompatible with each other. The high circumferential velocity and high-frequency mechanical effects generated by high-speed swirl/spin enable the material to be subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap of the stator and rotor, achieving instantaneous uniform fine dispersion emulsification of insoluble solid phase, liquid phase and gas phase.
Features
1. Processing capacity range, standard Processing capacity 100~ 7000ml
2. Speed range, 8000~ 28000rpm adjustable
3. High rotor line speed, up to 27m/s
4. Digital display Rotation speed, intuitive operation
5. Working head material is SS316L PTFE, corrosion resistance
6. High temperature resistance, Operating temperature up to 120 ℃
7. Maximum processing viscosity up to 8000cp
Principle
The equipment brings strong kinetic energy through the high circumferential speed and high-frequency mechanical effect generated by the high-speed swirl/spin of the rotor, so that the material is subjected to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, impact tear and turbulence in the narrow gap of the stator and rotor. Under the combined action of the corresponding mature process and appropriate additives, the immiscible solid phase, liquid phase and gas phase are uniformly dispersed and emulsified in an instant, and after high-frequency cycle, a stable high-quality product is finally obtained.
Steps
1. Select the appropriate gear according to the characteristics of the processed material
2. Connect the 220V/50/60HZ power supply
3. Rotation speed through LED display
4. Add the material to the processing container
5. Start the device to start decentralized emulsification
6. Observe the treatment effect, adjust Rotation speed or time
7. Turn off the power after processing is completed
Notice
• Power supply voltage meets equipment requirements 220V before use
• Be careful that the material temperature does not exceed 120 ° C during operation
• Processing capacity according to material viscosity, maximum no more than 7000ml
• Regularly check whether the connections of all parts of the equipment are firm
• Keep the work head clean to avoid cross-contamination
• Pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
