Overview

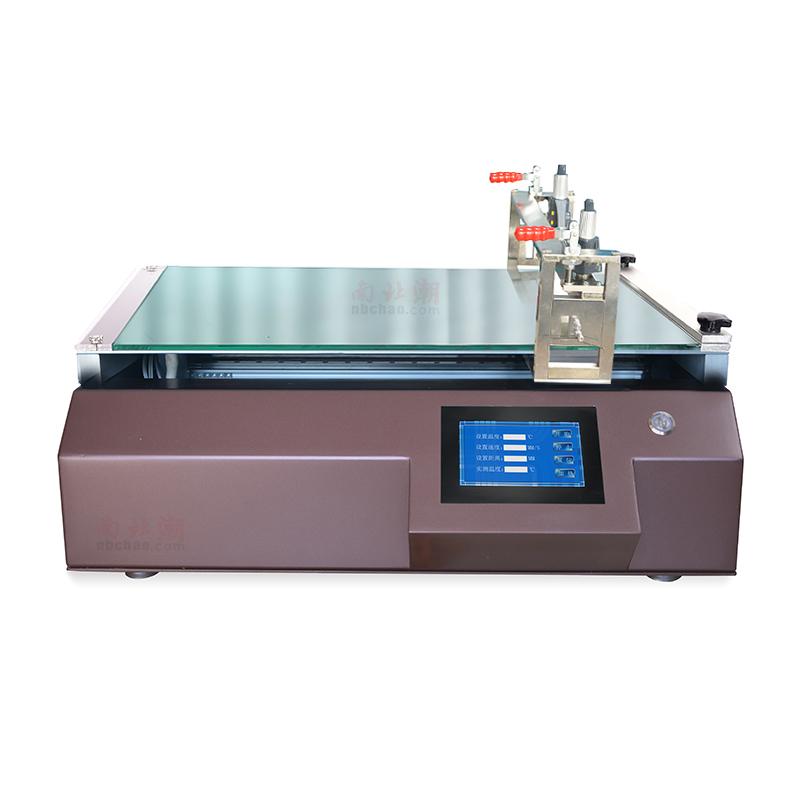

TBJ-B1-DJ1 Automatic Film Applicator is a small Spreader equipment in China laboratory. It adopts imported accessories and is cheap. It is favored by multinational R & D institutions, well-known universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by precisely controlling the speed and stable pressure of Spreader, effectively solves the problem of inconsistent artificial film, and significantly improves film reproducibility.
Features
1. Using imported accessories, reliable quality
2. Excellent price and high cost performance
3. Spreader accuracy, up to +/- 0.003mm
4. Spreader thickness range, 0~ 10mm adjustable
5. Large adjustable range of coating speed, 5~ 200mm/s
6. Touchscreen control, easy to operate
7. Infinitely variable speed control, flexible adjustment
8. Optional Accessories with Rich Functions
9. Support customization functions to meet individual needs
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses Blade Coating, which is fixed to the substrate by a mechanical fixture, and the digital setting of Spreader Travel ensures that a uniform wet-film is Spreader on different substrates, which greatly improves the reproducibility and conformity of the film.
Applications
Laboratory R & D, Research Institutions, University Education, Paint Testing, Adhesive Spreader
Steps
1. Prepare substrate and place on Glass baseplate
2. Use mechanical fixtures to fix the substrate
3. Set Spreader parameters (Speed, Travel, etc.) through Touchscreen
4. Start the Device for Auto Spreader
5. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Select the appropriate Spreader parameters according to the thickness of the substrate
• Regularly clean drawdown blades and baseplates to ensure Spreader mass
• Pay attention to safety during operation and avoid contact with moving parts
• Customized functions need to confirm technical parameters in advance
