Overview

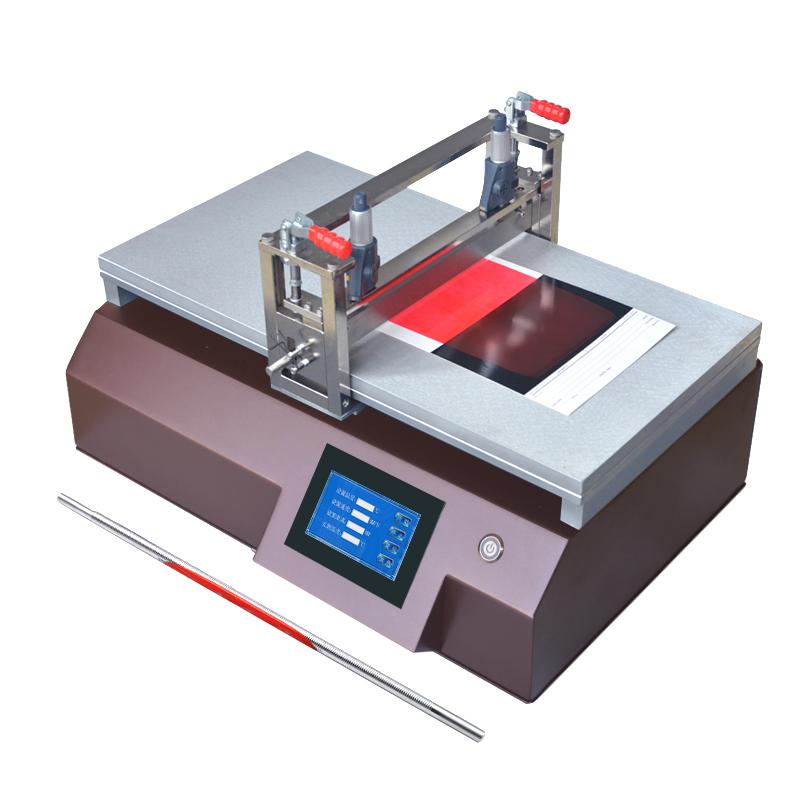

TBJ-X3-DJ1 Automatic Film Applicator is a small Lab Film Applicator for experiments. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the uniformity and smoothness of Spreader's gluing are guaranteed, the problem of artificial film inconsistency is solved, and the film reproducibility is improved. One China and one imported bar are standard.
Features
1. Using imported accessories, the price is good and cheap
2. Control the speed and stable pressure to ensure the uniformity and smoothness of the Spreader
3. Improve film reproducibility and reduce artificial differences
4. Standard China bar and imported bar with accuracy up to 1μm
5. Support a variety of coating methods: bar and drawdown blade
6. Wide coating speed range, 5~ 200mm/s, support customization
7. Large effective coating area, 500 * 400mm, can be customized
8. Vacuum chucking method for substrate fixing
9. Control mode is Touchscreen control
10. Support heating function, Temperature range RT +~ 180 ℃
11. Optional Accessories and Customization
Principle
Automatic Film Applicator achieves accurate Spreader wet-film on different substrates by controlling the Spreader speed and the steady pressure applied to the film applicator. Two coating methods, bar and drawdown blade, combined with Vacuum chuck to fix the substrate, ensure the uniformity and reproducibility of the Spreader process.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare substrate and place on Vacuum chuck board
2. Select the coating method (bar or drawdown blade) and install the corresponding tool
3. Set Spreader parameters via Touchscreen, including Speed, Travel, and Thickness
4. Start the Device for Auto Spreader
5. After completion, remove the sample for subsequent processing
Notice
• Make sure the power supply of the device is 220V 50Hz before use
• Spreader thickness should be determined according to bar type or drawdown blade setting
• Vacuum chuck needs to be kept clean to avoid clogging
• When using the heating function, pay attention to the Temperature Uniformity control within +/- 3 ° C
• Customized functions need to confirm compatibility in advance
• Avoid exceeding the parameters specified in the manual when operating
