Overview

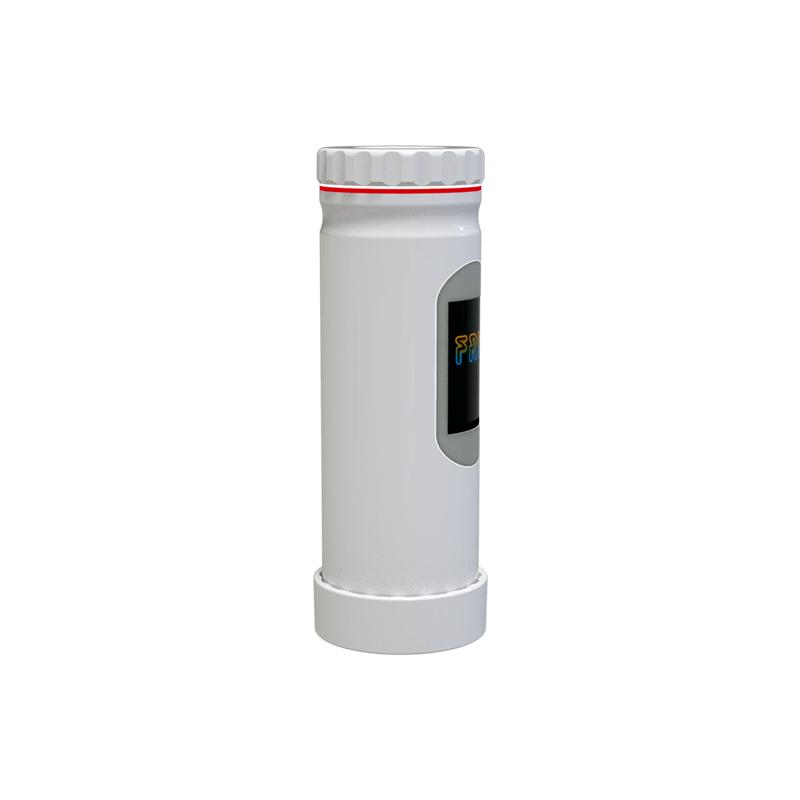

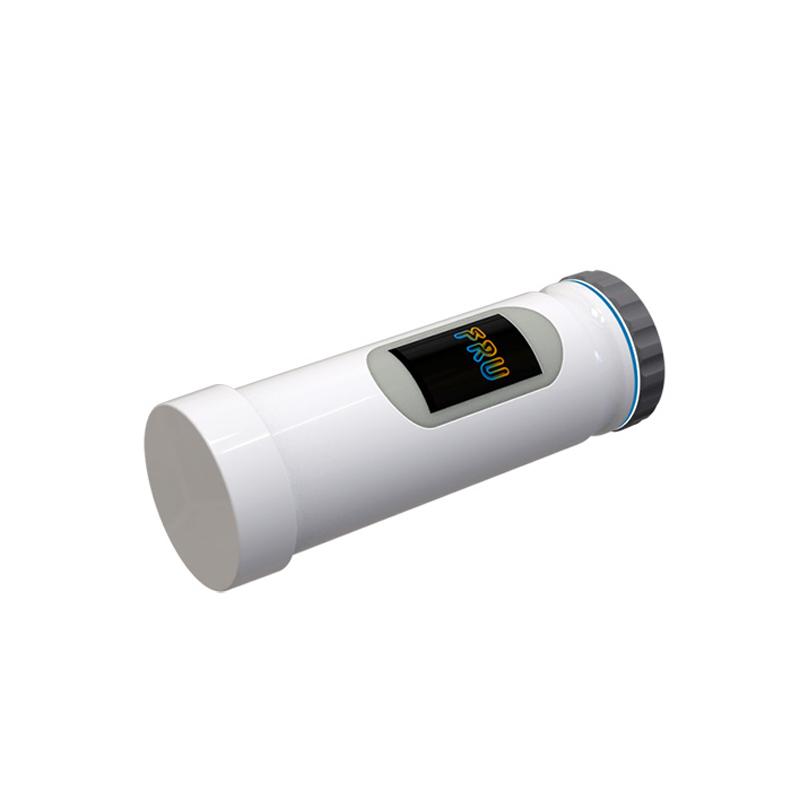

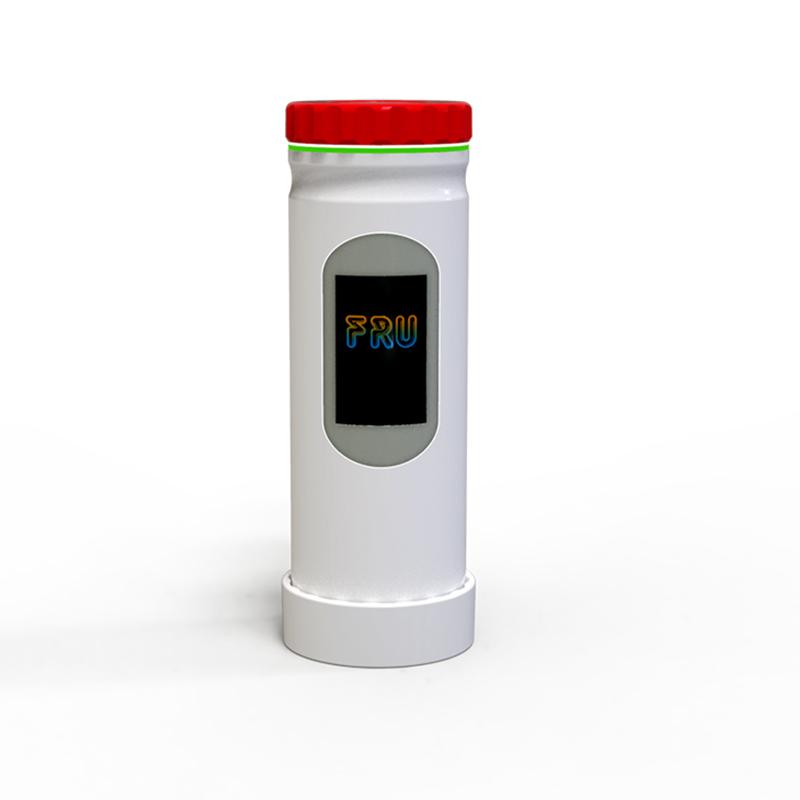

The Color Cat Colorimeter is a new type of practical colorimeter launched by the IWAVE brand. It has complete color measurement functions and auxiliary accessories, and can be applied to testing work in a variety of industries. It is a cost-effective China colorimeter.
Features
1. High-end spectroscopic principle, using SCI light-containing mode, full LED Illuminant and UV lamp support, up to 34 kinds of Color space, ten years of scientific and technological experience accumulated to create, with reliable quality assurance.
2. Patented knob design, specially made ergonomic knob/pressing integrated button, the operation is fast and effective, and the measurement is completed with one key.
3. Quickly identify the color number, connect to the cloud color library card, check it anytime, anywhere, and check the color number accurately.
4. APP Bluetooth connection, support Bluetooth connection function, one-click connection with mobile app to analyze data, simple and convenient operation.
5. USB computer software, equipped with Type-C interface, supports Windows/IOS/Android, exclusive PC software provides rich functional extensions, and various forms of report file output.
6. Massive Color Chart library support, a variety of color library Data storage support, can identify more than 10,000 Colors, to ensure that all kinds of Color testing needs.
7. Independent Automatic calibration, system intelligent Automatic calibration, just one press without any tedious operation.
8. Intelligent color difference calculation, automatic calculation of color difference results, green/red background light display, qualified or not, at a glance.
9. Small and convenient, the small size of φ 31X96mm, the weight is only 80g, light and stable, easy to carry.
10. Measurement caliber protection, with its own Optical inspection protective sheet to protect the measurement caliber, moisture-proof, dustproof and pollution-proof, to ensure normal use.
Principle
Using d/8 Geometry conditions and SCI (including specular reflection) spectroscopy principle, using full Light spectrum LED Illuminant, measurement Wavelength range 400~ 700nm, interval 10nm, Color measurement is realized through Automatic calibration and intelligent color difference calculation.
Steps
1. Use the knob/press the integrated button to complete the measurement with one click.
2. Connect the cloud color library card to check the color number.
3. Connect the mobile app to analyze the data through Bluetooth.
4. Use the Type-C interface to connect the computer software to output the report.
Notice
• Optical inspection protective sheet comes with the measurement diameter, and attention should be paid to moisture-proof, dust-proof and pollution-proof to ensure normal use.
• Accuracy is not guaranteed Measurement, attention should be paid when using.
• Instrument master standard library is not available, relying on cloud color library card.
• Operating languages support Simplified Chinese and English to ensure the correct language is selected.
