Overview

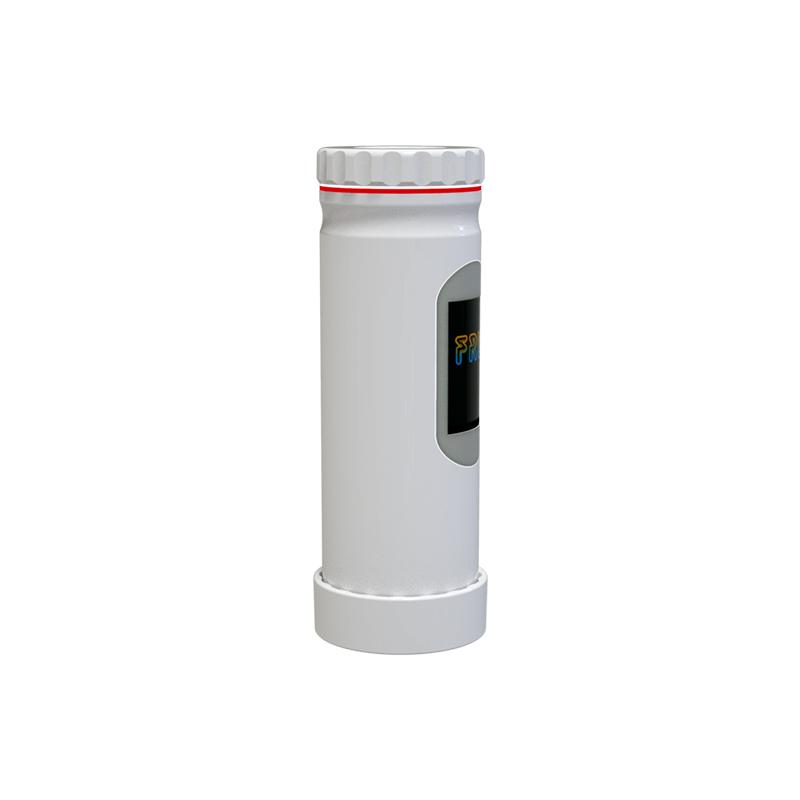

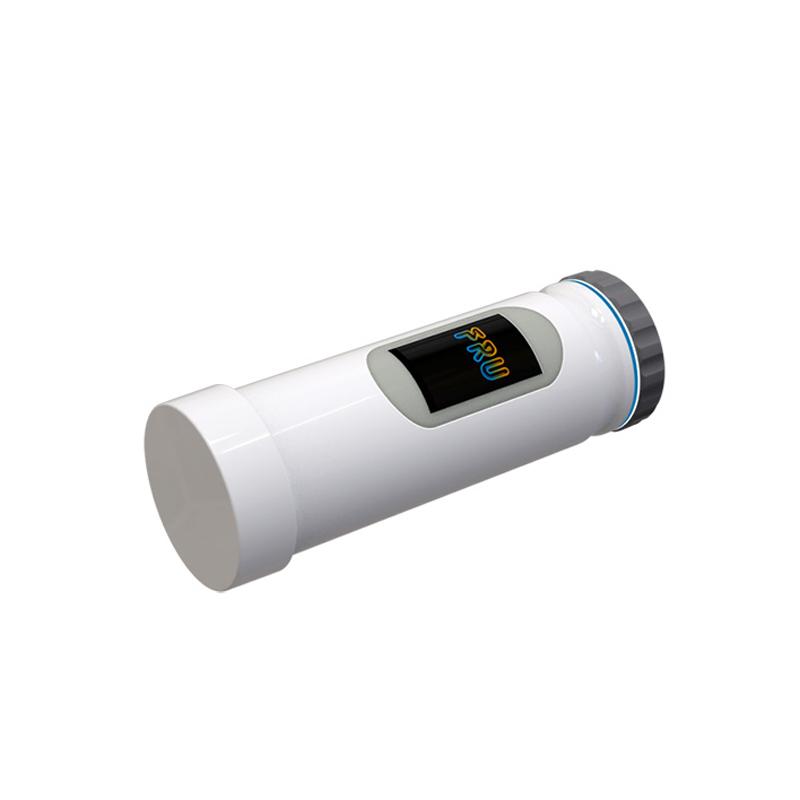

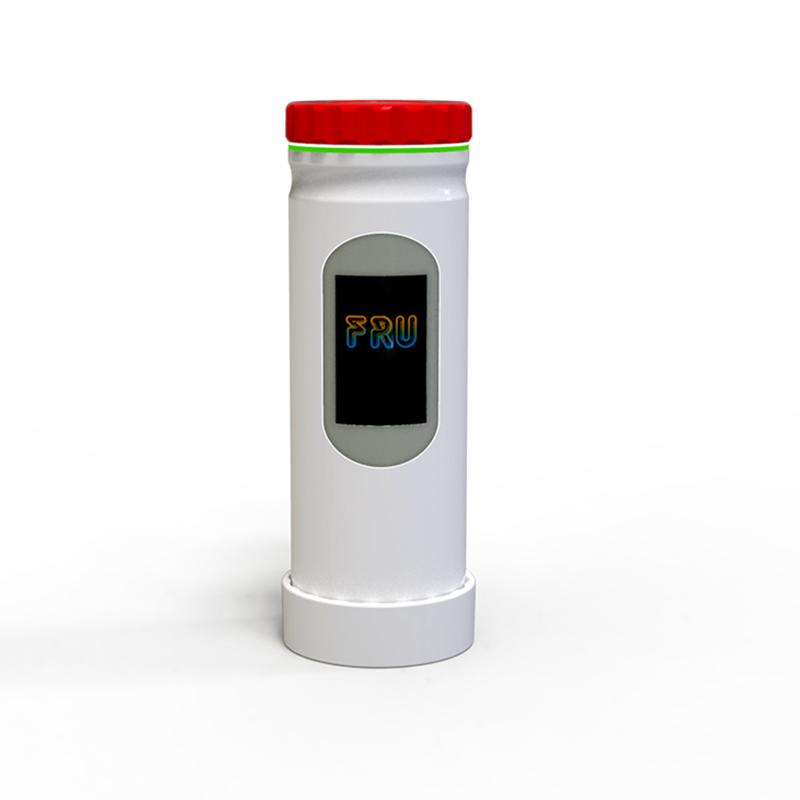

The Color Cat Colorimeter is a new practical color measuring equipment launched by the IWAVE brand, providing three models for customers to choose from. The instrument has complete color measuring functions and auxiliary accessories, and can be widely used in color testing work in many industries. It is a cost-effective China color measuring instrument.
Features
1. Adopt high-end spectroscopic principle, SCI light-containing mode, full LED Illuminant and UV lamp support, 34 kinds of Color space, ten years of scientific and technological experience accumulation
2. Patented knob design, ergonomic knob/pressing integrated button, fast and effective operation
3. Quickly identify the color number, connect to the cloud color library card, and accurately check the color number
4. APP Bluetooth connection function, one-click connection with mobile app to analyze data
5. USB Computer Software support, equipped with Type-C interface, compatible with Windows/IOS/Android system
6. Massive Color Chart Library Support, Can Recognize Over 10,000 Colors
7. Automatic calibration system, intelligent Automatic calibration without cumbersome operation
8. Intelligent color difference calculation function, automatically calculate the color difference result and display it with green/red background light
9.Compact and convenient design, size φ 31X96mm, weight 80g, easy to carry
10. Measurement caliber protection, with its own Optical inspection protective sheet Moisture-proof, dust-proof and pollution-proof
Principle
Color Cat Colorimeter uses d/8 Geometry conditions and SCI (including specular reflection) Measurement mode, using full Light spectrum LED Illuminant, accurate measurement in the 400~ 700nm Wavelength range through 10nm wavelength interval. The instrument automatically completes the collection and analysis of Color data through swirl/spin/press integrated operation.
Applications
Color testing for a variety of industries
Steps
1. Operate by swirl/spin/pressing the integrated button
2. Complete the measurement with one click
3. Automatic calibration with just one click
4. Connect the cloud color library card to check the color number.
5. Analyze data by connecting mobile app via Bluetooth
6. Use the Type-C interface to connect to the computer software
Notice
• Pay attention to protect the measurement caliber to prevent pollution
• Automatic calibration before use
• Optical inspection protective sheet clean
• Operate swirl/spin/press the integrated button according to the specifications
