Overview

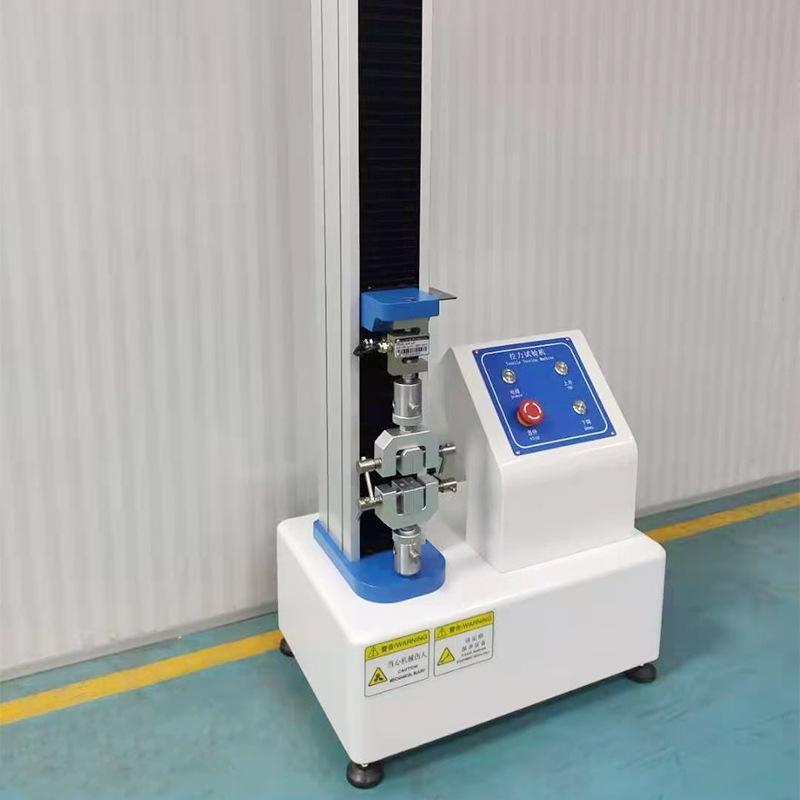

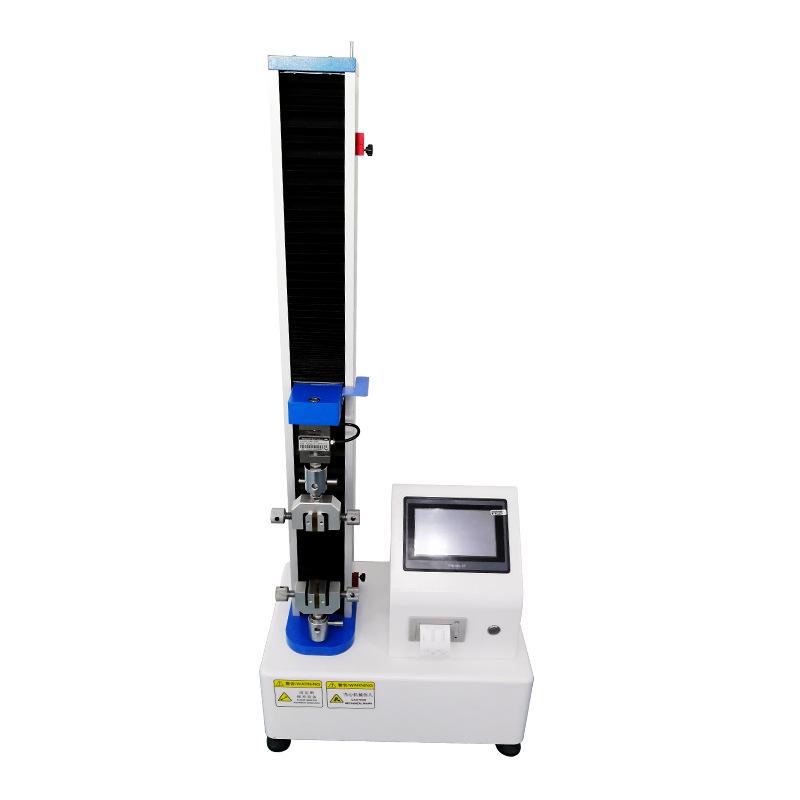

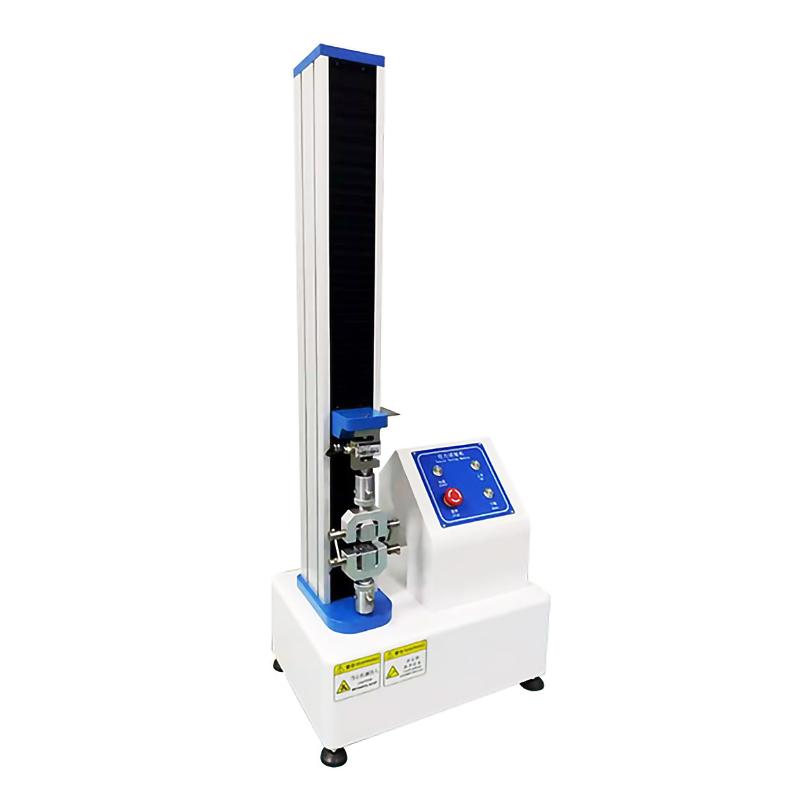

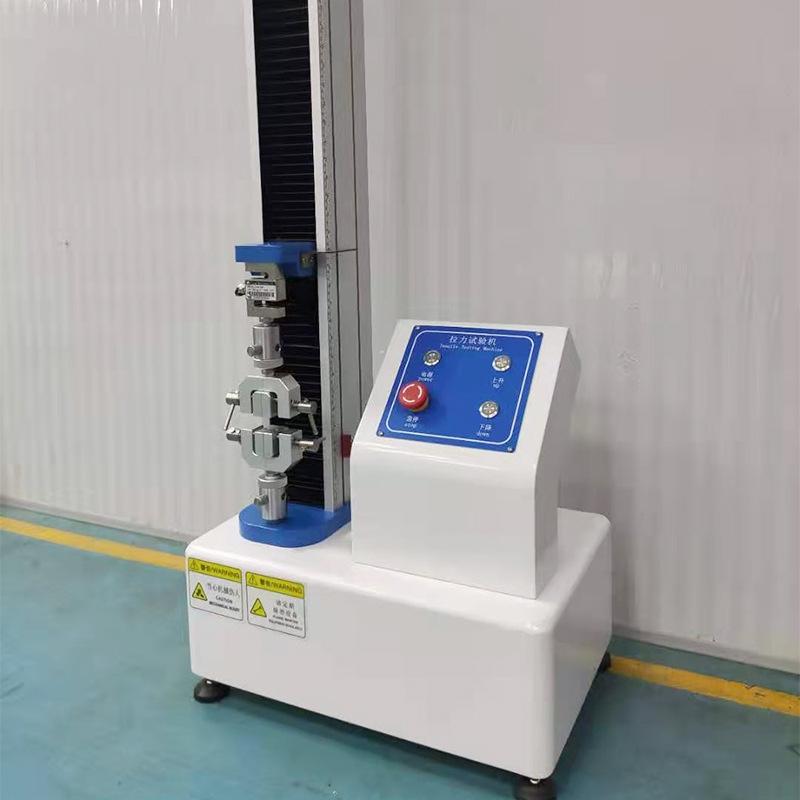

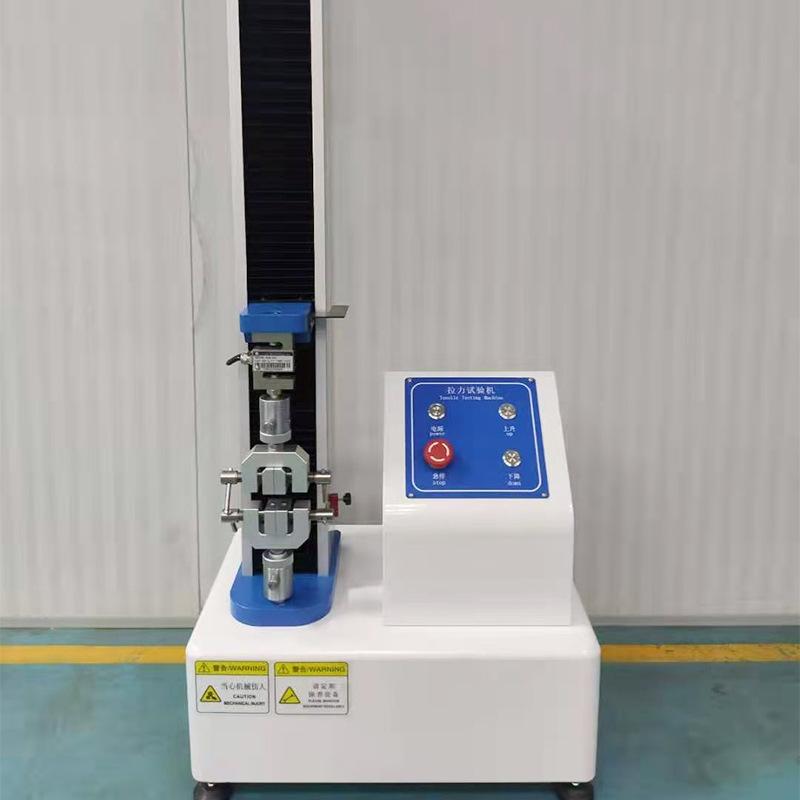

YOUKE YK3659 Touchscreen single column UTM is suitable for rubber and plastic materials, paper products, color printing Encasement, adhesive tape, luggage handbags, Spinning & weaving, daily chemical, food, wire electronics and other industries. It can test the physical performance of various materials and finished products, work in progress. This product adopts paint-treated aluminum extrusion sealing plate with built-in High Accuracy screw and guide column. The measurement and control system has high data collection speed. The test results are output by LCD display or printer. The performance is stable and reliable. Measuring accuracy is high, and the operation is easy and easy to understand.
Features
1. The structure adopts paint-treated aluminum extrusion sealing plate with built-in High Accuracy, Low Resistance, No Gap Screw and Guide Column
2. High data collection and operation speed of measurement and control system
3. Test results can be displayed by LCD or printed out by printer
4. Stable and reliable product performance, Measuring accuracy
5. Easy to operate
6. Various capacity options: 5, 10, 20, 50, 100, 200Kg
7. Test speed range 50~ 500mm/min can be adjusted arbitrarily
8. Travel up to 600mm without fixture
9. The unit of force value can be switched: kgf, gf, N, kN, Ibf
10. Stress units can be switched: MPa, kPa, kgf/cm2, Ibf/in2
11. The deformation unit can be switched: mm, cm, in
12. Multiple shutdown methods: upper and lower limit safety settings, emergency stop button, specimen damage sensing
Principle
This machine drives High Accuracy Screw and Guide Column by AC speed control motor to realize physical performance test such as tensile and compression of test materials. The measurement and control system collects data and calculates at high speed, and parameters such as force value and deformation are displayed or printed out through liquid crystal to ensure test accuracy and Stability.
Applications
Rubber and Plastic Materials, Paper Products, Color Printing Encasement, Adhesive Tape, Luggage Handbags, Spinning & weaving, Daily Chemicals, Food, Wire Electronics
Steps
1. Choose the right capacity and fixture
2. Install the specimen in the fixture
3. Test speed and unit parameters
4. Start the test and observe the LCD display data
5. After the test is completed, output the result through the printer or record it manually
6. Use the emergency stop button or safety settings to handle abnormal situations
Notice
• Power supply voltage AC220V, 50/60Hz, 10A or specified
• Check that the fixture is firmly installed before testing
• Avoid overloading and choose the right capacity
• Regular maintenance of screws and guide columns
• Pay attention to safety settings and emergency stop button position when operating
• Keep the machine clean to prevent dust from affecting the accuracy
