Overview

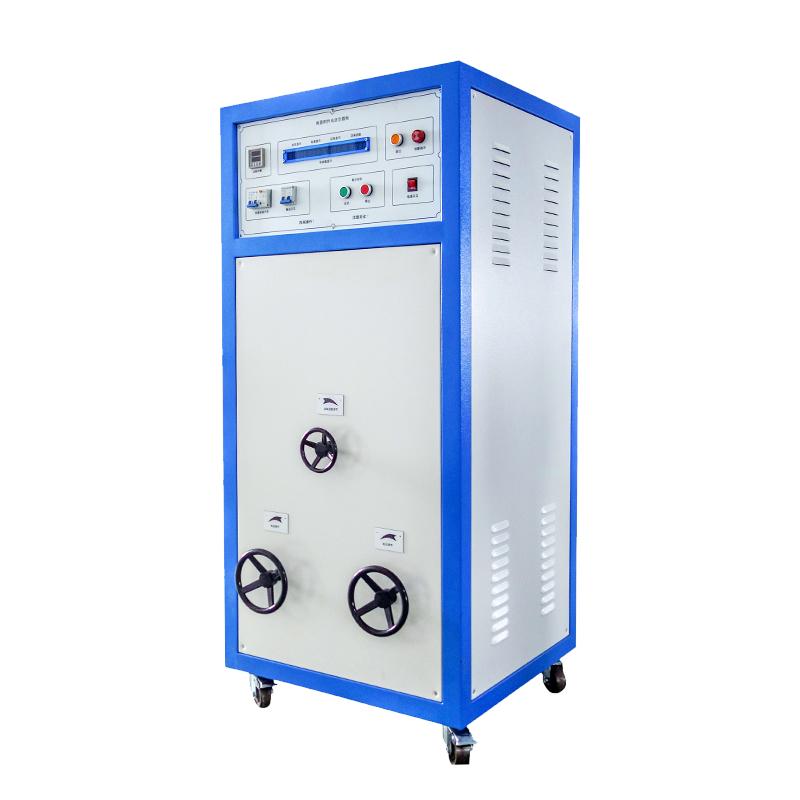

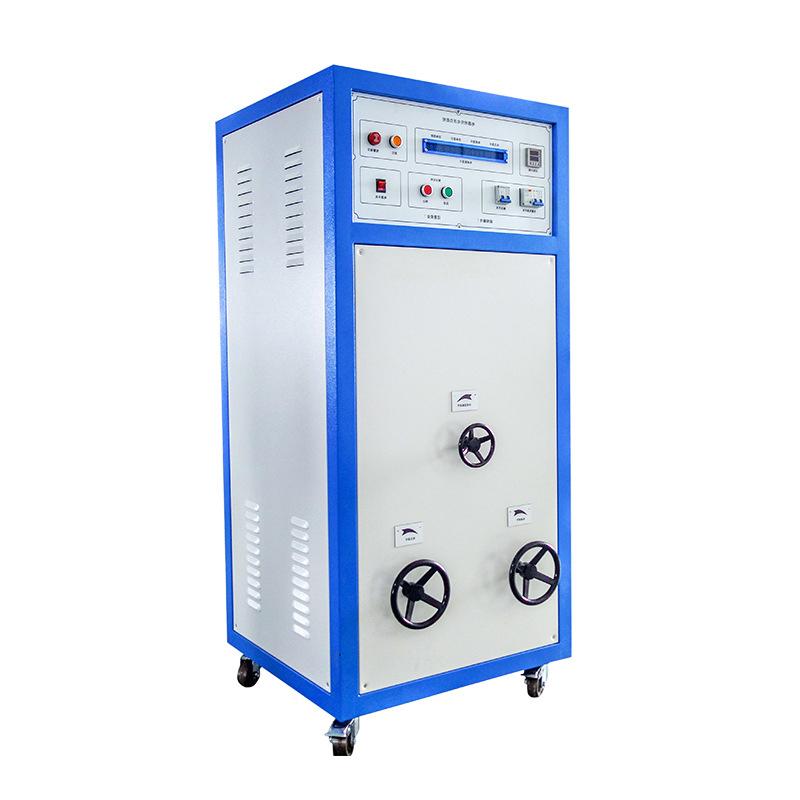

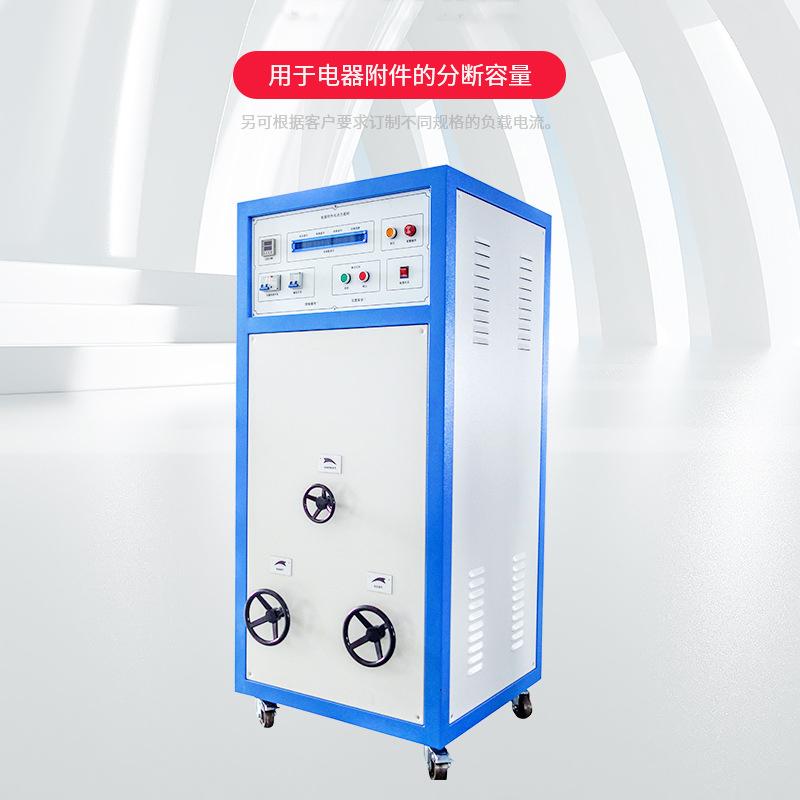

This load cabinet is a power supply Accessories power load cabinet of YOUKE brand model YK3150. It is used for testing the breaking capacity and normal operation of electrical Accessories, simulating the electrical life and on-off capacity of electrical products in a live state. Load currents of different specifications can be customized according to customer requirements.
Features
1. Output current 3~ 30A continuously adjustable, digital display, or can be customized according to customer requirements
2. Ammeter test current 0-200A, accuracy +/- 0.1A
3. No-load output voltage 5~ 300V continuously adjustable, digital display
4. Output power factor 0.3~ 0.999 continuously adjustable, digital display
5. The number of times of the on-and-off cycle counter can be preset from 1 to 999,999, and the output current can be stopped when the count reaches the preset number of times
6. The load output can be adjusted independently, and the load current, load voltage, Power factor, and test times can be displayed independently
7. Power supply voltage AC 220V, 50Hz
8. The workstation is one workstation
Principle
This load cabinet conducts electrical life and on-off capacity test by simulating the use of electrical products in a live state. It can adjust the output current, voltage and Power factor, and control the on-off cycle through a counter to test the breaking capacity and normal operating performance of electrical Accessories.
Applications
Electrical Accessories Breaking Capacity and Normal Operation Test, Electrical Life Test, On-off Capacity Test
Standards
IEC60884-1、GB2099.1-2008、GB16915-2014、GB15092-2014、UL105
Steps
1. Connect power to AC 220V, 50Hz
2. Set Output Current, Voltage and Power Factor Parameters
3. Preset the number of power-on and power-off cycle counters
4. Start the load output for testing
5. Monitor load current, load voltage, Power factor and test number display
6. When the count reaches the preset number of times, the device automatically stops the output current
Notice
• Power supply voltage AC 220V, 50Hz
When setting parameters, pay attention to the adjustable range of output current, voltage and Power factor
• When setting the counter number, it must not exceed 999,999 times
• During the test, independently monitor the load output parameters
• After the count reaches the preset number of times, the device will automatically stop without manual intervention
