Overview

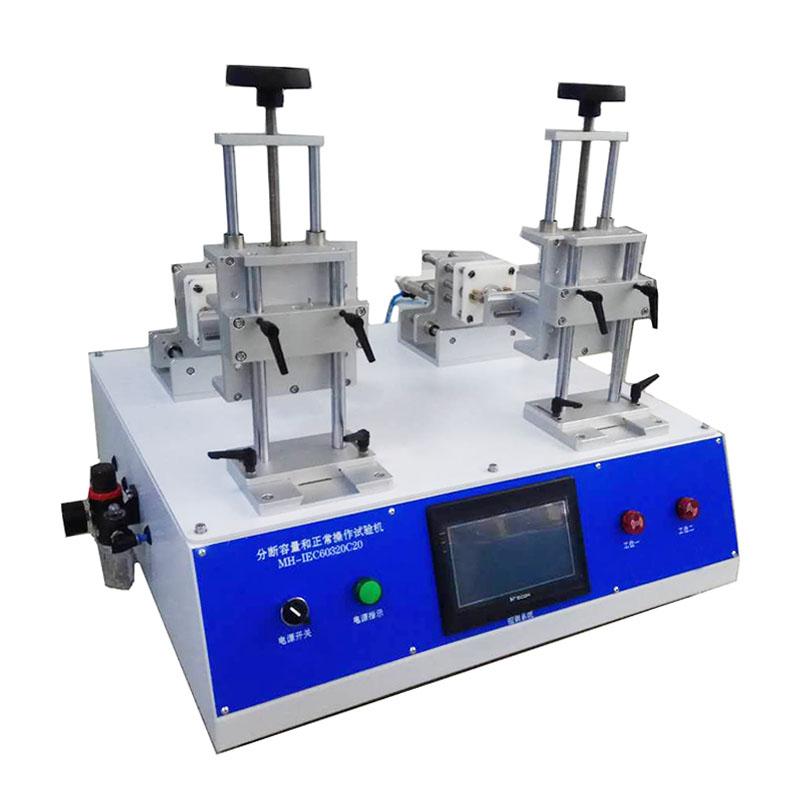

YK-3250 switch and socket on-off life testing machine is a professional testing equipment produced by YOUKE brand, which is used for life testing of rocker switches, toggle switches, key switches, key switches, plugs and sockets and couplers and appliance switch products for household and similar purposes. This testing machine can realize the live life test, normal operation and breaking capacity test of switches and plugs and sockets with the power load cabinet.
Features
1. The working mode is pneumatic, and the air source requires 4 to 6 kilograms/cm2.
The on/off time can be set within the range of 0.2 to 999.9 seconds.
3. The test rate can be adjusted from 5 to 60 cycles per minute.
4. The counter can be preset 1~ 999999 times, supporting current on-off or mechanical action counting.
5. The test station is 4 stations, of which 2 stations are used for switch testing and 2 stations are used for plug and socket testing (can be customized according to customer requirements).
6. Power supply voltage is AC 220V +/- 10%, 50Hz.
Principle
The tester is operated on and off by pneumatic driving of switches and plugs and sockets, and cooperates with the power load cabinet to realize the live life test. Users can set the on/off time, test rate and counting mode to simulate the on-off cycle in actual use to detect the life and performance of the product.
Applications
Rocker switches, toggle switches, key switches, key switches, plug and socket and coupler and appliance switch products for household and similar purposes
Standards
GB 2099.1 - 2008 "Household and similar plug and socket", IEC884-1 "Household and similar plug and socket", VDE 0620-1: 2010-02 "Household and similar plug and socket", GB17465.1-2009 "Household and similar appliance coupler", GB15092.1-2010 "appliance switch"
Steps
1. Connect the equipment air source to ensure that the pressure is within the range of 4 to 6 kg/cm2.
2. Turn on the power supply and set AC 220V +/- 10% at 50Hz.
3. Set the on/off time between 0.2 and 999.9 seconds.
4. Adjust the test rate to 5 to 60 cycles per minute.
5. The preset counter is 1~ 999999 times, and the current on-off or mechanical action counting mode is selected.
6. Install the switch or plug socket to be tested to the corresponding station.
7. Start the testing machine for testing.
Notice
• Ensure that the gas source pressure is stable within the range of 4 to 6 kg/cm2.
• Power supply voltage must meet AC 220V +/- 10%, 50Hz requirements.
When setting the on/off time and test rate, operate within the allowable range of the equipment.
• Counter preset and counting mode selection should be set correctly according to test requirements.
• When installing the product to be tested, ensure that the station correctly corresponds to the switch or plug socket test.
