Overview

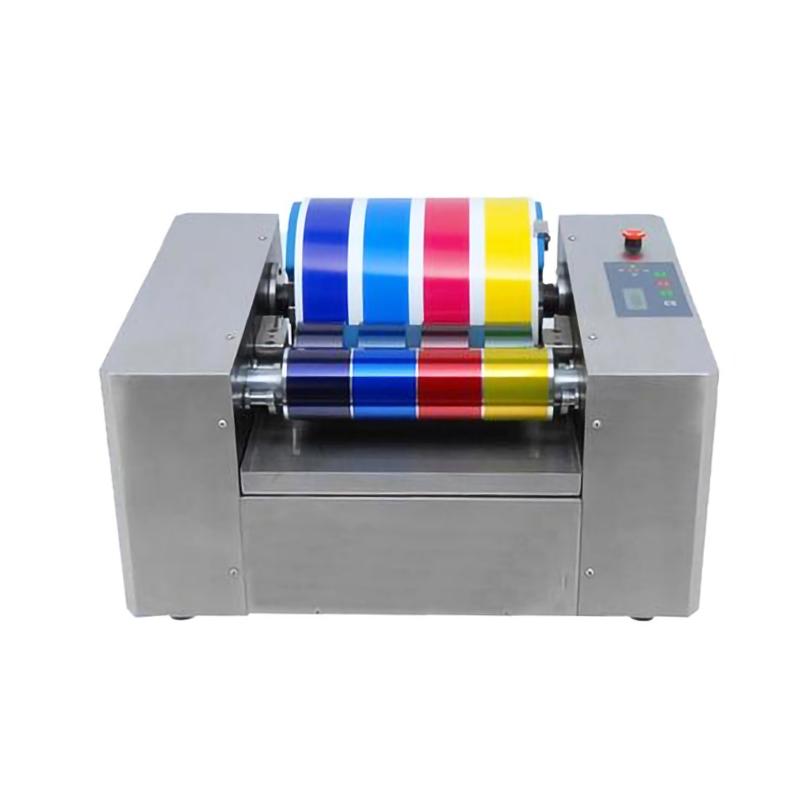

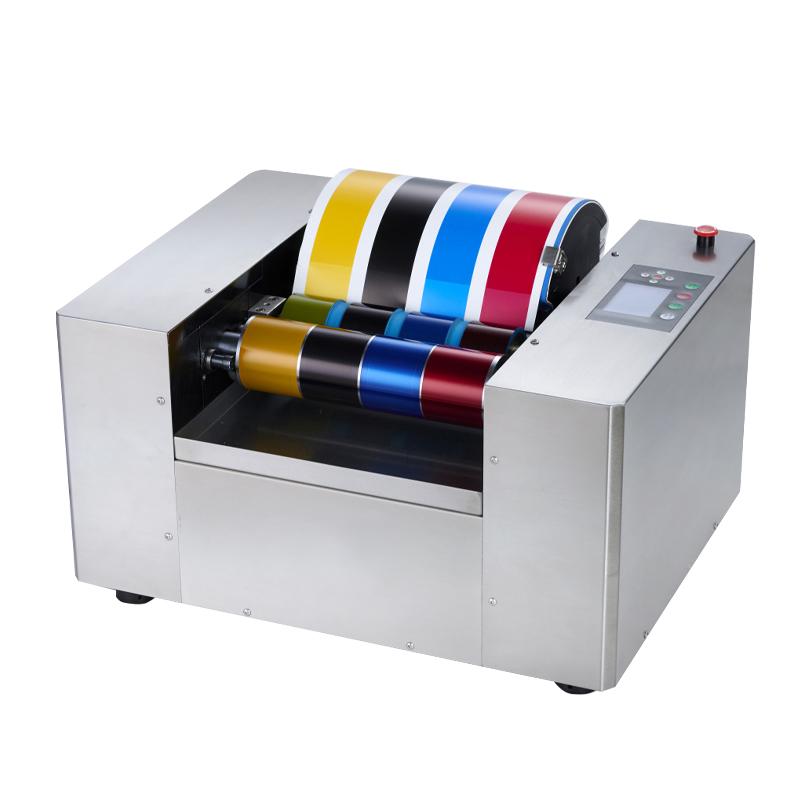

Process Color offset plate color development instrument YK2205 is a fully automatic inks color development device, also known as inks color development instrument, color matching instrument or printing Proofer. It imitates the printing press Working Principle, with adjustable pressure and a wide range of substrates. It is suitable for printing, Encasement, and inks enterprises. It can complete a color display within 2 minutes, accurately predict inks Hue, and prepare Spot Color correctly before printing press, thus saving production time, reducing losses and improving Spot Color Stability.
Features
1. Fully automatic ink leveling method, the ink leveling time can be adjusted
2. Manual adjustment of printing pressure -1~ + 1mm, which can be accurately adjusted according to the thickness of the printing material
3. Uniform ink speed three-speed direct speed regulation: 400, 550, 700rpm
4. The printing speed can be changed to 0-1000rpm, and can be adjusted according to inks and paper characteristics
5. The color development speed is directly adjusted at 10, 15, 20 rpm in the third gear, and the Rotation speed can be adjusted at a frequency of 0-30 rpm
6. The width of the printing roller is 225mm, and the maximum color development area is 225mm × 210mm.
7. Effective area of color bar 45mm x 210mm (4 strips)
8. Adopt German imported rubber roller (VU70), the same material as printing press roller, ordinary rubber roller and UV rubber roller can be replaced
9. Equipped with Taiwan Delta DELTA inverter
10. Net weight 75kg, Ambient Temperature (20 +/- 10 ℃), Humidity < 85%
Principle
The color development device imitates the printing press Working Principle and develops color on the substrate through automatic ink leveling and adjustable printing pressure. It uses frequency conversion speed regulation technology to adjust the ink leveling and color development speed according to the inks characteristics and paper characteristics to achieve accurate inks Hue prediction and Spot Color blending.
Applications
Printing, Encasement, inks
Steps
1. Adjust the printing pressure according to the thickness of the printing material
2. Set the ink leveling time and speed
3. Adjust printing speed and color development speed according to inks and paper characteristics
4. Place the substrate for color development
5. Check Color Bar, Complete Spot Color Blending
Notice
• Ambient Temperature should be kept at 20 +/- 10 ℃
• Environmental humidity should be less than 85%
• Encasement machine weight is 82kg, handling should pay attention to safety
• The printing pressure needs to be adjusted accurately according to the thickness of the printing material
• The ink leveling and color development speed can be adjusted by the frequency converter according to actual needs
