Overview

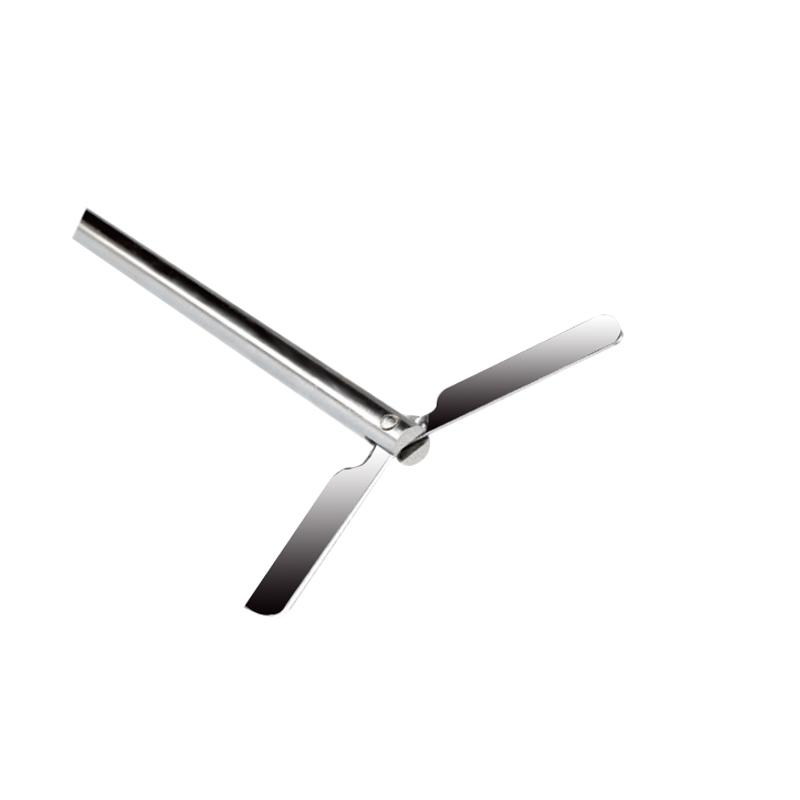

HUXI Centrifugal Impeller (Model: 20030064) is a folding stainless steel Impeller, made of stainless steel, with a pulp diameter of 90mm, a rod diameter of 8mm, and a rod length of 300mm. The product is designed for medium and high speed use, suitable for narrow containers, the blade height is 10mm, and the two blades open with increasing speed, providing efficient stirring performance.
Features
1. Folding design, the blades open with increasing speed
2, stainless steel material, corrosion resistant and durable
3. Suitable for narrow containers
4, medium and high speed use, adaptability
5. Pulp sheet diameter 90mm, rod diameter 8mm, rod length 300mm, specification standard
Principle
The centrifugal Impeller adopts a folded design. When the stirring speed increases, the two blades expand, generating radial flow and shear force. Under medium and high speed operation, the centrifugal force formed by the blade opening promotes liquid mixing, which is suitable for stirring needs in narrow containers to achieve efficient and uniform mixing effect.
Applications
Narrow container mixing, medium and high viscosity liquid mixing, laboratory mixing, industrial mixing process
Steps
1. Check whether the Impeller's specifications meet the requirements
2. Install the Impeller on the mixing equipment
3. High-speed operation according to medium characteristics
4. Start the equipment and observe the opening of the blades with speed
5. After completing the mixing, turn off the equipment for cleaning and maintenance
Notice
* Only suitable for medium and high-speed usage scenarios
Confirm that the container is a narrow port type before use
* Regularly check whether the stainless steel material has corrosion
* Avoid overload operation to prevent damage
* Pay attention to protecting the blade folding structure when cleaning
