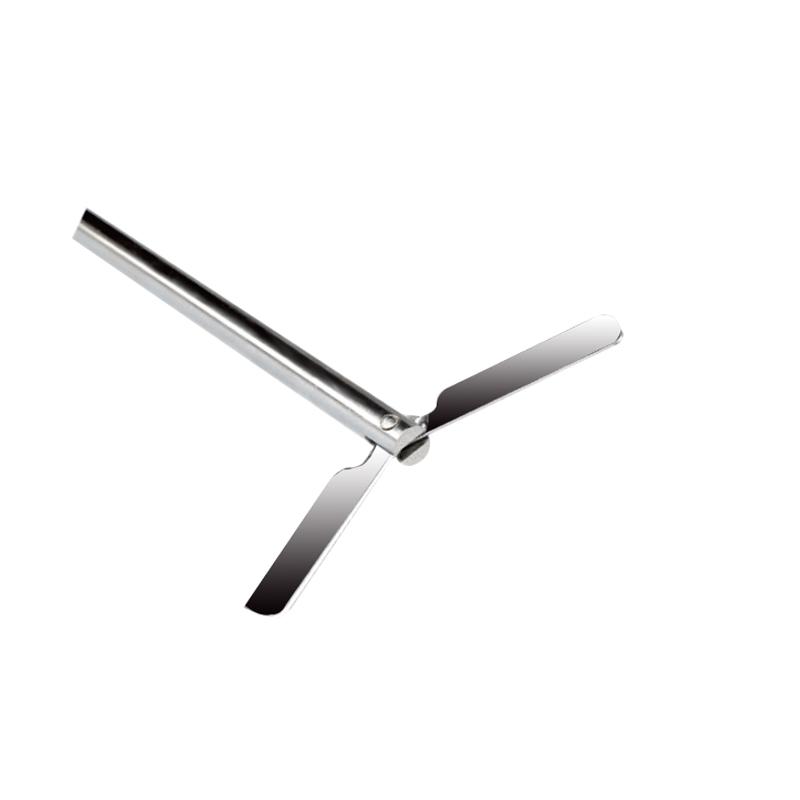

HUXI 20030065 Centrifugal Impeller Folding Stainless Steel Paste DiaMeter 90mm

Name: HUXI 20030065 Centrifugal Impeller Folding Stainless Steel Paste DiaMeter 90mm
Brand: HuXi
SKU: NB036499
Price: 104.0 USD
Availability: InStock

$ 104.00Ex works

Rotation speed increases with the folding of the two blades, pulp diaMeter 90mm, 400mm Rod length, suitable for high-speed mixing operation in narrow containers.

Model

20030065

Get Quote

Category : Laboratory Mixer

Brand : HuXi

SKU : NB036499

Service :The delivery and service By NBCLab.Com

Overview

This centrifugal Impeller is a folding Impeller made of stainless steel, with a pulp diameter of 90mm, a rod diameter of 8mm, and a rod length of 400mm. The Impeller is used at medium and high speeds and is suitable for narrow containers.

Features

1. Made of stainless steel, with strong durability 2. Folding design, the two blades expand with increasing speed 3. Suitable for narrow containers 4. Stable performance at medium and high speed

Principle

The centrifugal Impeller adopts a folded design, and the two blades open as the stirring speed increases, resulting in effective stirring during medium and high speed operation. The liquid is swirled/spun by the blades to form a flow, which is suitable for mixing needs in narrow containers.

Applications

Narrow container mixing, mixing medium and high viscosity liquids

Steps

1. Install the Impeller on the mixing equipment 2. Choose the appropriate installation location according to the size of the container 3. Start the equipment and gradually adjust to the required Rotation speed 4. Monitor the mixing process to ensure normal operation 5. Turn off the device after use and clean the Impeller

Notice

• Check Impeller is nondestructive before use • Make sure the Impeller matches the container size • Avoid speeding and prevent equipment damage • Regular cleaning and maintenance to prolong service life • Pay attention to safety during operation to prevent accidents

Slurry diameter
90mm
rod diameter
8mm
rod length
400mm
