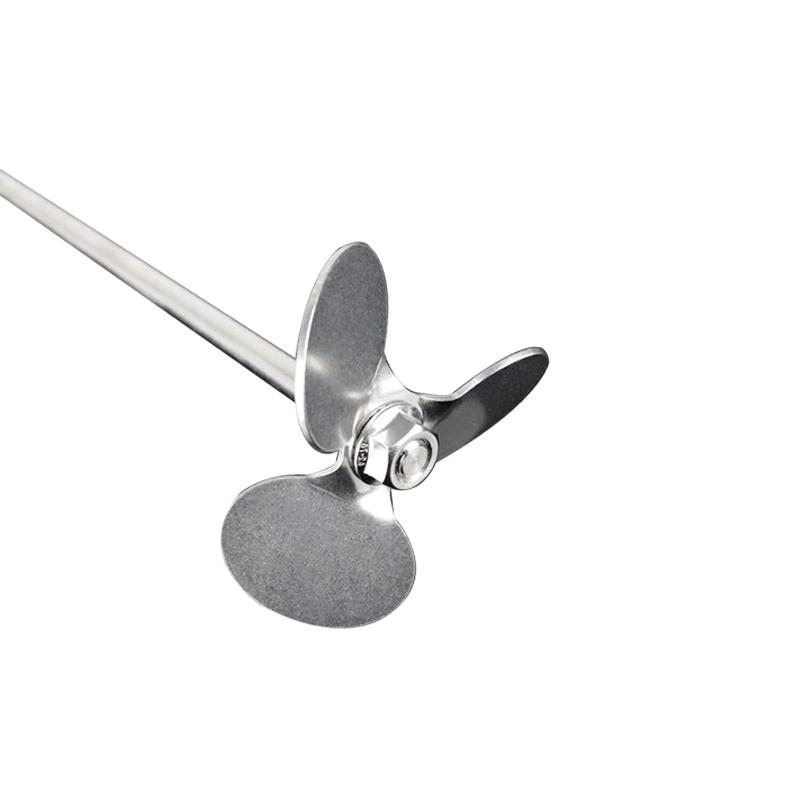

HUXI 20030088 Three Blades Impeller Stainless Steel Medium and High Speed Impeller Width 70mm

Name: HUXI 20030088 Three Blades Impeller Stainless Steel Medium and High Speed Impeller Width 70mm
Brand: HuXi
SKU: NB036520
Price: 101.0 USD
Availability: InStock

$ 101.00Ex works

The stainless steel blade is 70mm wide and 1.8mm high, the Rod diaMeter is 6mm and the length is 350mm. Medium and high speed stirring pRoduces axial flow and local shear force, which is suitable for a variety of mixing needs.

Model

20030088

Get Quote

Category : Laboratory Mixer

Brand : HuXi

SKU : NB036520

Service :The delivery and service By NBCLab.Com

Overview

HUXI Three Blade Impeller (Model: 20030088) is a stainless steel stirring element with a blade width of 70mm and a height of 1.8mm, a rod diameter of 6mm and a rod length of 300mm. The product is designed for medium to high speed stirring, resulting in top to bottom axial flow of the mixed medium and local shear force.

Features

1. Stainless steel, corrosion resistant and durable 2. Suitable for medium and high speed, high mixing efficiency 3. Generate axial flow and local shear force 4. Pitch blade size is accurate, rod length specifications are diverse

Principle

The three-blade Impeller makes the mixing medium flow from top to bottom through swirl/spin, forming a local shear force during the flow process, so as to achieve an effective mixing effect.

Applications

Mixing of medium and low viscosity liquids suitable for medium and high speed stirring

Steps

1. Select the appropriate Impeller specification according to the container size 2. Install the Impeller on the mixing equipment 3, adjust the stirring speed to medium and high speed range 4. Start the equipment for mixing operation 5. Turn off the device and clean the Impeller after completion

Notice

• Please choose the appropriate stirring speed according to the liquid viscosity • Regularly check Impeller for abrasion or deformation • It should be cleaned and maintained in time after use • Make sure the Impeller is firmly installed before starting the device

Blade width
70mm
blade height
1.8mm
rod diameter
6mm
rod length
350mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
