Overview

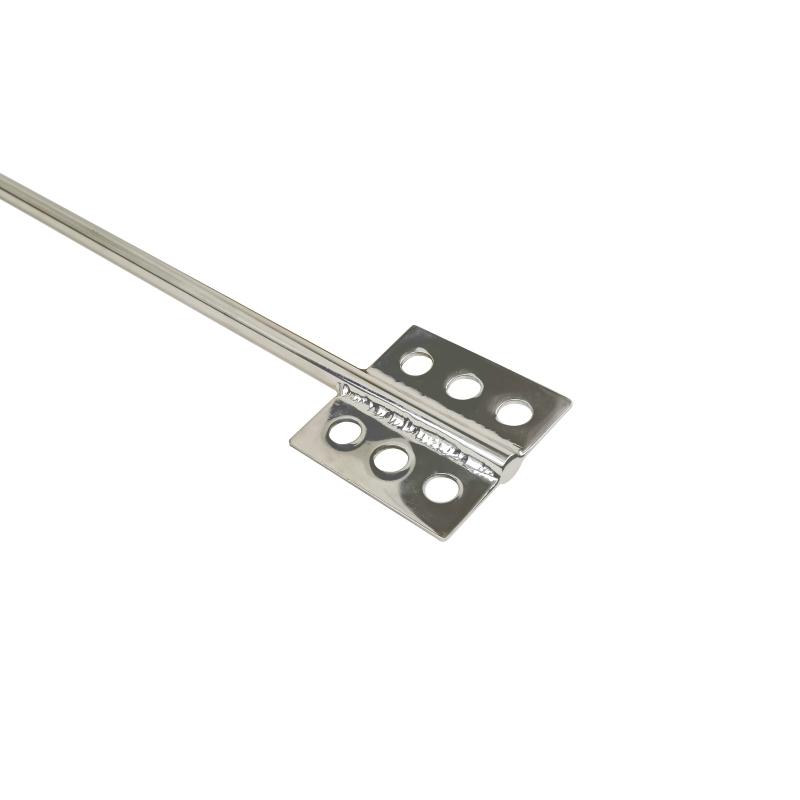

HUXI Round Six Hole Fan Impeller (Model: 20030095) is a stainless steel Impeller with gentle stirring performance, suitable for medium and low speed use. The blade diameter is 100mm, the rod diameter is 10mm, and the rod length is 350mm, which is suitable for medium that requires gentle stirring.
Features
1. Mild mixing performance, suitable for medium and low speed use
2. Stainless steel, durable and easy to clean
3. Paddle diameter 100mm, rod diameter 10mm, rod length 350mm, size standard
4. Produce tangential flow, small turbulence and good heat exchange performance
Principle
The circular six-hole fan-type Impeller produces tangential flow during stirring, with small turbulence and good heat exchange performance. Its design ensures that the stirring process is mild, suitable for medium and low speed operation, and avoids severe disturbance to the medium.
Applications
Medium, medium and low speed stirring application for medium that requires gentle stirring
Steps
1. Choose the appropriate Impeller model according to the container size
2. Install the Impeller on the mixing equipment to ensure that the rod diameter of 10mm matches the equipment
3. Set stirring speed to medium and low speed range
4. Start the equipment for mixing operation
5. After mixing, turn off the equipment and clean the Impeller
Notice
• Only suitable for medium and low speed mixing, avoid high speed use to prevent damage
• Make sure the Impeller matches the container size to prevent collisions
• Clean the stainless steel surface in time after use to maintain hygiene
• Check whether the rod length of 350mm is suitable for the depth of the container to avoid improper operation
