Overview

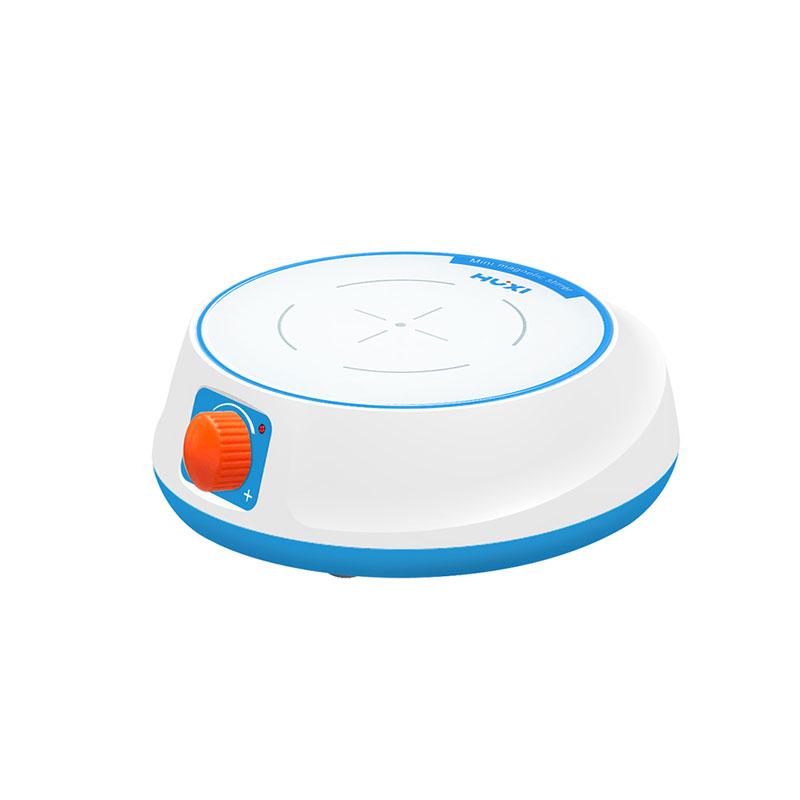

The HUXI HMS-MT Mini Magnetic Stirrer is a compact, portable laboratory device for stirring or simultaneous heating of liquids or solid-liquid mixtures with low viscosity consistency. The heating model can be combined with the heating function to heat the sample according to the experimental requirements to ensure that the liquid mixture meets the experimental requirements.
Features
1. Mini and compact in appearance, easy to carry and easy to operate;
2. Small size, light weight, low noise, maintenance-free, smooth operation;
3. A variety of models are available to meet different experimental requirements.
4. The whole machine shell is made of ABS material, which has the characteristics of heat resistance, low temperature resistance, corrosion resistance, no odor, and excellent insulation performance;
5. Adopt knob key adjustment mode, Rotation speed adjustable;
6. Max. stirring Capacity 2L, stirring speed 60~ 2400rpm, stepless speed regulation;
7. The size of the working plate is φ 136mm, and the size of the stirrer is 20-30mm;
8. DC Motor Drive, Input Power 6W, Output Power 3W.
Principle
The Magnetic Stirrer drives the internal magnet swirl/spin through a DC motor to generate a swirl/spin magnetic field, which drives the stirrer placed in the container to rotate synchronously, so as to realize the stirring and mixing of liquids. The heating model also has a heating function, which can heat the sample and improve the mixing effect.
Applications
Mainly used for stirring or simultaneous heating stirring of low viscosity liquid or solid-liquid mixtures
Steps
1. Put the stirrer into the liquid container to be stirred;
2. Place the container on the work plate.
3. Turn on the power supply and turn on the device switch;
4. Adjust the required stirring speed through the knob;
5. If heating is required, start the heating function and set the temperature;
6. Turn off the power after use, remove the stirrer and clean the equipment.
Notice
• Only for low viscosity liquids or solid-liquid mixtures;
• Max. Capacity of stirring not more than 2L;
• Ambient Temperature should be kept in the range of -5~ 40 ℃;
• relative humidity not exceeding 80%;
• Power supply voltage within 100~ 240V range before use;
• Rated Frequency is 50/60Hz;
• The size of the stirrer should be between 20 and 30mm.
• Regularly clean the work plate and stirrer;
• Avoid use in humid or corrosive environments;
• Turn off the power supply in time after use.
