Overview

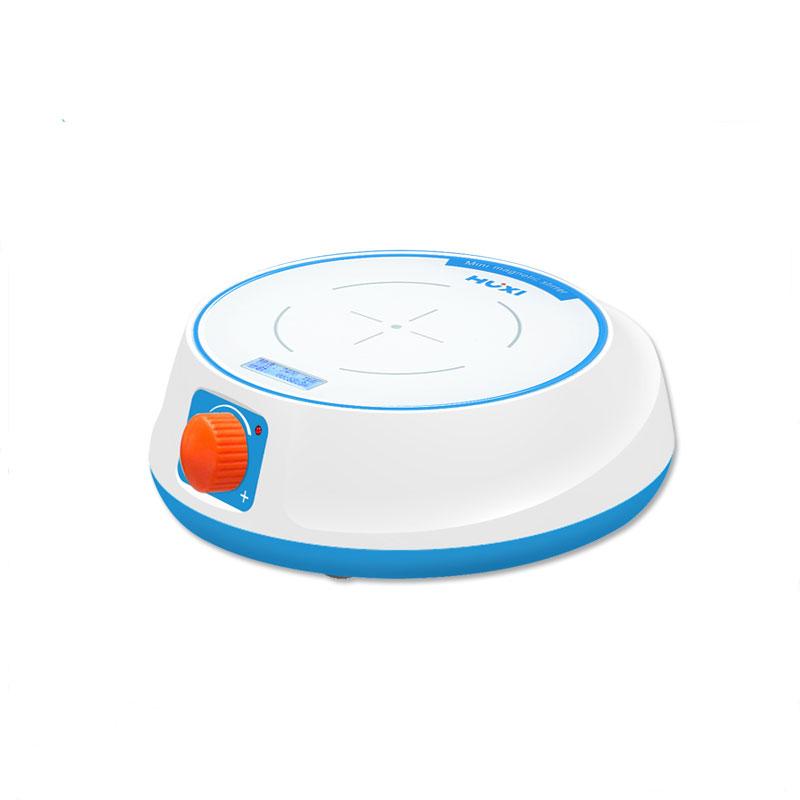

The HUXI HMS-MS Mini Magnetic Stirrer is a compact, easy-to-operate laboratory device for stirring or simultaneous heating of liquids or solid-liquid mixtures with low viscosity consistency. The heating model can be combined with the heating function to heat the sample according to the experimental requirements to ensure that the liquid mixture meets the experimental requirements.
Features
1. Mini and compact shape, easy to carry and easy to operate
2. Small size, light weight, low noise, maintenance-free, smooth operation
3. A variety of models are available to meet different experimental needs
4. The shell of the whole machine is made of ABS material, which has the characteristics of heat resistance, low temperature resistance, corrosion resistance, no odor, and excellent insulation performance
5. Adopt knob key adjustment mode, Rotation speed adjustable
6. The working plate uses ultra-white tempered Glass technology, which has excellent bearing capacity, impact resistance and strength, and the performance of rapid cooling and rapid heating is 2 to 3 times higher than that of ordinary Glass
Principle
The Magnetic Stirrer drives the magnetic rotor swirl/spin through a brushless DC motor, generating a swirl/spin magnetic field to drive the stirrer to swirl/spin in the container to achieve liquid mixing and stirring. The heating model also has a heating function, which can heat the sample according to the experimental needs.
Applications
Laboratory liquid stirring, solid-liquid mixture stirring, heating stirring experiment
Steps
1. Place the Stirrer on a smooth work surface
2. Connect the Power Adapter
3. Place the container containing the sample on the work plate
Step 4 Put the appropriate stirrer into the container
5. Adjust the desired stirring speed by knob
6. Start the equipment and start the mixing operation
Notice
• Before use, make sure that the Ambient Temperature is within the range of 5~ 40 ℃
• The relative humidity should not exceed 80%
• Max. Capacity of stirring not more than 2L
• Please use a 20-35mm size stirrer
• Avoid placing containers that exceed their carrying capacity on the work tray
• Please clean the surface of the work plate in time after use
