Overview

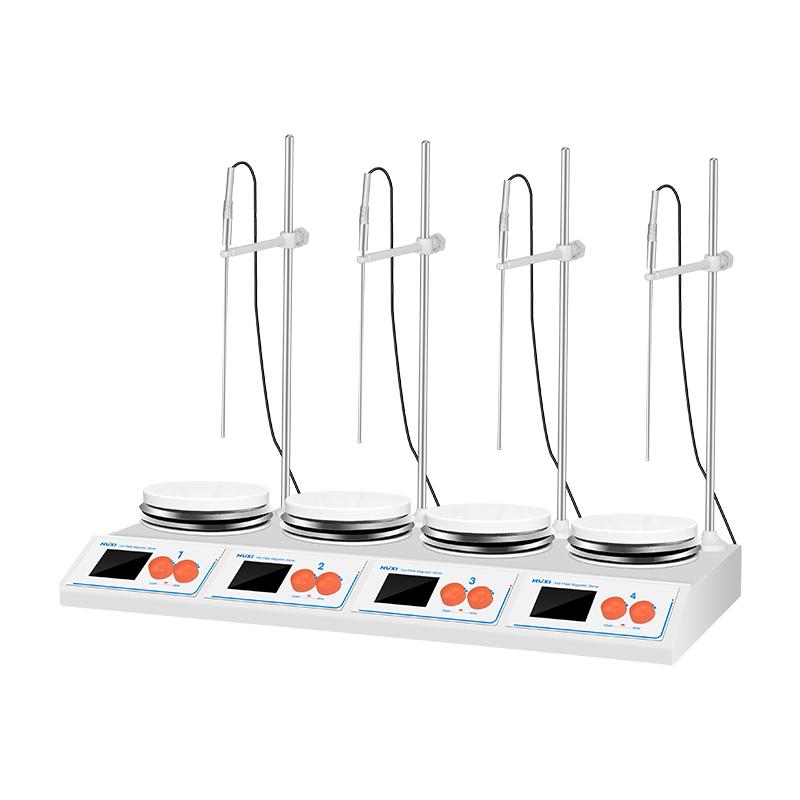

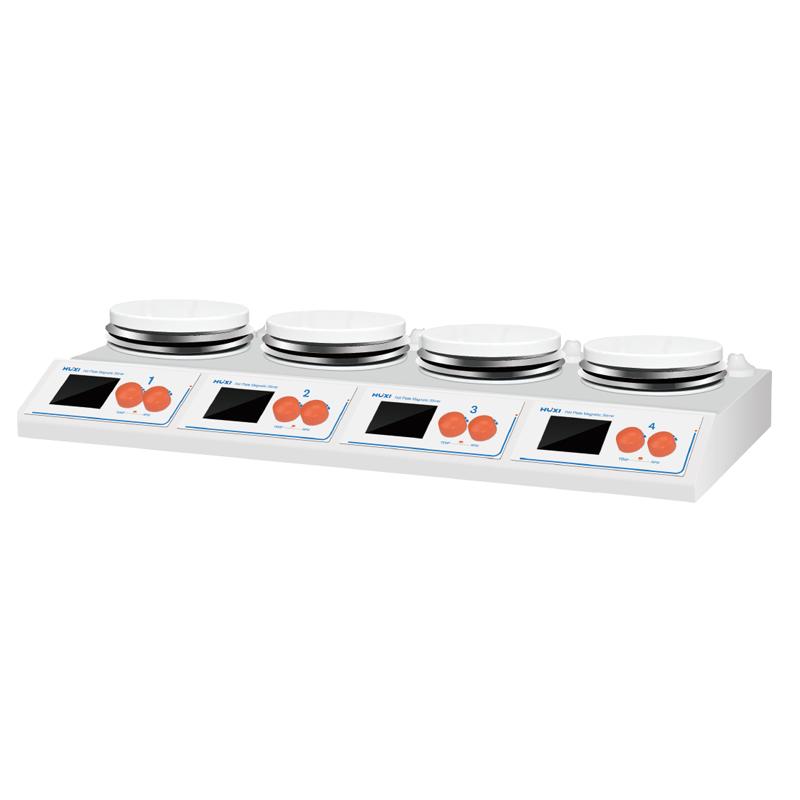

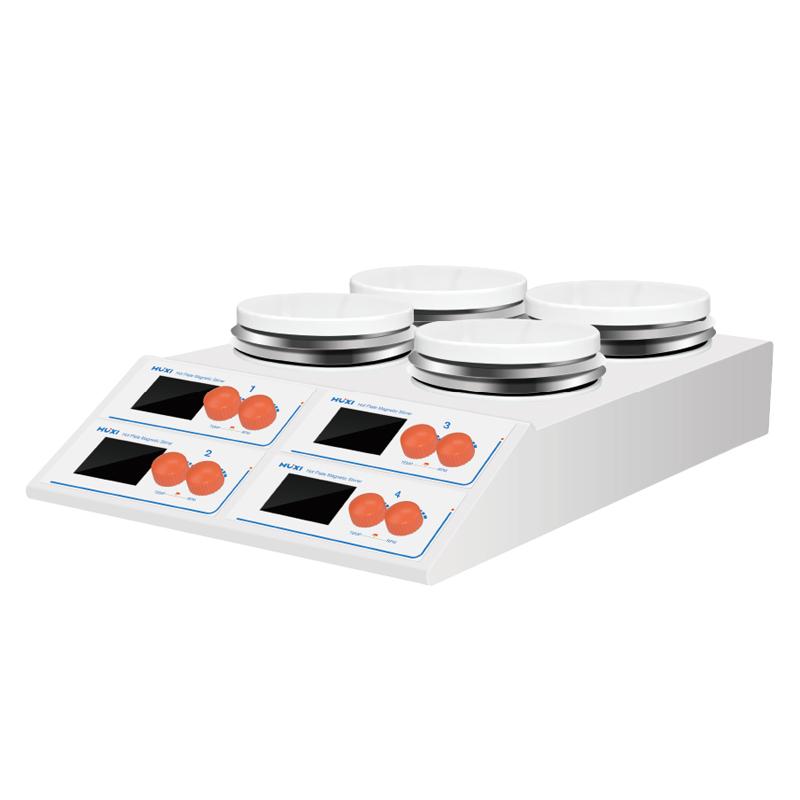

HUXI HMS-4G heating multi-station Magnetic Stirrer has novel and beautiful appearance design, fast heating, large heating area and uniform heating; it is widely used in **, petroleum, chemical, environmental protection and other fields, and is a good helper in experiments such as major Chinese science colleges, R & D institutions, Inspection & Quarantine, etc.
Features
1. DC brushless motor, stable performance, maintenance-free;
2. Low noise, long lifespan, stable low speed, strong high speed;
3. < 30 ° bevel control panel is suitable for sitting and standing viewing angles;
4. PT100 temperature sensor to achieve +/- 1 temperature accuracy control;
5. Swirl/spin adjustment switch button, waterproof design, high safety factor;
6. Each station is independently controlled, allowing for the mixing of up to 4 different samples.
7. Matt Teflon coating heating surface corrosion resistance, surface temperature up to 320 ℃;
8. LCD digital display function, display heating temperature, stirring speed, convenient experimental operation;
9. Temperature control using PID control algorithm, self-tuning function, Measurement accuracy is high, punching temperature is small;
10. The shell adopts metal plate stamping and injection molding shell, which is resistant to high temperature, anti-corrosion and has good insulation performance.
Principle
The device drives the magnetic stirrer swirl/spin through the DC brushless motor to achieve sample stirring; the PT100 temperature sensor and PID control algorithm are used for precise temperature control, and uniform heating is provided through the matte Teflon coating heating surface.
Applications
**, Petroleum, Chemical Industry, Environmental Protection, Chinese Science Colleges, R & D institutions, Inspection & Quarantine
Steps
1. Connect the device to an AC220V power supply.
2. Place the stirred sample in the heating area;
3. Set stirring speed and heating temperature by swirl/spin adjustment switch button;
4. Monitor temperature and Rotation speed parameters through LCD display;
5. Each station can operate independently, handling up to four samples simultaneously.
Notice
• Power supply voltage AC220V 50/60Hz before use;
• Operating Ambient Temperature should be kept within the range of 5~ 40 ℃;
• environment relative humidity shall not exceed 80%;
• Max. stirring Capacity of single station is 10L;
• The heating surface temperature can reach up to 320 ° C, pay attention to anti-scalding during operation;
• The equipment shell is made of metal injection molding material, which has high temperature resistance and anti-corrosion characteristics.
