Overview

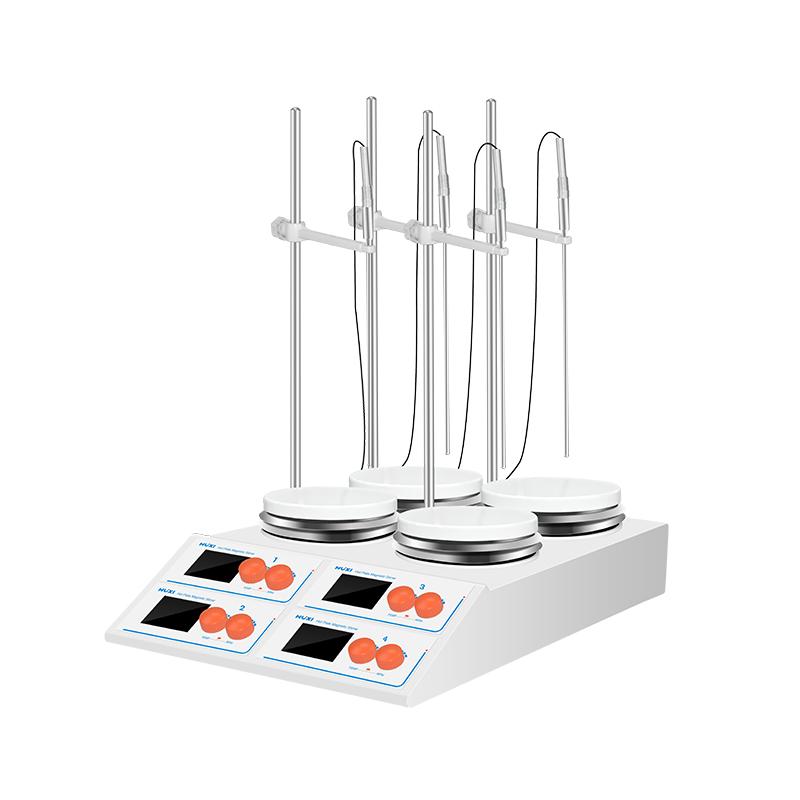

HUXI HMS-4SG heating type multi-station Magnetic Stirrer has novel and beautiful appearance design, fast heating, large heating area and uniform heating. It is widely used in **, petroleum, chemical industry, environmental protection and other fields. It is a good helper in experiments such as major Chinese science colleges, R & D institutions, Inspection & Quarantine, etc.
Features
1. DC brushless motor, stable performance, maintenance-free
2. Low noise, long lifespan, stable low speed, strong high speed
3. < 30 ° bevel control panel suitable for sitting and standing viewing angles
4. PT100 temperature sensor for +/- 1 temperature accuracy control
5.Swirl/spin adjustment switch button, waterproof design, high safety factor
6. Each station is independently controlled, allowing up to 4 stations to mix different samples
7. Matt Teflon coating heating surface corrosion resistance, surface temperature up to 320 ℃
8. LCD digital display function, display heating temperature, stirring speed, convenient experimental operation
9. Temperature control adopts PID control algorithm, self-tuning function, with high Measurement accuracy and small temperature punching
10. The shell adopts metal plate stamping and injection molding shell, which is resistant to high temperature, anti-corrosion and has good insulation performance
Principle
The Magnetic Stirrer drives the magnetic stirrer swirl/spin through a DC brushless motor to achieve sample stirring; at the same time, the PT100 temperature sensor and PID control algorithm are used for precise temperature control, and uniform heating is provided through the matte Teflon coating heating surface.
Applications
**, Petroleum, Chemical Industry, Environmental Protection, Chinese Science Colleges, R & D institutions, Inspection & Quarantine
Steps
1. Connect the device to an AC220V power supply
2. Place the sample container in the heating area
3. Select the station as needed and set the stirring speed and temperature independently
4. Adjust parameters through swirl/spin adjustment switch button
5. Observe the LCD display to monitor temperature and Rotation speed
6. Turn off the device after the experiment is completed
Notice
• Power supply voltage AC220V 50/60Hz before use
• Operating Ambient Temperature should be within the range of 5~ 40 ℃
• relative humidity not more than 80%
• Avoid heating surface exceeding 320 ℃ limit temperature
• Note that the stirrer matches the container, single station Max. Stirring Capacity 10L
• Regularly check the insulation performance of equipment
• Avoid corrosion chemicals when cleaning
