Overview

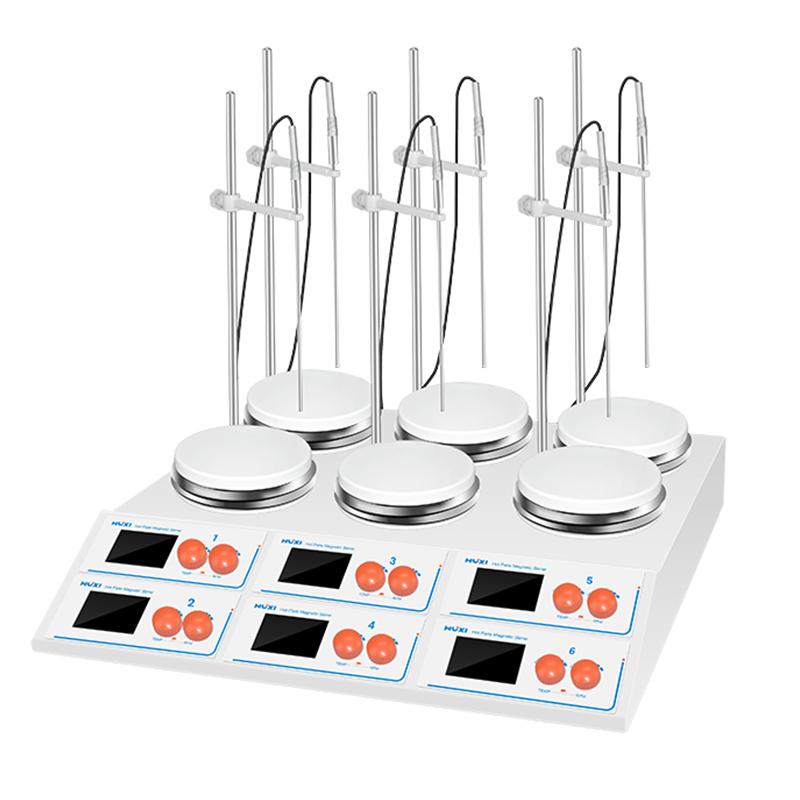

HUXI HMS-6SG heating multi-station Magnetic Stirrer has novel and beautiful appearance design, fast heating, large heating area and uniform heating; it is widely used in **, petroleum, chemical, environmental protection and other fields, and is a good helper in experiments such as major Chinese science colleges, R & D institutions, Inspection & Quarantine, etc.
Features
1. DC brushless motor, stable performance, maintenance-free;
2. Low noise, long lifespan, stable low speed, strong high speed;
3. < 30 ° bevel control panel is suitable for sitting and standing viewing angles;
4. PT100 temperature sensor to achieve +/- 1 temperature accuracy control;
5. Swirl/spin adjustment switch button, waterproof design, high safety factor;
6. Each station is independently controlled, allowing for the mixing of up to 6 different samples.
7. Matt Teflon coating heating surface corrosion resistance, surface temperature up to 320 ℃;
8. LCD digital display function, display heating temperature, stirring speed, convenient experimental operation;
9. Temperature control using PID control algorithm, self-tuning function, Measurement accuracy is high, punching temperature is small;
10. The shell adopts metal plate stamping and injection molding shell, which is resistant to high temperature, anti-corrosion and has good insulation performance.
Principle
The product drives the magnetic stirrer swirl/spin through the DC brushless motor to achieve sample stirring; at the same time, the PT100 temperature sensor and PID control algorithm are used for precise temperature control, and the heating surface is made of matte Teflon coating to ensure uniform heating and corrosion resistance.
Applications
**, Petroleum, Chemical Industry, Environmental Protection, Chinese Science Colleges, R & D institutions, Inspection & Quarantine
Steps
1. Connect the device to an AC220V power supply.
2. Place the sample container in the heating area and add the stirrer;
3. Set stirring speed and heating temperature by swirl/spin adjustment switch button;
4. Observe the LCD display to confirm the temperature and Rotation speed parameters;
5. Start the corresponding station for independent operation;
6. After the experiment is completed, turn off the device and disconnect the power supply.
Notice
• Power supply voltage AC220V before use;
• During operation, pay attention to the heating surface temperature up to 320 ° C to avoid burns;
• Equipment should be used at Permissible Ambient Temperature 5~ 40 ℃ and relative humidity below 80%;
• Max. stirring Capacity of each station is 10L, do not overload;
• Regularly check the condition of the stirrer and heating surface to ensure no corrosion or damage;
• Keep the equipment clean to avoid liquid infiltration into the swirl/spin button affecting the waterproof performance.
