Overview

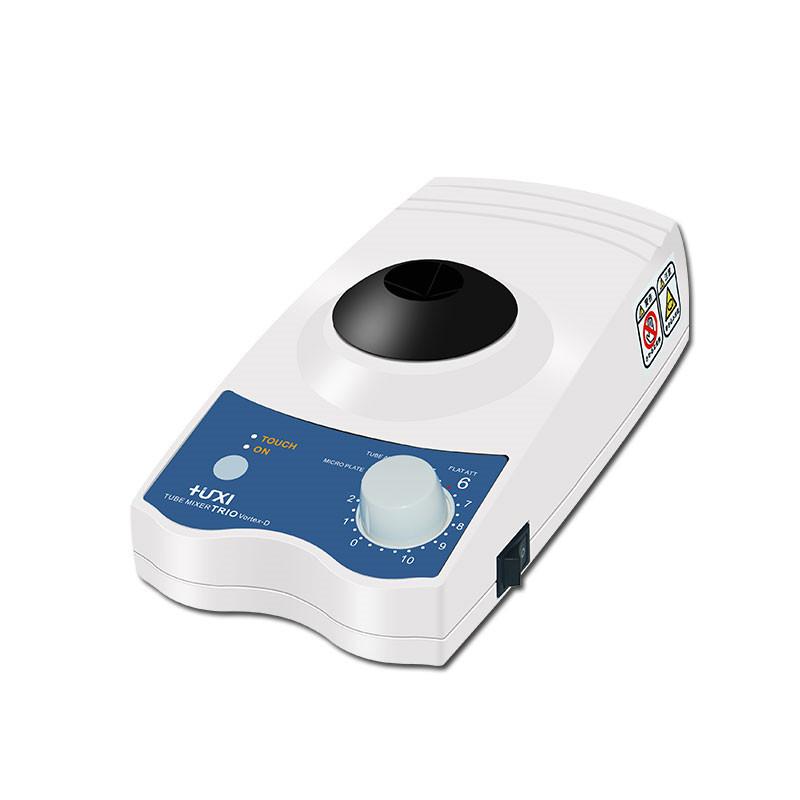

The HUXI Vortex-D (Option 1) Mixer is a multi-purpose vortex mixer that combines magnetic stirring, vortex mixing, and microplate oscillation. It is beautiful, easy to carry, and powerful, making it suitable for a variety of laboratory mixing needs.
Features
1. Two operation modes of point-action and continuous operation can be selected, and the switching is convenient;
2. Install the Stirrer base, which can be used as a Stirrer, with a maximum stirring capacity of 2000ml (maximum Rotation speed 1500rpm);
3. Install the disc, with the testtube adapter, and mix different centrifugal testtubes with vortices;
4. Install the microplate adapter, which can vortex and mix the microplate.
Principle
The Mixer uses a microcomputer controller for swirl/spin control and is driven by a high Rotation speed DC brushed motor to achieve vortex mixing, magnetic stirring and microplate oscillation functions. The user can adjust the Rotation speed through the knob and select the point or continuous operation mode.
Applications
Laboratory mixing, Sample Handling, Centrifugal testtube mixing, Microplate oscillation
Steps
1. Select and install the corresponding accessories (e.g. Stirrer base, disc or microplate adapter) as required.
2. Connect the Power Adapter;
3. Rotation speed to the required range through the knob;
4. Select point or continuous operation mode;
5. Start the device for mixing operation.
Notice
- Power supply voltage meets AC100-240V, 50-60HZ requirements before use;
- Install the accessories firmly to avoid loosening during operation.
- Slow swirl/spin knob during speed regulation to prevent sudden changes in Rotation speed;
- Device weight is 2.1kg, pay attention to safety when handling;
Regularly check the status of the motor and accessories to ensure normal operation.
