Overview

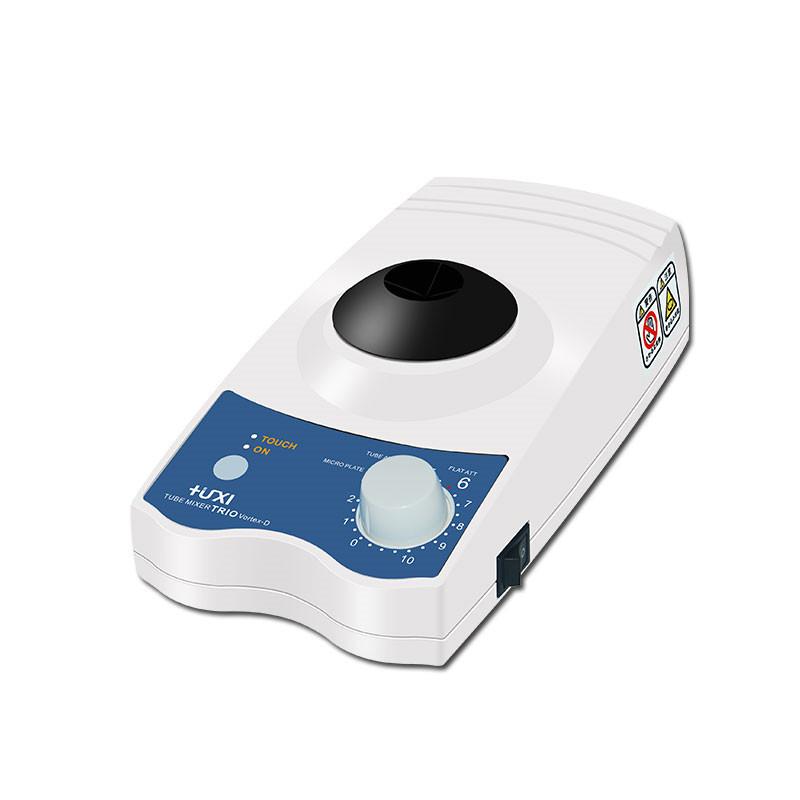

The HUXI Vortex-DS (optional 2) Mixer is a multi-functional vortex mixing device that integrates magnetic stirring, vortex mixing and microplate oscillation functions. It is beautiful in appearance and easy to carry.
Features
1. Provide two modes of point-action and continuous operation, easy to switch.
2. Equipped with Stirrer base, it can be used as Stirrer, with a maximum stirring capacity of 2000ml and a maximum Rotation speed of 1500rpm.
3. Install disc and testtube adapters to support vortex mixing of different centrifugal testtubes.
4. Install the microplate adapter, which can vortex and mix the microplate.
Principle
The Mixer uses a microcomputer controller and a DC brush motor to drive, and adjusts the Rotation speed (range 200~ 2500rpm) through the knob to achieve a mixed action with a vibration range of 4.5mm. It supports automatic touch start and continuous operation switching.
Applications
The multi-purpose vortex mixer is powerful and suitable for applications such as magnetic stirring, vortex mixing, and microplate oscillation.
Steps
1. Select point-operated or continuous operation mode.
2. Install accessories as required: Stirrer base for stirring, disc and testtube adapter for testtube mixing, microplate adapter for microplate mixing.
3. Use the knob to adjust the Rotation speed to the desired range.
4. Start the device operation by touching.
Notice
• Power supply voltage in the AC100-240V, 50-60HZ range and use a dedicated AC adapter.
• Device weight is 2.1kg, pay attention to safety when handling.
The box is made of die-cast aluminum alloy to avoid severe impact to protect the equipment.
• Standard accessories include vortex heads, microplates, magnetic frames, universal discs, flat spacers, and adapters. Check for integrity before use.
