Overview

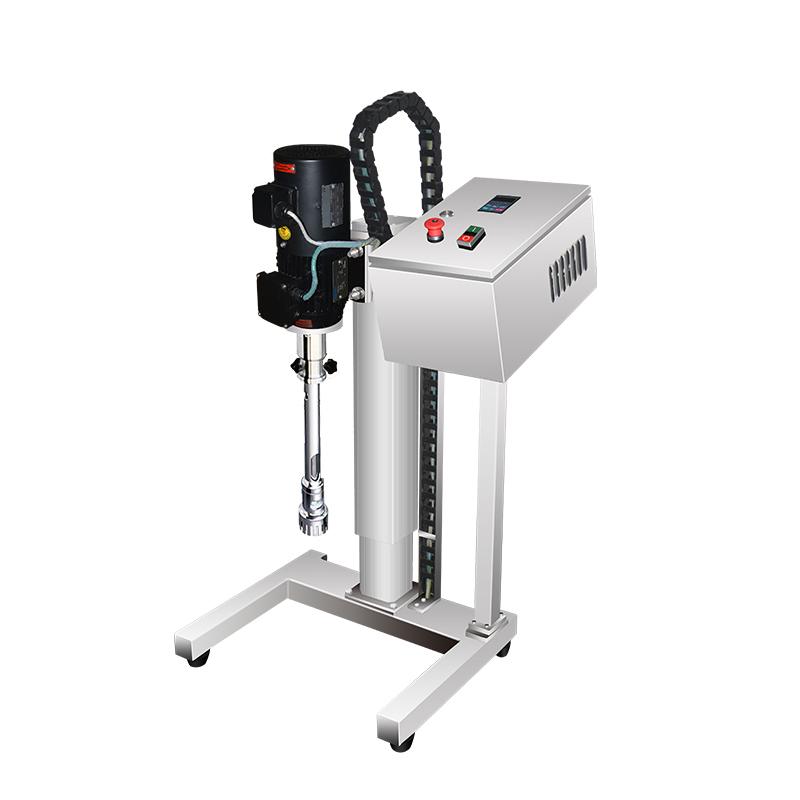

Shanghai HUXI (HUXI) pilot-scale high-shear dispersion Mulser is specially designed for pilot-scale, simulated production and small batch production in factories. The standard working head adopts a claw structure, which can freely replace the suitable stator and rotor for different materials and process requirements. Processing capacity reaches 30L (H2O).
Features
1. Laboratory pilot equipment, Processing capacity 30L (H2O)
2. Only need to replace the working head, the equipment can achieve strong stirring, dispersion, homogenization, emulsification, shut-off mixing, solid-liquid dispersion mixing, grinding and other functions
3. Equipment is equipped with high-speed variable frequency motor, variable frequency start when starting, protection equipment, Rotation speed adjustable and displayed
4. Continuous Operating Time up to 8 hours
5. The dispersion head adopts a quick connection method, which is easy to disassemble and replace
6. Modular design of equipment, flexible combination
Principle
The equipment drives the swirl/spin of the claw structure working head through a high-speed variable frequency motor to generate high shear force and realize the dispersion, emulsification and homogenization of materials. The stator and rotor can be replaced for different materials to meet various process requirements.
Applications
Pilot test, simulated production, factory small batch production
Standards
Motor protection class: IP54
Steps
1. Connect the power supply (220V 50HZ)
2. Select and install the appropriate working head as required
3. Set the required Rotation speed by frequency conversion (50~ 6000rpm)
4. Start the device for batch processing
5. Use the electric lift function to adjust the working head position (Lift Travel 500mm)
6. Up to 8 hours of continuous work
Notice
• Permissible Ambient Temperature: 5~ 40 ℃
• Allowable relative humidity: 80%
• Maximum processing viscosity: 8000CP
• Working head viscosity: 6000mpas
Equipment is equipped with overload protection function
• Contact material is SS316L, bushing material is PTFE
• Encasement method is wooden box
