Overview

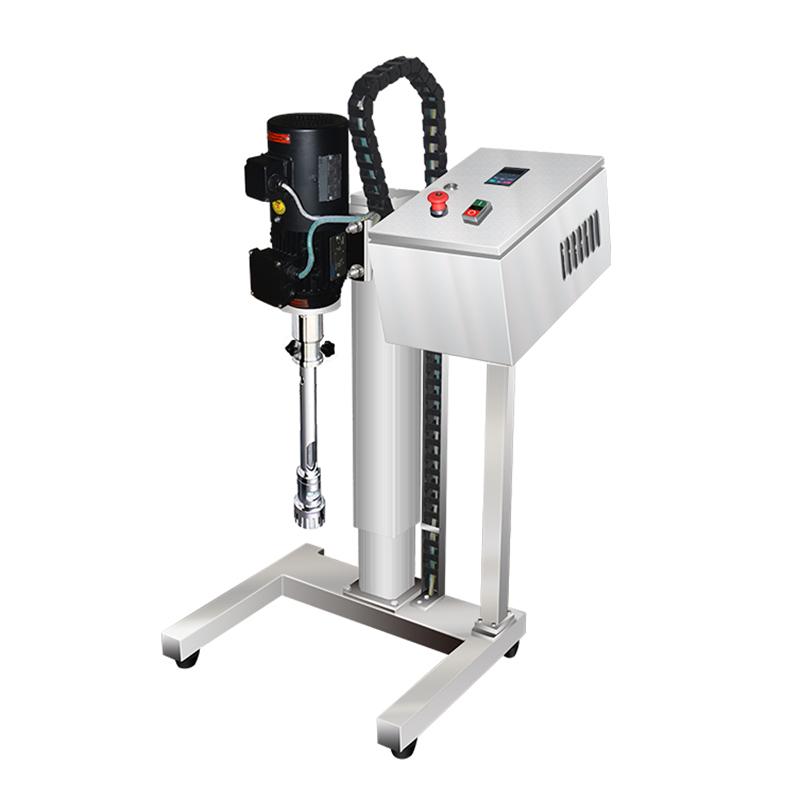

Shanghai HUXI (HUXI) pilot-scale high shear dispersion Mulser HR-60Z/60G (electric lift) is specially designed for pilot-scale, simulated production and small batch production in factories. The standard working head adopts claw structure, which can be freely replaced with suitable stator and rotor for different material and process requirements. Processing capacity is 30L (H2O).
Features
1. Laboratory pilot equipment, Processing capacity 30L (H2O)
2. Only need to replace the working head, the equipment can achieve strong stirring, dispersion, homogenization, emulsification, shut-off mixing, solid-liquid dispersion mixing, grinding and other functions
3. Equipment is equipped with high-speed variable frequency motor, variable frequency start when starting, protection equipment, Rotation speed adjustable and displayed
4. Continuous Operating Time up to 8 hours
5. The dispersion head adopts a quick connection method, which is easy to disassemble and replace
6. Modular design of equipment, flexible combination
Principle
The equipment drives the claw structure working head swirl/spin through a high-speed variable frequency motor to generate high shear force and realize the functions of material dispersion, emulsification and mixing. The frequency conversion speed regulation technology ensures a smooth start, Rotation speed is adjustable in the range of 50~ 6000rpm, and the digital display real-time Rotation speed.
Applications
Pilot test, simulated production, factory small batch production
Steps
1. Select and install the appropriate working head as required
2. Connect the power supply and ensure that the voltage is 220V 50HZ.
3. Start the device through the frequency converter and gradually adjust to the required Rotation speed
4. Carry out material handling, Continuous Operating Time does not exceed 8 hours
5. After the processing is completed, turn off the equipment and remove the working head for cleaning
Notice
● Permissible Ambient Temperature 5~ 40 ℃, relative humidity does not exceed 80%
● Maximum processing viscosity is 8000CP, working head viscosity is 6000mpas
The equipment has an overload protection function to avoid overload during use
Regularly check the connection status of the dispersion head to ensure reliable fast connection
● Encasement method is wooden box, pay attention to moisture and shock when transporting and storing
