Overview

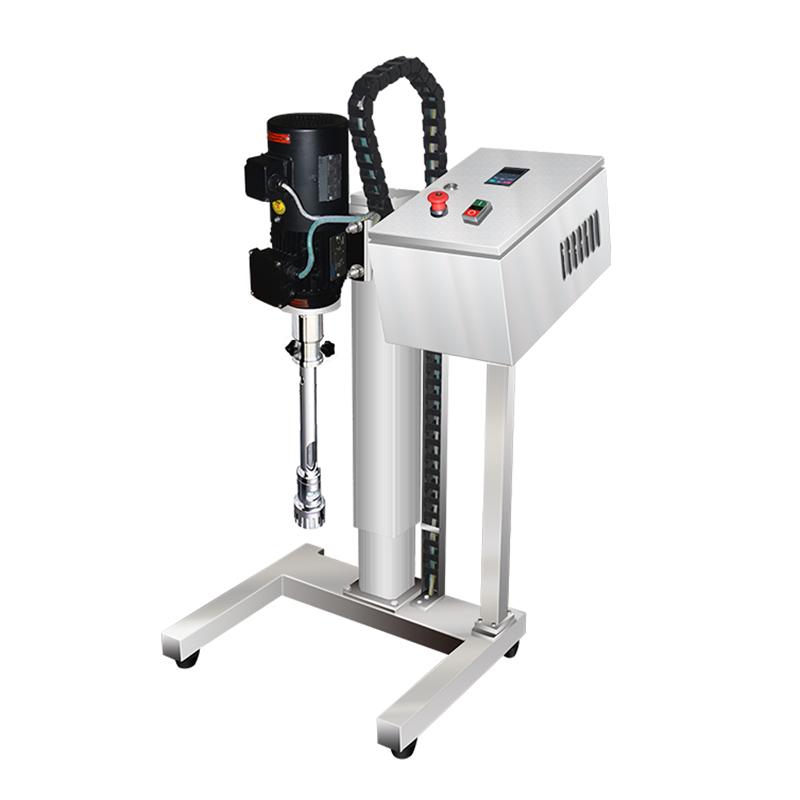

HUXI HR-60Z/60JX (Electric Lifting) Pilot High Shear Dispersion Mulser is designed for pilot, simulation production and small batch production in factories. The working head is matched by a high-speed swirl/spin rotor and a precise stator working chamber. It relies on high-line speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, crushed and mixed in one go, and finally a stable and qualified product is obtained.
Features
1. A variety of working heads are available to meet different experimental needs
2. Rotation speed adopts frequency conversion speed regulation and digital Display mode, the minimum can reach 50rpm
3. Electro-hydraulic lifting method, easy to operate and easy to use
4. The high-speed variable frequency motor realizes the variable frequency start protection function, meeting the requirements of continuous operation in the experiment
5. The instrument is equipped with a red mushroom head emergency stop button. When the machine is in a faulty state, use this button to cut off the power supply, so that the equipment stops running immediately, achieving the role of protecting personal and equipment safety
6. Wide range of applications: pipe fine chemicals, Petrochemicals, pesticides and fertilizers, biology, Household chemicals, food industry and other fields
Principle
The working head is composed of a high-speed swirl/spin rotor and a precise stator working chamber, which relies on high linear speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, and crushed.
Applications
Fine Chemicals, Petrochemicals, Pesticides and Fertilizers, Biology, Household chemicals, Food Industry
Steps
1. Select the appropriate working head as required
2. Set frequency conversion speed regulation parameters, monitor Rotation speed through digital display
3. Use the electro-hydraulic lifting function to adjust the working head position
4. Start the device for decentralized emulsification
5. In case of failure, immediately press the red mushroom head emergency stop button to cut off the power supply
Notice
• Power supply voltage 220V 50HZ before operation
• Processing capacity is controlled within the range of 5~ 30L
• Material viscosity must not exceed 8000CP
• Speed range is maintained at 50~ 6000rpm
• Ambient Temperature should be controlled between 5 and 40 ℃
• The relative humidity should not exceed 80%
• Press the emergency stop button immediately in case of failure during use
• Ensure that the equipment runs in batch processing mode
